HisenseDigital SignageSKU 49WF45H

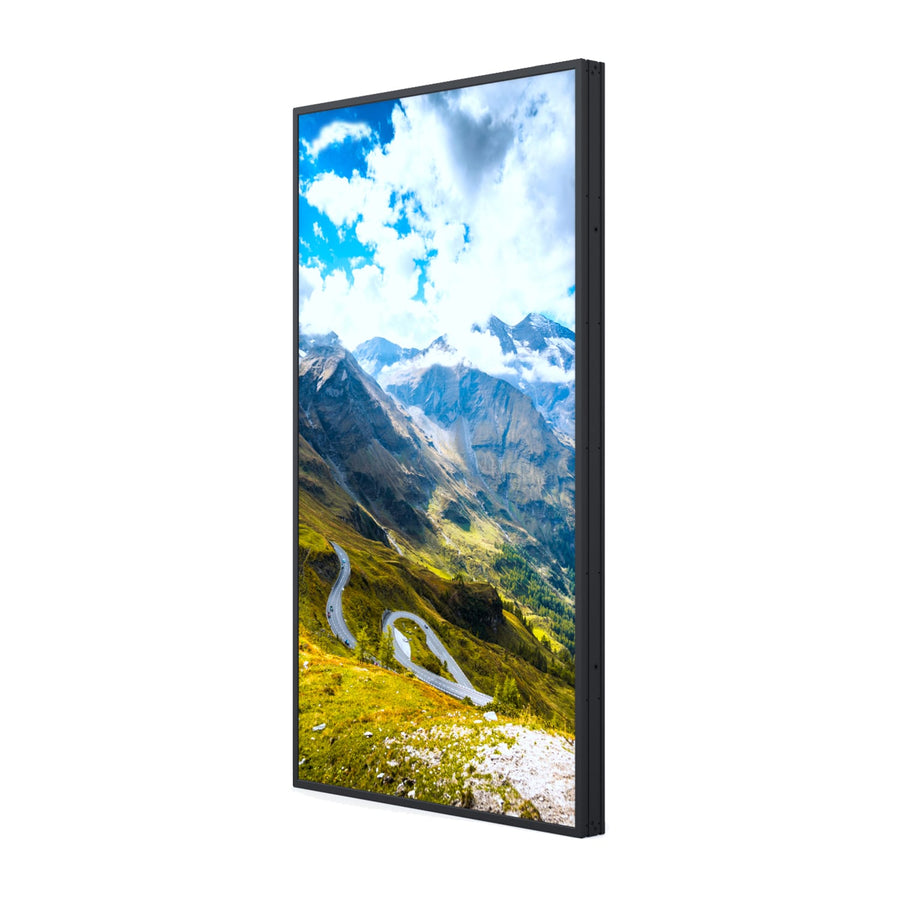

Hisense WF45H 49-inch Window-Facing High Brightness Display – 49WF45H
The Hisense 49WF45H is a 49-inch window-facing digital signage display rated at 4500 nits for ambient and outdoor lighting conditions. It offers Full HD resolution, smart fan control and 24/7 operation on Android 9.0. Procure.ae supplies the Hisense 49WF45H in the UAE, subject to current availability.
The 49WF45H is a 49-inch Full HD (1920 x 1080) window-facing display rated at 4500 nits, with a 1300:1 contrast ratio and up to 450,000:1 dynamic contrast. Its 178-degree viewing angles and 8 ms response time suit moving content. It runs Android 9.0 on an ARM quad-core processor with 2 GB DDR memory and 16 GB eMMC storage. Smart backlight, smart temperature and smart fan controls manage the output and cooling inside the enclosure.
The 49WF45H is intended for indoor window-facing placement, and the manufacturer rates it for ambient and outdoor lighting conditions. Its 4500-nit output is higher than the 49WF25E (2500 nits) and the 49WF35M (3500 nits). The model uses smart fan control rather than a fanless design, and it has a 10 mm bezel and a 300 x 250 mm VESA pattern. Connectivity is Wi-Fi or LAN with optional 3G/4G, and the built-in speaker supports line-out and Bluetooth speakers.
Screen Size
49 inch
Resolution
1920 x 1080 (Full HD)
Brightness
4500 nits
Type
Window-Facing High Brightness Display
- 4500-nit brightness
- Full HD 16:9 panel
- Smart fan control
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4500-nit brightness
Rated at 4500 nits for ambient and outdoor lighting conditions.
02
Full HD 16:9 panel
1920 x 1080 resolution with 178-degree viewing angles.
03
Smart fan control
Fan operation is managed by smart fan control and smart temperature control.
04
Auto brightness control
A light sensor adjusts brightness, with smart backlight control included.
05
24/7 operation
Designed for continuous operation with overheating protection.
06
Built-in speaker
Built-in speaker, line-out support and Bluetooth speaker support.
07
Optional remote monitoring
CetusMSC cloud monitoring is available as an option.
Specifications
29 specificationsGeneral
Key Features4500-nit brightness, Full HD, 24/7 operation, smart fan and temperature control, light-sensor auto brightness, built-in speaker, optional CetusMSC cloud monitoring
Model49WF45H
TypeWindow-Facing High Brightness Display
What's in the BoxPower cord, IR receiver, remote control, AAA batteries × 2, Wi-Fi antenna, lifting rings (M6) × 2, filler pads (M6) × 2, spring pads (M6) × 2, user manual (electronic)
Display
Aspect Ratio16:9
Bezel Size10 mm (top, bottom, left, right)
Brightness4500 nits
Contrast Ratio1300:1 (dynamic up to 450,000:1)
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size49 inch
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemAndroid 9.0
ProcessorARM quad-core Cortex-A53, 1.5 GHz
RAM2 GB
Storage16 GB eMMC
Storage Conditions-10 to 60 °C; 10% to 80% humidity
Audio
AudioBuilt-in speaker, line-out, Bluetooth speaker support
Connectivity
ConnectivityWi-Fi or LAN; 3G/4G optional
Input Voltage110–220 V AC, 50/60 Hz
Physical
Body ConstructionAluminum shell
ColorBlack
Dimensions626.4 x 1096.18 x 56.75 mm
Duty Cycle24/7
Operating Humidity10% to 80%
Operating Temperature-10 to 35 °C (direct sunlight); -10 to 45 °C (without direct sunlight)
Shipping Dimensions1224 x 759 x 180 mm (W x H x D)
VESA Mount300 x 250 mm
Compliance
IP RatingIP5X (front panel)
Downloads
Manufacturer documents for the Hisense WF45H 49-inch Window-Facing High Brightness Display – 49WF45H — datasheets, manuals, drawings and certificates.
- Datasheet – 49WF45H
- User manual – Hisense WF25E Series (Window Facing) / WF35M Series (Window Facing) / WF45H Series (Window Facing)
- Quick start guide – Hisense WF25E Series (Window Facing) / WF35M Series (Window Facing) / WF45H Series (Window Facing)
- Control protocol (RS232 / LAN) – Hisense (covers 40 models)
- Control protocol (RS232 / LAN) – Hisense (covers 44 models)
Questions
Can’t find your answer? Ask on WhatsApp
Is the Hisense 49WF45H suitable for a window-facing location?
Yes. The 49WF45H is rated for indoor window-facing use with 4500 nits of brightness, and the manufacturer rates it for ambient and outdoor lighting conditions. Its operating range is -10 to 35 °C in direct sunlight and -10 to 45 °C without direct sunlight.
Does the 49WF45H use fans?
Yes. The 49WF45H has smart fan control, unlike the fanless 49WF25E and 49WF35M. Its fan operation is managed together with smart temperature control and overheating protection. The unit also has an IP5X front panel rating.
What are the screen size, resolution and mounting pattern?
The 49WF45H has a 49-inch 16:9 screen with 1920 x 1080 Full HD resolution. Its VESA mounting pattern is 300 x 250 mm, and the bezel is 10 mm on all four sides. Check the bracket rating before installation.
Which operating system and connections does it have?
The 49WF45H runs Android 9.0 with an ARM quad-core Cortex-A53 processor, 2 GB DDR memory and 16 GB eMMC storage. It connects by Wi-Fi or LAN, with optional 3G or 4G, and includes a built-in speaker and line-out support.
Can the 49WF45H be monitored remotely?
Remote monitoring is optional. The 49WF45H supports the CetusMSC cloud monitoring system as an option, which is not included as standard. Ask Procure.ae to confirm the option is available for your project.
