HisenseDigital SignageSKU 55SOF25PW

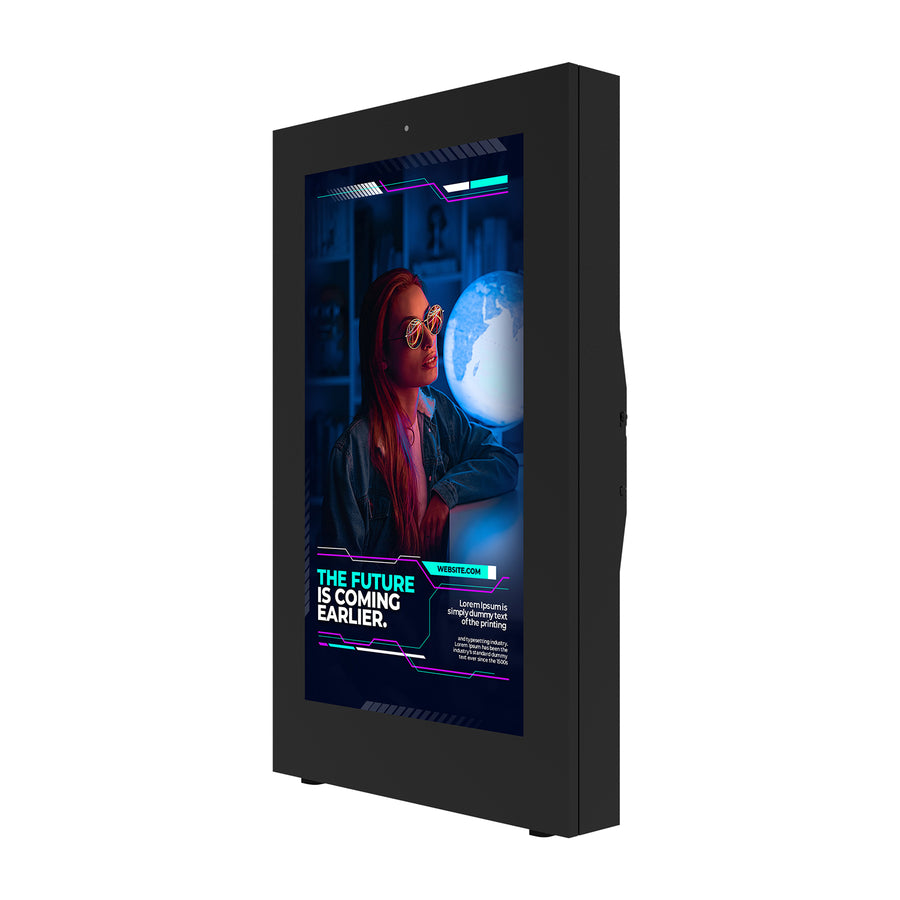

Hisense SOF25PW 55-inch Portrait Outdoor Signage Display – 55SOF25PW
The Hisense 55SOF25PW is a discontinued 55-inch Full HD portrait outdoor all-weather signage display for 24/7 use. It has a 2,500-nit screen, 10-point P-CAP touch and an IP55 enclosure rated for -20 to 45 °C. Procure.ae can confirm current UAE availability and recommend a current successor model.
The 55SOF25PW uses a 1920 x 1080 Full HD screen with a 16:9 aspect ratio, 2,500 nits brightness and a 1,200:1 contrast ratio, viewable at 178° horizontally and vertically. Its P-CAP touch layer supports 10 touch points. Android 7.1 runs on an Amlogic quad-core Cortex-A53 processor at 1.5 GHz with 2 GB DDR4 and 16 GB eMMC. The IP55 enclosure, tempered laminated glass, airflow fan and overheating protection are designed for year-round outdoor use.
The 55SOF25PW is the portrait version of the 55SOF25LW, for vertical screens at entrances, storefronts and outdoor information points. It has the same 55-inch screen and IP55 rating, with dimensions of 920 x 1515 x 158 mm and a 118 kg net weight. Power is 380 W maximum from 100/220 V AC, and connectivity is Wi-Fi or LAN, with optional 3G or 4G.
Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
2,500 nits
Touch Technology
PCAP
- Outdoor Full HD Screen
- 2,500-nit Brightness
- IP55 Enclosure
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Outdoor Full HD Screen
A 55-inch 1920 x 1080 display with a 16:9 aspect ratio.
02
2,500-nit Brightness
High-brightness screen with an auto brightness control.
03
IP55 Enclosure
The IP55 enclosure protects components year round.
04
10-point Touch
P-CAP projective capacitive touch with 10 touch points.
05
Portrait Orientation
Designed as a wall-mounted portrait display.
06
Wide Temperature Range
Operates from -20 to 45 °C ambient temperature.
07
Android 7.1 Platform
Amlogic quad-core Cortex-A53 at 1.5 GHz with 16 GB eMMC storage.
08
Built-in Cooling
Airflow fan with overheating protection.
Specifications
30 specificationsGeneral
Key Features2,500-nit screen, IP55 enclosure, 10-point P-CAP touch, auto brightness, airflow fan, overheating protection, 24/7 operation, Android 7.1
Model55SOF25PW
TypeOutdoor All-Weather Signage Display
Display
Aspect Ratio16:9
Brightness2,500 nits
Contrast Ratio1,200:1
OrientationPortrait
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size55 inch
Touch Points10-point touch
Touch TechnologyPCAP
Viewing Angle178° / 178°
Performance
GraphicsMali-450
Operating SystemAndroid 7.1
ProcessorAmlogic quad-core Cortex-A53, 1.5 GHz
RAM2 GB DDR4
Storage16 GB eMMC (expandable up to 128 GB by memory card)
Connectivity
ConnectivityWi-Fi or LAN; optional 3G/4G
Input Voltage100/220 V AC, 50/60 Hz
Power
Power Consumption380 W (max)
Physical
ColorBlack
Dimensions920 x 1515 x 158 mm
Duty Cycle24/7 operation
Material6.8 mm tempered laminated anti-reflective glass; powder-coated galvanized steel
MountingWall mount, portrait
Operating Humidity5% to 90%
Operating Temperature-20 to 45 °C
Weight118 kg
Compliance
IP RatingIP55
Downloads
Manufacturer documents for the Hisense SOF25PW 55-inch Portrait Outdoor Signage Display – 55SOF25PW — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the 55SOF25PW built for outdoor installation?
Yes. It has an IP55 rated enclosure, a built-in airflow fan with overheating protection, and an operating range of -20 to 45 °C at 5% to 90% humidity. The manufacturer states that the enclosure protects the components year round.
Is the 55SOF25PW a portrait model?
Yes. The manufacturer lists the 55SOF25PW as the portrait version of the SOF25 outdoor range. Its listed dimensions are 920 x 1515 x 158 mm in W x H x D, and it has the same IP55 enclosure and 2,500-nit screen as the landscape model. For a landscape installation, use the 55SOF25LW instead.
Can the 55SOF25PW be used in bright daylight?
The 55SOF25PW is rated at 2,500 nits with an auto brightness control that uses a light sensor. The manufacturer's specifications do not state a direct-sunlight readability rating, so confirm the site lighting with the supplier before fitting.
Does the 55SOF25PW support touch?
Yes. It has a P-CAP projective capacitive touch layer with 10 touch points. The specifications do not state the touch driver or software, so confirm integration with your content provider before installation.
What does the 55SOF25PW need for power and mounting?
It draws up to 380 W from 100/220 V AC at 50/60 Hz, and weighs 118 kg. The manufacturer's specifications do not state a VESA pattern, so confirm the wall structure and bracket with the installer before fitting.
Can I buy the 55SOF25PW in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
