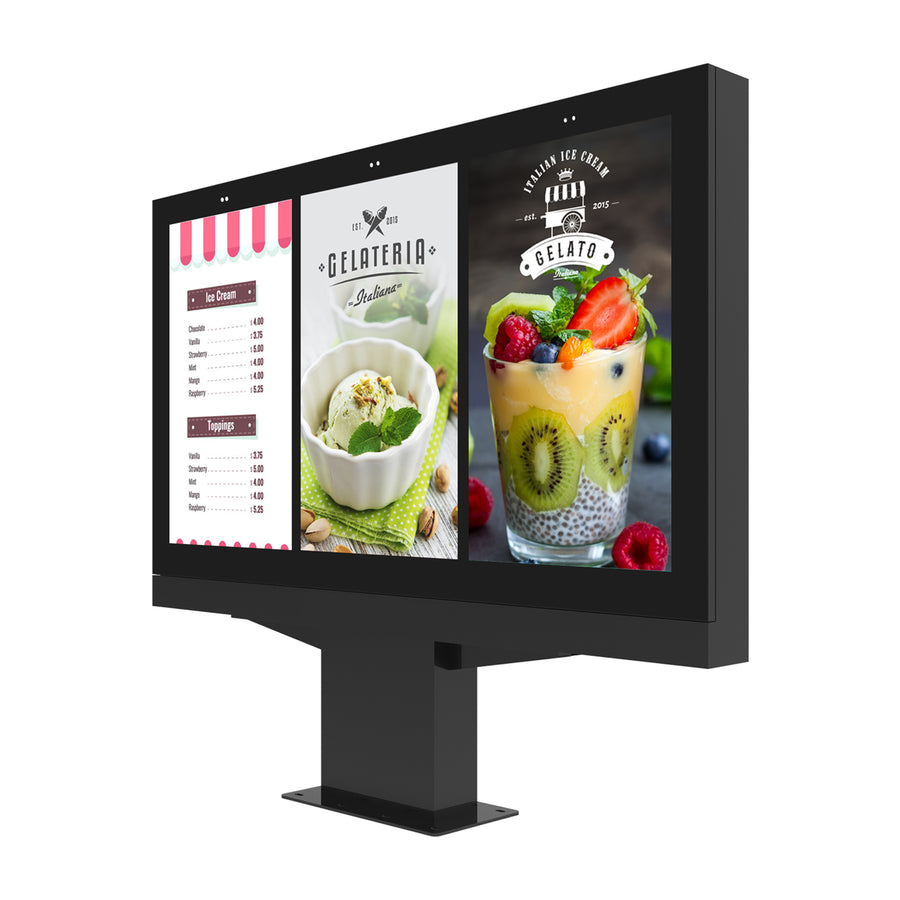

Hisense SDT25P Drive-Thru 55-inch Digital Signage Display – 55SDT25P_X3
The Hisense 55SDT25P_X3 is an outdoor drive-thru digital signage display built as a 1x3 array of 55-inch screens for quick service restaurant lanes. It offers 2500-nit Full HD screens in an IP55 enclosure with 24/7 operation. Procure.ae supplies the Hisense 55SDT25P_X3 in the UAE, subject to current availability.
The 55SDT25P_X3 arranges three 55-inch Full HD (1920 x 1080) screens in a 1x3 layout, with the unit measuring 2356 mm wide and 2150 mm high. The screens are rated at 2500 nits with a 1200:1 contrast ratio and 178-degree viewing angles. The 8 ms response time suits motion content. An automatic brightness control with a light sensor adjusts the picture to ambient light. The display runs 24/7 and has a built-in airflow fan with overheating protection. Wi-Fi or LAN connects it to content, with optional 3G or 4G.
The 55SDT25P_X3 is the three-panel version of the SDT25P drive-thru series, alongside the single-panel X1 and the two-panel X2. Its IP55 enclosure, 6.8 mm laminated tempered glass and galvanized steel frame with a powder-coated finish protect the components outdoors. Android 9.0 with Wi-Fi or LAN connectivity supports network-connected content playback. Its power draw is up to 1100 W, so confirm the electrical supply with your electrician during planning.
Screen Size
55 inch (1x3 array)
Resolution
1920 x 1080 (Full HD)
Brightness
2500 nits
Type
Outdoor Drive-Thru Display
- Clear 2500-nit screens
- 1x3 panel layout
- IP55 protected enclosure
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Clear 2500-nit screens
Each 55-inch Full HD screen is rated at 2500 nits for clear content in any lighting condition.
02
1x3 panel layout
Three 55-inch screens arranged in a 1x3 configuration.
03
IP55 protected enclosure
The IP55 enclosure protects components in any conditions, all year round.
04
24/7 operation
Rated for continuous operation with overheating protection built in.
05
Automatic brightness control
A light sensor adjusts brightness automatically to ambient light levels.
06
Airflow cooling and protection
A built-in airflow fan and overheating protection operate across -20 to 45 °C.
07
178-degree viewing angle
Horizontal and vertical viewing angles of 178 degrees each.
08
Wi-Fi or LAN connectivity
Connects by Wi-Fi or LAN, with optional 3G or 4G on Android 9.0.
Specifications
23 specificationsGeneral
Key FeaturesThree 55-inch 2500-nit screens in 1x3 layout, IP55 enclosure, 24/7 operation, light-sensor auto brightness, airflow fan, overheating protection, Wi-Fi or LAN connection, drive-thru advertising
Model55SDT25P_X3
TypeOutdoor Drive-Thru Display
Display
Aspect Ratio16:9
Brightness2500 nits
Contrast Ratio1,200:1
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size55 inch (1x3 array)
TouchscreenOptional
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemAndroid 9.0
Connectivity
ConnectivityWi-Fi or LAN; 3G/4G optional
Input Voltage110–220 V AC, 50/60 Hz
Power
Power Consumption1100 W (max.)
Physical
ColorBlack
Dimensions2356 x 2150 x 200 mm
Duty Cycle24/7
MaterialGalvanized steel, powder coated; 6.8 mm laminated tempered glass
Operating Humidity5% to 90%
Operating Temperature-20 to 45 °C
Weight380 kg (approx.)
Compliance
IP RatingIP55
Downloads
Manufacturer documents for the Hisense SDT25P Drive-Thru 55-inch Digital Signage Display – 55SDT25P_X3 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the Hisense 55SDT25P_X3 suitable for outdoor drive-thru lanes?
Yes. The 55SDT25P_X3 is an IP55 outdoor drive-thru display with three 55-inch 2500-nit screens in a 1x3 layout. Its operating range is -20 to 45 °C, and it is designed to keep content clear in any lighting condition from a drive-thru lane.
What brightness and resolution does the 55SDT25P_X3 have?
Each 55-inch screen has 1920 x 1080 (Full HD) resolution in a 16:9 aspect ratio and 2500 nits of brightness. The contrast ratio is 1200:1, the response time is 8 ms and the viewing angle is 178 degrees horizontally and vertically.
Does the 55SDT25P_X3 have a touchscreen?
Touch is optional on the 55SDT25P_X3, so the manufacturer does not include it as a standard feature. Ask Procure.ae to confirm whether the touch option is available for your project before ordering.
Which operating system and connections does it use?
The 55SDT25P_X3 runs Android 9.0 and connects by Wi-Fi or LAN, with an optional 3G or 4G connection. It has a built-in power supply, so the display does not need a separate external power unit.
How much power does it need and what are its dimensions?
The 55SDT25P_X3 draws up to 1100 W on AC 110 to 220 V at 50/60 Hz. It measures 2356 x 2150 x 200 mm (W x H x D) and weighs approximately 380 kg, so confirm the mounting structure, site access and circuit capacity before installation.
Can I buy the 55SDT25P_X3 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
