HisenseInteractive Flat PanelsSKU 86MR6DE-E

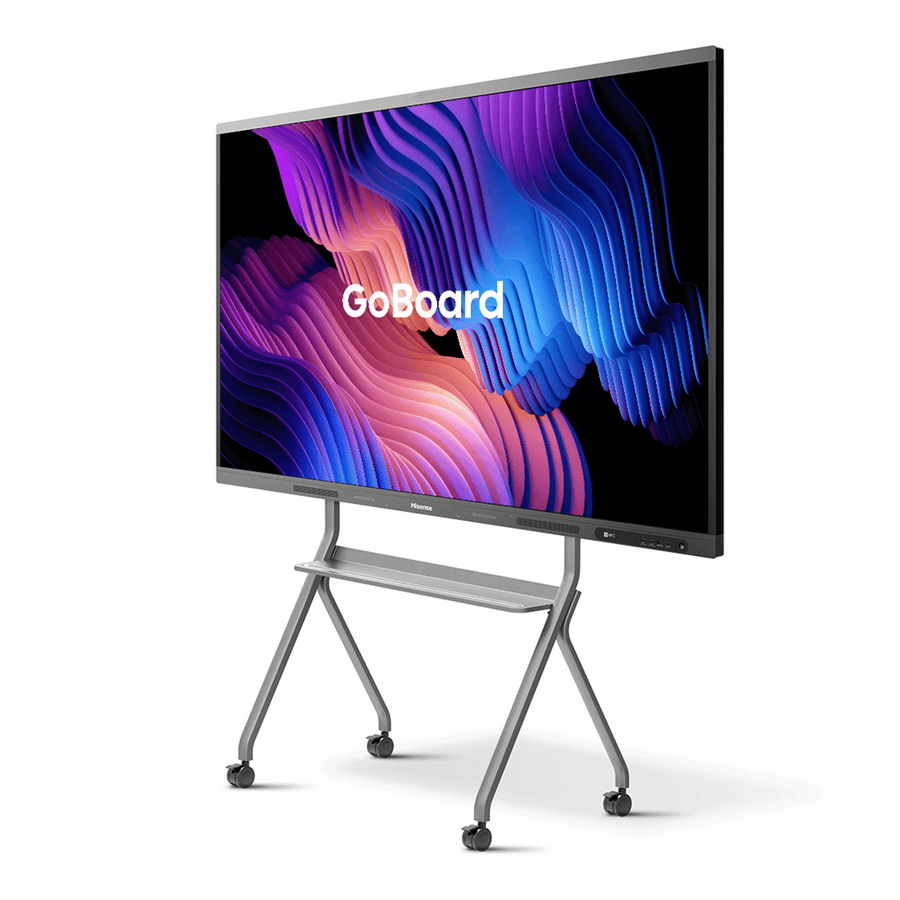

Hisense GoBoard 86-inch 4K Interactive Flat Panel – 86MR6DE-E
The Hisense 86MR6DE-E is an 86-inch GoBoard 4K UHD interactive flat panel for meeting rooms, classrooms and training spaces. It has 4,000:1 typical contrast, Android 13 with Google certification, and infrared touch for up to 20 points. Procure.ae supplies the Hisense 86MR6DE-E across the UAE.
The 86MR6DE-E displays 3840 x 2160 pixels with 350 nits typical brightness, 4,000:1 typical contrast and an 8 ms response time at 60 Hz. Its 10-bit panel shows 1.07 billion colours with 72% colour gamut and a 178° viewing angle horizontally and vertically. Anti-glare glass covers an infrared touch frame with up to 20 touch points and 90% (±1 mm) touch accuracy, with multi-touch on Windows 10, 8 and 7 as well as Android. The display runs Android 13 and includes Wi-Fi 6 (802.11ax), Bluetooth 5.1 and NFC.
The 86MR6DE-E suits meeting rooms, classrooms and collaborative spaces where a large touch display replaces a whiteboard. It has an OPS slot for an optional OPS module, three HDMI 2.0 inputs, three USB 3.0 ports, USB-C with 65 W Power Delivery, and LAN with RS-232 in and out. The VESA pattern is 1000 x 600 mm with four M8 screws, and the package includes a mobile cart and OPS.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits
Touch Technology
Infrared
- 86-inch 4K display
- Infrared touch
- Android 13 with Google certification
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
86-inch 4K display
3840 x 2160 pixel panel with 4,000:1 typical contrast ratio.
02
Infrared touch
Up to 20 touch points with 90% (±1 mm) touch accuracy.
03
Android 13 with Google certification
Android 13 operating system with Google certification.
04
Multi-touch on Windows and Android
Multi-touch support on Windows 10, 8, 7 and Android.
05
Built-in speakers
Built-in 2 x 15 W + 20 W speaker system.
06
Wireless connectivity
Wi-Fi 6 (802.11ax), Bluetooth 5.1 and NFC.
07
Connectivity
Three HDMI 2.0 inputs, three USB 3.0 ports and a USB-C port with 65 W Power Delivery.
08
Mobile cart and OPS
Mobile cart and OPS module listed in the package contents.
Specifications
30 specificationsGeneral
Key FeaturesInfrared touch, Android 13 with Google certification, Windows and Android multi-touch, NFC, Wi-Fi 6, 2 x 15 W + 20 W speakers
Model86MR6DE-E
TypeInteractive Flat Panel
What's in the BoxMobile cart, OPS
Display
BacklightD-LED
Brightness350 nits
Color Depth10-bit (1.07 billion colours)
Color Gamut72%
Contrast Ratio4,000:1 (typical)
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Touch Accuracy90% (±1 mm)
Touch PointsUp to 20
Touch TechnologyInfrared
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemAndroid 13
Audio
Speaker Output2 x 15 W + 20 W
Connectivity
BluetoothBluetooth 5.1
Input Voltage100–240 V AC, 50/60 Hz
OutputsRS-232 Out × 2, HDMI Out × 1, S/PDIF Out × 1, Audio Out × 1
PortsHDMI In × 3, OPS × 1, LAN × 1, USB 3.0 × 3, USB-C × 1 (65 W PD), Touch × 1, Audio In × 1, RS-232 In × 1
Wi-FiWi-Fi 6 (802.11ax), 2.4 GHz and 5 GHz
Power
Power Consumption430 W (max, without OPS)
Standby Power<0.5 W
Physical
Dimensions1954.7 x 1162.1 x 118.2 mm
Surface ProtectionAnti-glare glass
VESA Mount1000 x 600 mm
Weight58.7 kg (net)
Downloads
Manufacturer documents for the Hisense GoBoard 86-inch 4K Interactive Flat Panel – 86MR6DE-E — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What are the specifications of the Hisense 86MR6DE-E?
The Hisense 86MR6DE-E has an 86-inch display with 3840 x 2160 (4K UHD) resolution, 350 nits typical brightness, 4,000:1 typical contrast and an 8 ms response time at 60 Hz. It runs Android 13, supports infrared touch for up to 20 points and includes a mobile cart and OPS.
Does the 86MR6DE-E support Windows as well as Android?
Yes. The 86MR6DE-E supports multi-touch on Windows 10, 8 and 7 as well as on Android 13. It has an OPS slot for an optional OPS module and a USB-C port with 65 W Power Delivery.
Can the 86MR6DE-E be wall-mounted?
Yes. The 86MR6DE-E has a VESA pattern of 1000 x 600 mm with four M8 screws. Its net weight is 58.7 kg, so confirm that the wall or mount can carry it and that the height suits the room. A mobile cart is listed in the package for a free-standing setup.
How many touch points does the 86MR6DE-E support?
The 86MR6DE-E supports up to 20 touch points on its infrared touch frame, with 90% (±1 mm) touch accuracy. Multi-touch works on Windows 10, 8 and 7 and on Android, and the infrared touch frame sits behind anti-glare glass.
How many HDMI and USB ports does the 86MR6DE-E have?
The 86MR6DE-E has three HDMI (2.0) inputs and one HDMI output. It has three USB 3.0 ports, one USB-C port with 65 W Power Delivery, a touch input, audio in, RS-232 in and two RS-232 outputs, plus LAN, S/PDIF out and audio out.
Can I buy the 86MR6DE-E in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
