HisenseDigital SignageSKU 65BM66D

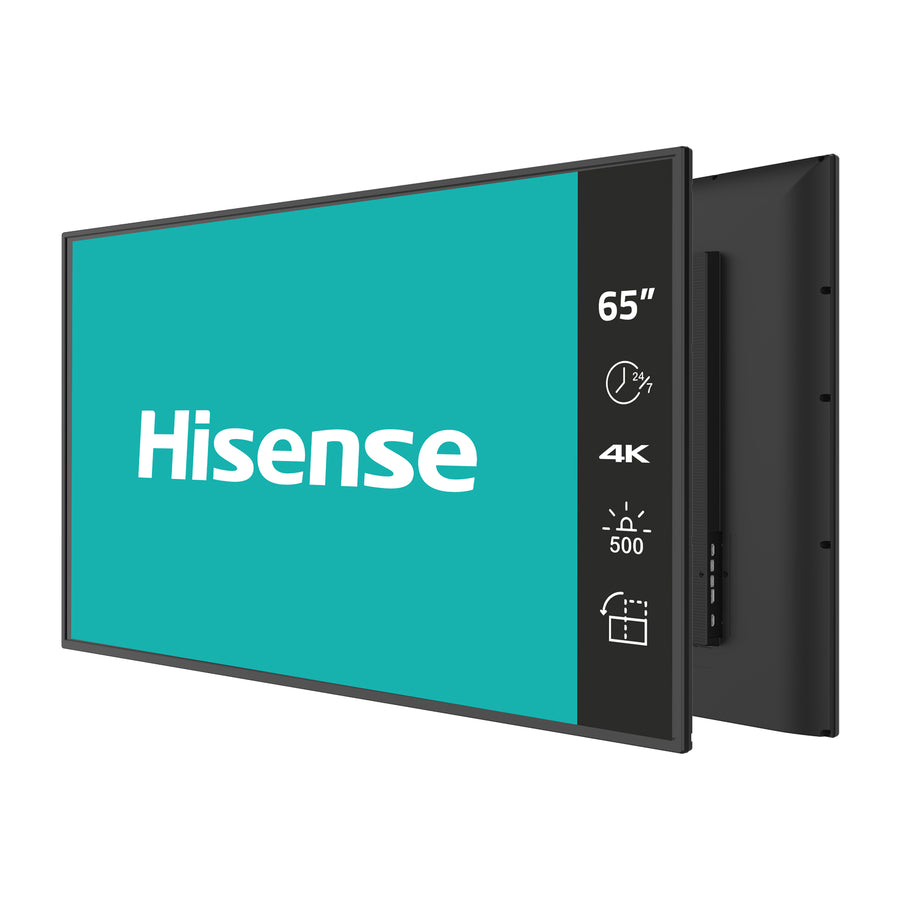

Hisense BM66D Series 65-inch 4K UHD Digital Signage Display – 65BM66D
The Hisense 65BM66D is a discontinued 65-inch 4K UHD digital signage display for 24/7 use in retail and corporate spaces. It has a 3840 x 2160 IPS panel, 500 nits typical brightness and 1,200:1 typical contrast, with IR and RS232 control. Procure.ae can confirm current UAE availability and recommend a current successor model.
The 65BM66D uses a 3840 x 2160 IPS panel with a DLED backlight. It delivers 500 nits typical brightness for enhanced visibility in brightly lit environments, with 1,200:1 typical contrast. The display is rated for 24 hours a day, seven days a week. It runs Android 11 with 2.4 GHz and 5 GHz Wi-Fi and a 10/100 Mbps LAN port, and two 9 W built-in speakers are fitted.
The 65BM66D suits menu boards, lobby screens, corridors and retail walls where a 65-inch format is needed. Control is by IR remote or RS232 over an RJ45 port. The VESA pattern is 400 x 400 mm and the net weight is 20 kg, so the mount must be rated for that load. Compared with the 43BM66AE, it is a larger screen with a higher maximum power draw, 240 W against 120 W.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- 4K UHD IPS Panel
- Typical Brightness
- 24/7 Operation
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD IPS Panel
A 65-inch screen at 3840 x 2160 resolution.
02
Typical Brightness
500 nits typical brightness for brightly lit environments.
03
24/7 Operation
Rated for seven days a week, 24 hours a day use.
04
Landscape or Portrait
Supports landscape and portrait orientation.
05
Built-in Speakers
Two 9 W speakers are fitted in the display.
06
IR and RS232 Control
IR remote control and RS232 serial control through an RJ45 port.
07
Wi-Fi and LAN
Supports 2.4 GHz and 5 GHz Wi-Fi and a 10/100 Mbps LAN port.
08
Android 11 Platform
Runs the Android 11 operating system.
Specifications
27 specificationsGeneral
ControlsIR remote
Key Features4K UHD IPS panel, 500 nits, 24/7 operation, landscape and portrait, built-in speakers, IR and RS232 control, Wi-Fi and LAN, Android 11
Model65BM66D
TypeDigital Signage Display
Display
BacklightDLED
Bezel Size12 mm (top, left, right), 16 mm (bottom)
Brightness500 nits
Contrast Ratio1,200:1
OrientationLandscape and portrait
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Screen Size65 inch
Performance
Operating SystemAndroid 11
Audio
Speaker Output9 W × 2
Connectivity
Ethernet10/100 Mbps LAN
Serial PortRS232 × 1 (RJ45)
Wi-Fi2.4 GHz / 5 GHz
Power
Power Consumption240 W (max)
Standby Power< 0.5 W
Physical
ColorBlack
Dimensions1455.5 x 834.4 x 71.1 mm
Duty Cycle24/7 operation
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C
VESA Mount400 x 400 mm
Weight20 kg
Compliance
CertificationsCB, CE, ERP, FCC, cTUVus, CEC, UKCA
Downloads
Manufacturer documents for the Hisense BM66D Series 65-inch 4K UHD Digital Signage Display – 65BM66D — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the 65BM66D rated for 24/7 operation?
Yes. The manufacturer lists 7-day, 24-hour operation for the 65BM66D. Its operating temperature is 0 to 40 °C and operating humidity is 10% to 80%, so keep the install location within those ranges.
What mount does the 65BM66D need?
The 65BM66D uses a 400 x 400 mm VESA pattern. Its net weight is 20 kg, so use a bracket and wall structure rated for that load before fitting the display.
Does the 65BM66D support landscape and portrait mounting?
Yes. The manufacturer lists landscape and portrait orientation for the 65BM66D, with a VESA 400 x 400 mm pattern and a 20 kg net weight. Confirm that the mount supports portrait use and that its load rating covers the weight before installation.
How do I control the 65BM66D from a control system?
The 65BM66D supports IR remote control and RS232 serial control through an RJ45 port. The manufacturer's specifications do not state a network control protocol, so confirm the integration method with your control system supplier before ordering.
Can the 65BM66D connect to a network?
Yes. It has 2.4 GHz and 5 GHz Wi-Fi and a 10/100 Mbps LAN port, and it runs Android 11. The manufacturer's specifications do not state cellular connectivity for this model.
Can I buy the 65BM66D in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
