Hisense 55-inch Full HD Outdoor Air-Conditioned Digital Signage Kiosk – 55SOA25PT

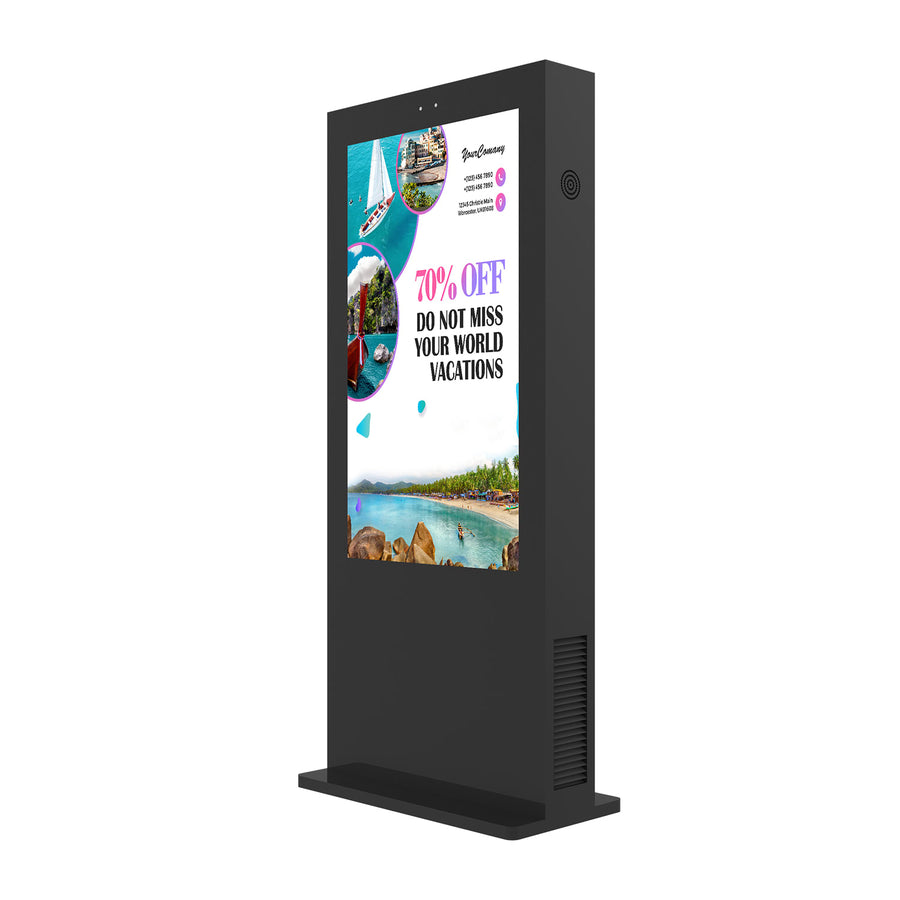

The Hisense 55SOA25PT is a 55-inch outdoor digital signage kiosk with a Full HD 2500-nit screen and an IP65 air-conditioned enclosure. It suits outdoor retail frontages, car parks and building entrances. Procure.ae supplies Hisense displays in the UAE and can confirm current availability of this model.

The 55SOA25PT from the Hisense SOA25PT Series has a 55-inch Full HD panel at 1920 x 1080 pixels, with 2500 nits of brightness and a 1,200:1 contrast ratio. The screen runs in portrait orientation with P-CAP projective capacitive touch that supports 10 touch points, and it has an 8 ms response time. It is rated for 24/7 operation with a 50,000-hour backlight life cycle and a light sensor that adjusts brightness automatically. An Android 7.1 system with an Amlogic quad-core Cortex-A53 processor at 1.5 GHz, 2 GB DDR4 RAM and 16 GB eMMC storage runs the content.

The 55SOA25PT suits outdoor locations, with a air-conditioned enclosure rated IP65 for operation from -40 to 55 °C and 5% to 95% RH. It connects over Wi-Fi or LAN, with optional 3G/4G, and its HDMI, USB 2.0, TF card and RS232 ports cover media playback and serial connectivity. Compared with the fan-cooled 55SOF25PT, this model has a built-in air conditioner and an IP65 rating instead of IP55, with a maximum power draw of 750 W against 380 W.

Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
2500 nits
Touch Technology
PCAP
  • High-brightness screen
  • IP65 all-weather enclosure
  • Built-in air conditioner
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
High-brightness screen
The 2500-nit panel with a 1,200:1 contrast ratio stays clear in any lighting conditions.
02
IP65 all-weather enclosure
The IP65 enclosure protects the components in any conditions, all year round.
03
Built-in air conditioner
A built-in air conditioner with overheating protection supports operation from -40 to 55 °C, and the manufacturer states no filter maintenance is required.
04
10-point touch
P-CAP projective capacitive touch with 10 touch points.
05
Android 7.1 platform
Amlogic quad-core Cortex-A53 processor at 1.5 GHz, 2 GB DDR4 RAM and 16 GB eMMC storage.
06
Connectivity and ports
Wi-Fi or LAN with optional 3G/4G, plus HDMI, USB 2.0, LAN, TF card and RS232 ports.
07
Integrated speaker
A built-in speaker is fitted to the unit.
08
Auto brightness control
A light sensor adjusts the screen brightness to the surrounding light.

Specifications

33 specifications
General
Key Features2500-nit high-brightness screen, IP65 all-weather enclosure, Built-in air conditioner, 10-point touch, Android 7.1, Built-in speaker, Auto brightness control, Wi-Fi or LAN connectivity
Model55SOA25PT
TypeOutdoor Digital Signage Kiosk
Display
Aspect Ratio16:9
Backlight50,000-hour life cycle
Brightness2500 nits
Contrast Ratio1,200:1
OrientationPortrait
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size55 inch
Touch Points10-point multi-touch
Touch TechnologyPCAP
Viewing Angle178° (H) / 178° (V)
Performance
GraphicsMali-450 GPU
Operating SystemAndroid 7.1
ProcessorAmlogic quad-core Cortex-A53, 1.5 GHz
RAM2 GB DDR4
Storage16 GB eMMC (expandable to 128 GB)
Audio
AudioBuilt-in speaker
Connectivity
ConnectivityWi-Fi or LAN; optional 3G/4G
Input Voltage110/220 V AC, 50/60 Hz
PortsHDMI In × 2, HDMI Out × 1, AV Out × 1, USB 2.0 × 1, LAN × 1, TF card slot × 1, RS232 × 1
Power
Power Consumption750 W (max)
Power SourceBuilt-in power supply
Physical
ColorBlack
Dimensions848 x 2100 x 255 mm
Duty Cycle24/7
MaterialGalvanized steel with powder coating; 6.8 mm AR tempered laminated glass
Operating Humidity5% to 95% RH
Operating Temperature-40 to 55 °C
Weight200 kg
Compliance
IP RatingIP65

Downloads

Manufacturer documents for the Hisense 55-inch Full HD Outdoor Air-Conditioned Digital Signage Kiosk – 55SOA25PT — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

Is the 55SOA25PT built for outdoor use?
Yes. The 55SOA25PT is listed for full outdoor working environments, with an IP65 enclosure, an operating temperature of -40 to 55 °C and an operating humidity range of 5% to 95% RH.
How is the 55SOA25PT kept cool?
The 55SOA25PT has a built-in air conditioner with overheating protection. The manufacturer states no filter maintenance is required and rates the unit for operation from -40 to 55 °C in a full outdoor environment.
How bright is the screen for outdoor viewing?
The screen is rated at 2500 nits with a 1,200:1 contrast ratio, and it includes a light sensor that adjusts brightness automatically. The manufacturer states the display keeps content clear in any lighting conditions, with 178° viewing angles.
What operating system and connections does the 55SOA25PT have?
It runs Android 7.1 and connects over Wi-Fi or LAN, with optional 3G/4G. Its ports are HDMI In × 2, HDMI Out × 1, AV Out × 1, USB 2.0 × 1, LAN × 1, TF card slot × 1 and RS232 × 1.
What mounting and installation details apply to the 55SOA25PT?
The manufacturer's specifications do not state a mounting method or VESA pattern for the 55SOA25PT. The unit measures 848 x 2100 x 255 mm (W x H x D) and weighs 200 kg, so Procure.ae can advise on site requirements before delivery and installation across the UAE.
