HikvisionInteractive Flat PanelsSKU DS-D5A75RB/A3

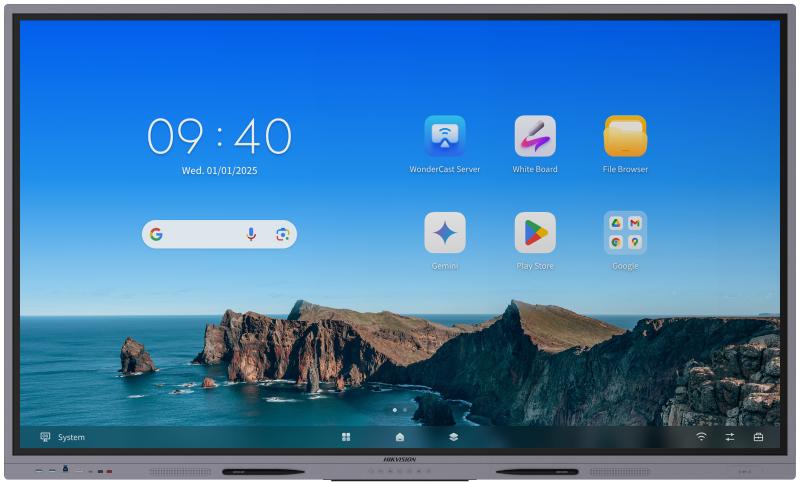

Hikvision WonderHub Value 75-inch 4K Interactive Flat Panel – DS-D5A75RB/A3
The Hikvision DS-D5A75RB/A3 is a 75-inch 4K UHD interactive flat panel from the WonderHub Value Series, with an IPS display for classrooms and training rooms. It has 3840 x 2160 resolution, 400 nits brightness, 50-point multi-touch and Android 16 built in. Procure.ae supplies it as an authorised reseller across the UAE.
The DS-D5A75RB/A3 runs Android 16 with 8 GB RAM and 128 GB storage, and Windows can run through an optional 195 x 30 x 180 mm OPS module. The IPS panel has 1,200:1 static contrast, 15,000:1 dynamic contrast and a 5 ms response time, with 178° viewing angles. Touch is up to 50-point, with response of 5 ms or less and ±0.5 mm precision. Two 20 W loudspeakers, Bluetooth 5.4 and an NFC card reader complete the unit.
The panel suits mid-sized classrooms, training rooms and meeting rooms. Two 1000 Mbps LAN ports and an integrated network switch chip connect it without an external switch. It mounts on a 600 x 400 mm VESA pattern with the included wall bracket. The manufacturer recommends running video conferencing software on the Windows system when an OPS module is fitted.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Type
Interactive Flat Panel
- Built-in Android 16
- IPS Panel
- Responsive Multi-Touch
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Built-in Android 16
Android 16 system with EDLA certification, 8 GB RAM and 128 GB storage.
02
IPS Panel
IPS panel with 1,200:1 static contrast and 178° viewing angles.
03
Responsive Multi-Touch
Up to 50-point touch with ±0.5 mm precision and a smooth writing experience.
04
Android and Windows Options
Android and Windows can run together with an optional OPS module.
05
Classroom Front Panel
Multi-button front design with front USB 3.0 and Type-C ports for daily use.
06
Built-in Network Switch
An integrated switch chip with two 1000 Mbps LAN ports and Wi-Fi 6.
07
Anti-Glare Tempered Glass
9H pencil hardness and 25% haze for reduced glare.
08
Card Reader
NFC card reader supports 13.56 MHz ISO 14443A and ISO 14443B cards.
Specifications
45 specificationsGeneral
Key FeaturesUHD 4K, IPS panel, 50-point touch, Android 16 with optional Windows OPS, built-in network switch, multi-button front panel, NFC card reader, EDLA certified
ModelDS-D5A75RB/A3
TypeInteractive Flat Panel
What's in the BoxWall mount bracket, hook, user manual, touch pen, packing list, power cable, remote control
Display
Aspect Ratio16:9
BacklightDLED
Brightness400 nits
Color Depth10 bit (8 bit + FRC)
Color Gamut72% NTSC
Contrast Ratio1,200:1 static (15,000:1 dynamic)
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time5 ms
Screen Size75 inch
Touch Accuracy±0.5 mm
Touch Points50-point multi-touch
Touch Response Time≤ 5 ms
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemAndroid 16
ProcessorQuad-core Cortex-A72 @ 2.2 GHz + quad-core Cortex-A53 @ 1.8 GHz
RAM8 GB
Storage128 GB
Audio
Speaker Output2 × 20 W
Connectivity
BluetoothBluetooth 5.4
ConnectivityWi-Fi 6, Bluetooth 5.4, 13.56 MHz NFC card reader
Ethernet2 × LAN (1000 Mbps)
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOptional OPS module (195 x 30 x 180 mm) for Windows
PortsHDMI 2.1 In × 3 (one front, two rear), Audio In × 1, Audio Out × 1, TF card slot × 1
Serial PortRS232 × 1
Touch USB PortsTOUCH-USB 2.0 × 2 (front and rear)
USB PortsUSB 3.0 × 2 (front), USB 2.0 × 2 (rear)
USB-C PortsType-C × 1 (front, USB 3.0, 15 W charging)
Wi-FiWi-Fi 6 (802.11ax), 2.4 GHz / 5 GHz, 2 × 2 MIMO
Power
Power Consumption189 W (average)
Standby Power≤ 0.5 W
Physical
Dimensions1710 x 1017 x 96 mm
MountingWall mount
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
Surface Protection9H pencil hardness, anti-glare tempered glass, 25% haze
VESA Mount600 x 400 mm
Weight41.23 kg
Compliance
CertificationsEDLA
Downloads
Manufacturer documents for the Hikvision WonderHub Value 75-inch 4K Interactive Flat Panel – DS-D5A75RB/A3 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Hikvision DS-D5A75RB/A3?
The DS-D5A75RB/A3 is a 75-inch 4K UHD interactive flat panel from Hikvision's WonderHub Value Series, with an IPS display. It has 50-point multi-touch, Android 16 built in and an optional OPS slot for Windows.
Does the DS-D5A75RB/A3 run Windows as well as Android?
Yes, with an optional OPS module. Android 16 is built in, and the OPS module adds Windows, which the manufacturer recommends for video conferencing software. The OPS module measures 195 x 30 x 180 mm.
How does the IPS panel differ from the VA models in this series?
The 75-inch A3 uses an IPS panel with 1,200:1 static and 15,000:1 dynamic contrast. The 65-inch models use VA panels with 5,000:1 static contrast. Both sizes have 400 nits brightness and 178° viewing angles.
Does it support VESA wall mounting, and how heavy is it?
Yes. The panel has a 600 x 400 mm VESA pattern with four M8 x 25 mm fixing points, and a wall mount bracket is included. The net weight is 41.23 kg, so the wall and mounting hardware must be rated for that load.
Which ports does the DS-D5A75RB/A3 have?
It has three HDMI 2.1 TMDS inputs, one on the front, plus audio input and output, an RS232 control port and two 1000 Mbps LAN ports. It also has front USB 3.0 and Type-C ports, rear USB 2.0 ports and a TF card slot.
