HikvisionInteractive Flat PanelsSKU DS-D5A65RB/B3

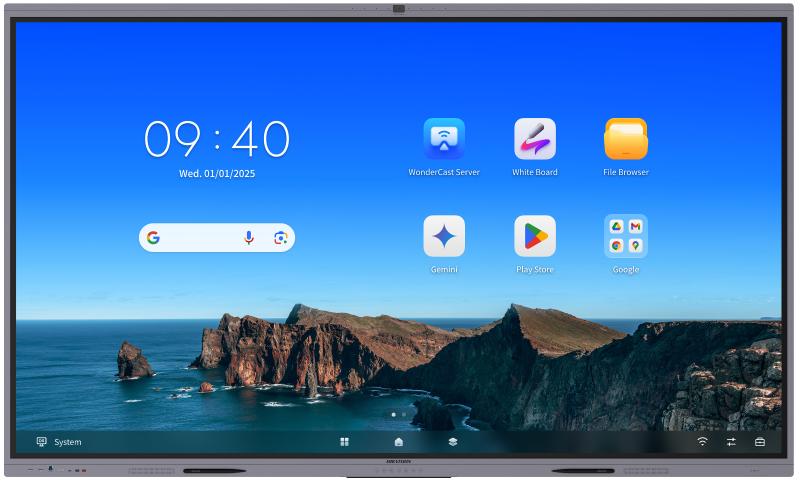

Hikvision WonderHub Value 65-inch 4K Interactive Flat Panel – DS-D5A65RB/B3
The Hikvision DS-D5A65RB/B3 is a 65-inch 4K UHD interactive flat panel from the WonderHub Value Series, with a built-in 4K camera and 8-array microphone for classrooms and hybrid teaching. It has a VA display, 400 nits brightness and 50-point multi-touch, with Android 16 built in. Procure.ae supplies it as an authorised reseller across the UAE.
The DS-D5A65RB/B3 runs Android 16 with 8 GB RAM and 128 GB storage, and Windows can run through an optional 195 x 30 x 180 mm OPS module. Its camera has a 48 MP photo sensor and 8 MP video up to 4K, with a 93.4° diagonal field of view. The omni-directional 8-array microphone uses echo reduction and noise cancellation, with a 12 m voice distance. The VA panel has 5,000:1 static contrast, and touch is up to 50-point with response of 5 ms or less.
This model suits classrooms and hybrid teaching, where a built-in camera and microphone array are useful. Two 1000 Mbps LAN ports and an integrated switch chip connect it to the network without an external switch. It mounts on a 600 x 400 mm VESA pattern with the included wall bracket. Compared with the DS-D5A65RB/A3, this model adds the camera and microphone array.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Type
Interactive Flat Panel
- Built-in 4K Camera
- Eight-Array Microphone
- Built-in Android 16
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Built-in 4K Camera
48 MP photo sensor, 8 MP video up to 4K and a 93.4° diagonal field of view.
02
Eight-Array Microphone
Omni-directional 8-array layout with echo reduction, noise cancellation and 12 m voice distance.
03
Built-in Android 16
Android 16 system with EDLA certification, 8 GB RAM and 128 GB storage.
04
Ultra-Clear 4K Display
3840 x 2160 UHD resolution on a 16:9 panel with 5,000:1 static contrast.
05
Responsive Multi-Touch
Up to 50-point touch with ±0.5 mm precision and a smooth writing experience.
06
Android and Windows Options
Android and Windows can run together with an optional OPS module.
07
Classroom Front Panel
Multi-button front design with front USB 3.0 and Type-C ports for daily use.
08
Built-in Network Switch
An integrated switch chip with two 1000 Mbps LAN ports and Wi-Fi 6.
Specifications
47 specificationsGeneral
Key FeaturesUHD 4K, 50-point touch, built-in 4K camera, 8-array microphone, Android 16 with optional Windows OPS, built-in network switch, multi-button front panel, EDLA certified
ModelDS-D5A65RB/B3
TypeInteractive Flat Panel
What's in the BoxWall mount bracket, hook, user manual, touch pen, packing list, power cable, remote control
Display
Aspect Ratio16:9
BacklightDLED
Brightness400 nits
Camera48 MP photo sensor, 8 MP video up to 4K, 93.4° diagonal field of view
Color Depth10 bit (8 bit + FRC)
Color Gamut72% NTSC
Contrast Ratio5,000:1
Panel TechnologyVA
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time5 ms
Screen Size65 inch
Touch Accuracy±0.5 mm
Touch Points50-point multi-touch
Touch Response Time≤ 5 ms
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemAndroid 16
ProcessorQuad-core Cortex-A72 @ 2.2 GHz + quad-core Cortex-A53 @ 1.8 GHz
RAM8 GB
Storage128 GB
Audio
MicrophoneOmni-directional 8-array, 12 m voice distance, echo reduction and noise cancellation
Speaker Output2 × 20 W
Connectivity
BluetoothBluetooth 5.4
ConnectivityWi-Fi 6, Bluetooth 5.4, 13.56 MHz NFC card reader
Ethernet2 × LAN (1000 Mbps)
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOptional OPS module (195 x 30 x 180 mm) for Windows
PortsHDMI 2.1 In × 3 (one front, two rear), Audio In × 1, Audio Out × 1, TF card slot × 1
Serial PortRS232 × 1
Touch USB PortsTOUCH-USB 2.0 × 2 (front and rear)
USB PortsUSB 3.0 × 2 (front), USB 2.0 × 2 (rear)
USB-C PortsType-C × 1 (front, USB 3.0, 15 W charging)
Wi-FiWi-Fi 6 (802.11ax), 2.4 GHz / 5 GHz, 2 × 2 MIMO
Power
Power Consumption160 W (average)
Standby Power≤ 0.5 W
Physical
Dimensions1488 x 911 x 83 mm
MountingWall mount
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
Surface Protection9H pencil hardness, anti-glare tempered glass, 25% haze
VESA Mount600 x 400 mm
Weight33.00 kg
Compliance
CertificationsEDLA
Downloads
Manufacturer documents for the Hikvision WonderHub Value 65-inch 4K Interactive Flat Panel – DS-D5A65RB/B3 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Hikvision DS-D5A65RB/B3?
The DS-D5A65RB/B3 is a 65-inch 4K UHD interactive flat panel from Hikvision's WonderHub Value Series, with a built-in 4K camera and 8-array microphone. It runs Android 16, supports 50-point touch and has an optional OPS slot for Windows.
Does the DS-D5A65RB/B3 have a built-in camera and microphone?
Yes. It has a 48 MP photo sensor, 8 MP video up to 4K and an omni-directional 8-array microphone with a 12 m voice distance. The camera can switch between Android, OPS and PC sources.
Can it run video conferencing software?
Yes. The manufacturer recommends video conferencing software on the Windows system, which is added through the optional OPS module. Android 16 is built in for the native interface and apps.
Does it support VESA wall mounting, and how heavy is it?
Yes. The panel has a 600 x 400 mm VESA pattern with four M8 x 25 mm fixing points, and a wall mount bracket is included. The net weight is 33.00 kg, so the wall and mounting hardware must be rated for that load.
Which ports does the DS-D5A65RB/B3 have?
It has three HDMI 2.1 TMDS inputs, with one on the front, plus audio input and output, an RS232 control port and two 1000 Mbps LAN ports. It also has front USB 3.0 and Type-C ports, rear USB 2.0 ports and a TF card slot.
Can I buy the DS-D5A65RB/B3 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
