Hikvision WonderHub Select 98-inch 4K interactive flat panel with camera DS-D5C98RB/B2LHikvision
Interactive Flat PanelsSKU DS-D5C98RB/B2L

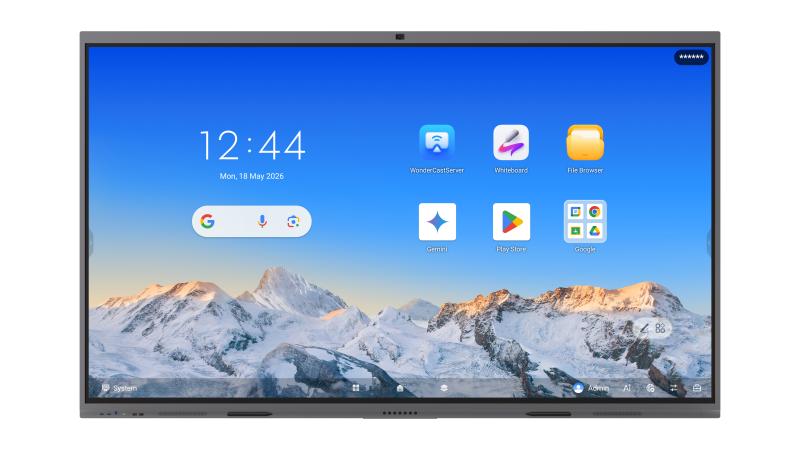

Hikvision WonderHub Select 98-inch 4K Interactive Flat Panel – DS-D5C98RB/B2L

The Hikvision WonderHub Select 98-inch 4K Interactive Flat Panel (DS-D5C98RB/B2L) is a large all-in-one touch display with a built-in 48 MP camera and microphone array for classrooms and meeting rooms. It has an IPS panel at 600 nits typical brightness, 50-point multi-touch and Android 16.0. Procure.ae supplies it across the UAE as an authorised reseller.

The IPS panel is 3840 x 2160 with 600 nits typical brightness, 10-bit colour depth and a 72% NTSC colour gamut, with a 1,200:1 static contrast ratio and 30,000:1 dynamic. Touch supports up to 50 points with a response time of 2 ms or less. Processing comes from quad-core Cortex-A76 and Cortex-A55 processors, with 8 GB RAM and 128 GB storage. Image processing covers 3D noise reduction, face detection, automatic white balance and shadow correction. Audio processing includes echo cancellation, noise reduction and sound source localisation.

The model is also listed as DS-D5C98RB/B2L(EDLA). It suits classrooms, meeting rooms and training spaces where the camera and microphone array are needed alongside annotation and casting. The camera switches between the Android system, an OPS module and an external PC. The microphone array has echo reduction and noise cancellation with a 12 m voice distance. Video conferencing software is recommended on the Windows system.

Screen Size
98 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
600 nits (typical)
Type
Interactive Flat Panel
  • 50-point touch
  • 48 MP camera
  • Eight-array microphone
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
50-point touch
up to 50-point multi-touch with 2 ms or less response and ±0.5 mm precision.
02
48 MP camera
photos at 48 MP and video at 8 MP, up to 4K, with a 93.4° diagonal field of view.
03
Eight-array microphone
an omnidirectional 8-array layout with echo reduction and noise cancellation.
04
12 m voice pickup
the microphone array picks up voices at up to 12 m.
05
Android 16 system
Android 16.0 runs on 8 GB RAM and 128 GB storage, with 16 GB and 256 GB options.
06
Windows option
an optional 195 x 30 x 180 mm OPS module runs Windows.
07
Built-in whiteboard
handwriting recognition, graphics recognition and document insertion.
08
WonderCast screen casting
casts from up to 9 devices at the same time.

Specifications

52 specifications
General
Key Features4K UHD, 50-point multi-touch, Android 16 with optional Windows OPS, built-in camera and microphone array, built-in whiteboard, WonderCast casting for up to 9 devices, built-in network switch
ModelDS-D5C98RB/B2L
TypeInteractive Flat Panel
What's in the BoxWall mount bracket, hook, user manual, touch pen, 3 m touch USB cable, 3.5 m HDMI cable, 3 m power cable, remote control, cleaning cloth
Display
Aspect Ratio16:9
BacklightDLED
Brightness600 nits (typical)
Camera48 MP photo, 8 MP video, up to 4K, 93.4° diagonal field of view
Color Depth10 bit
Color Gamut72% NTSC (typical)
Contrast Ratio1,200:1 (static); 30,000:1 (dynamic)
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time5 ms
Screen Size98 inch
Touch Accuracy±0.5 mm
Touch Points50-point multi-touch
Touch Resolution32768 x 32768
Touch Response Time2 ms or less
Viewing Angle178° horizontal / 178° vertical
Performance
Duty Cycle7 x 16 hours
Operating SystemAndroid 16.0
ProcessorQuad-core Cortex-A76 at 2.4 GHz and quad-core Cortex-A55 at 1.8 GHz; Mali-G610 MC4 GPU
RAM8 GB (16 GB optional)
Storage128 GB (256 GB optional)
Audio
Audio InAudio × 1
Audio OutAudio × 1, SPDIF × 1
MicrophoneOmnidirectional 8-array, 12 m voice distance, echo reduction and noise cancellation
Speaker Output2 x 20 W + 25 W
Connectivity
BluetoothBluetooth 5.4 (BLE)
ConnectivityWi-Fi 6 (2 x 2 MIMO), Bluetooth 5.4, NFC card reader (13.56 MHz)
EthernetLAN (1000 Mbps) × 2
HDMI InputsHDMI 2.1 × 3 (front × 1, rear × 2)
HDMI OutputsHDMI 2.1 × 1
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOptional OPS (195 x 30 x 180 mm)
ProtocolsHDCP 2.3, 2.0, 1.4; HDMI CEC
Serial PortRS232 × 1
Touch USB PortsTOUCH-USB 3.0 × 1 (front), TOUCH-USB 2.0 × 2 (rear)
USB PortsUSB 3.0 × 4, USB 2.0 × 1
USB-C PortsType-C × 2 (DP 1.2 input, 100 W charging)
VGA InputVGA × 1
Power
Power ConsumptionUnder 325 W (average)
Standby Power0.5 W or less
Physical
Dimensions2219.8 x 1341.35 x 104.61 mm (without wall attachment)
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
Surface Protection9H pencil hardness, 7 Mohs; anti-glare and anti-fingerprint glass, 25% haze
VESA Mount1000 x 400 mm (4 × M8, 20 mm)
Weight100.6 kg (net)
Compliance
CertificationsCE, CB, LOA, EDLA

Downloads

Manufacturer documents for the Hikvision WonderHub Select 98-inch 4K Interactive Flat Panel – DS-D5C98RB/B2L — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

Does the DS-D5C98RB/B2L have a built-in camera and microphone?
Yes. It has a 48 MP photo and 8 MP video camera that supports up to 4K, with a 93.4° diagonal field of view. An omnidirectional eight-array microphone with echo reduction and noise cancellation has a voice distance of 12 m.
Can the camera switch between systems?
Yes. The camera function switches between the Android system, the OPS module and an external PC. Android 16.0 is built in, and Windows runs through the optional 195 x 30 x 180 mm OPS module.
Do I need an external network switch?
No. The display has a built-in network switch chip and two 1000 Mbps LAN ports, plus Wi-Fi 6 with 2 x 2 MIMO on 2.4 GHz and 5 GHz. Bluetooth 5.4 is also built in.
Is it suited to classrooms and meeting rooms?
Yes. The camera, 8-array microphone, 50-point touch and built-in whiteboard suit classrooms and meeting rooms that combine video conferencing with annotation. AI Assistant, AI Identify and AI Notes come free for one year.
How is it wall-mounted?
It uses a 1000 x 400 mm VESA pattern with four M8 screws, 20 mm deep, and a wall mount bracket and hook are in the box. Without the wall attachment it measures 2219.8 x 1341.35 x 104.61 mm and weighs 100.6 kg net, so confirm the wall structure can carry that load before mounting.
Can I buy the DS-D5C98RB/B2L in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
