HikvisionDigital SignageSKU DS-D6065UN-DL

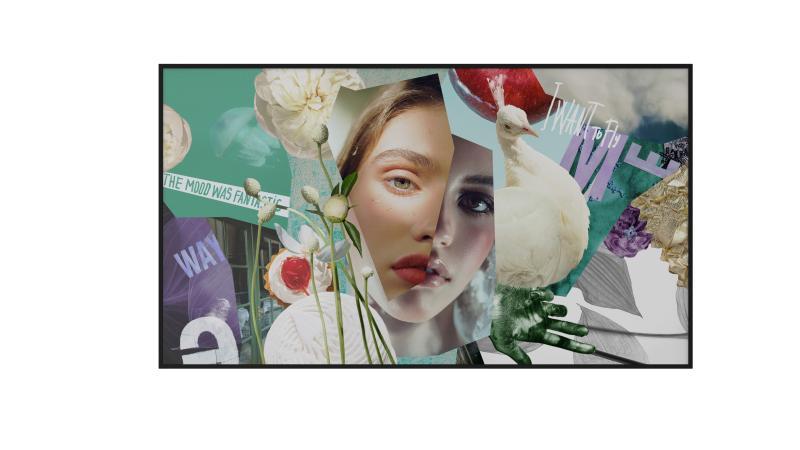

Hikvision 65-inch 4K Digital Signage Display – DS-D6065UN-DL
The Hikvision DS-D6065UN-DL is a 65-inch 4K UHD digital signage display with a D-LED backlight, 4,000:1 contrast and Android 13. It suits lobbies, retail walls and meeting areas that need scheduled content and central management. Procure.ae supplies the DS-D6065UN-DL in the UAE, with quotes, delivery and installation.
The 3840 x 2160 panel delivers 500 nits brightness and 4,000:1 contrast, with 10-bit colour depth (8-bit with FRC), an 85% NTSC colour gamut, a 178° viewing angle and 8 ms response time. A quad-core Cortex-A55 processor at 1.92 GHz runs Android 13 with 4 GB RAM and 32 GB eMMC storage. It plays pictures, video, audio, PDF, web pages, scrolling subtitles and live video, with two 10 W speakers for built-in audio.
Playback can be scheduled by day, by week, by loop or as custom plays, and one screen or many can be controlled remotely, including timed startup, shutdown and brightness and volume adjustment. Five-level organisation permissions and three-level checks on materials, programs and schedules help prevent wrong releases. Inputs are HDMI 2.0 (HDCP 2.2) × 3 and DisplayPort 1.2 × 1, with RJ45, Wi-Fi, Bluetooth 5.4 and RS232 control.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- 4K UHD panel
- D-LED backlight
- HDMI 2.0 inputs
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD panel
3840 x 2160 resolution with 500 nits brightness and a 178° viewing angle.
02
D-LED backlight
Direct-lit D-LED backlight with 4,000:1 contrast ratio.
03
HDMI 2.0 inputs
Three HDMI 2.0 inputs with HDCP 2.2 and one DisplayPort 1.2 input.
04
Android 13 platform
Quad-core Cortex-A55 processor at 1.92 GHz with 4 GB RAM and 32 GB eMMC storage.
05
Scheduled playback
Day, week, loop and custom play modes across several content types.
06
Central management
Remote control of one or many screens, with timed power and brightness settings.
07
Content safeguards
Three-level checks on materials, programs and schedules before release.
08
Wired and wireless networking
RJ45, Wi-Fi 802.11 a/b/g/n/ac/ax, Bluetooth 5.4 and RS232 in and out.
Specifications
34 specificationsGeneral
Key FeaturesAndroid 13, centralised remote management, scheduled playback, multi-level user permissions, encrypted storage, built-in speakers, Wi-Fi, Bluetooth
ModelDS-D6065UN-DL
TypeDigital Signage Display
What's in the BoxDigital signage, wall-mounted backboard, power cord, RS232 cable, remote control, user manual, quick start guide
Display
BacklightD-LED
Brightness500 nits
Color Depth10-bit (8-bit + FRC)
Color Gamut85% NTSC
Color Temperature10,000 K
Contrast Ratio4,000:1
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size65 inch
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemAndroid 13
ProcessorCortex-A55 quad-core, 1.92 GHz
RAM4 GB
Storage32 GB eMMC
Audio
Speaker Output2 x 10 W (6 ohm)
Connectivity
BluetoothBluetooth 5.4
HDMI InputsHDMI 2.0 (HDCP 2.2) × 3
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3, DisplayPort In × 1, RJ45 × 1, RS232 In × 1, RS232 Out × 1
USB PortsUSB 2.0 × 1, USB 3.0 × 1
Wi-Fi802.11 a/b/g/n/ac/ax, 2.4G/5G
Power
Power Consumption180 W (typical), 240 W (max)
Standby Power≤ 0.5 W
Physical
Dimensions1457.7 x 832.4 x 68.8 mm (without backboard)
MountingWall mounting (horizontal or vertical)
Operating Humidity10% to 80% RH (condensation)
Operating Temperature0 to 40 °C
Shipping Weight28.4 kg (gross)
Weight17.7 kg (net)
Downloads
Manufacturer documents for the Hikvision 65-inch 4K Digital Signage Display – DS-D6065UN-DL — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What resolution and brightness does the DS-D6065UN-DL have?
It has a 3840 x 2160 (4K UHD) resolution and 500 nits brightness, with 4,000:1 contrast and a 178° viewing angle both horizontally and vertically. It is listed in the Wall-Mounted Series.
Can it be mounted on a wall in portrait orientation?
Yes. The manufacturer lists wall mounting horizontally or vertically, and the package includes a wall-mounted backboard with mounting bolts. The unit measures 1457.7 x 832.4 mm, and 68.8 mm deep without the backboard or 88.8 mm with it.
Does it need a separate media player?
No. It runs Android 13 on its own processor with 4 GB RAM and 32 GB storage, so it can play pictures, video, audio, PDF, web pages and live video from its own storage on a schedule.
Which HDMI version does it support?
It has three HDMI 2.0 inputs with HDCP 2.2 support, plus one DisplayPort 1.2 input. The manufacturer lists these as video and audio inputs, with LINE OUT available for external audio.
Which ports does it have?
It has HDMI 2.0 × 3, DisplayPort 1.2 × 1, RJ45, RS232 In and RS232 Out, USB 2.0 and USB 3.0, and LINE OUT. Wi-Fi and Bluetooth 5.4 are built in.
