Hikvision

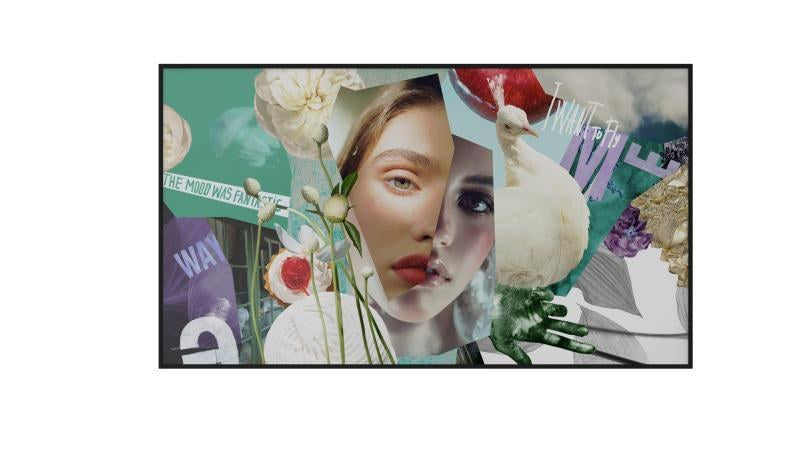

Hikvision 55-inch Digital Signage Display – DS-D6055UN-DL

Name: Hikvision 55-inch Digital Signage Display – DS-D6055UN-DL
Brand: Hikvision
SKU: DS-D6055UN-DL
Availability: InStock

The Hikvision DS-D6055UN-DL is a 55-inch 4K UHD digital signage display for wall-mounted use in retail, lobbies and corporate reception areas. It offers 500 nits brightness, a 4,000:1 contrast ratio and an Android 13 player with 4 GB RAM. Procure.ae supplies the Hikvision DS-D6055UN-DL across the UAE.

The 55-inch panel has a 3840 x 2160 (4K UHD) resolution, 500 nits brightness, 85% NTSC colour gamut, 178° viewing angles and an 8 ms response time at 60 Hz. The D-LED backlight and 10-bit (8-bit + FRC) colour depth support images, video and scrolling text. The built-in player runs Android 13 on a quad-core Cortex-A55 processor at 1.92 GHz, with 4 GB RAM and 32 GB eMMC storage, and plays pictures, audio, video, scrolling subtitles, PDF files, webpages and live video.

The DS-D6055UN-DL measures 1238.4 x 709.2 x 70 mm without its wall-mounted backboard and 99.8 mm deep with it, and weighs 13 kg net. It mounts horizontally or vertically on the included backboard, with mounting bolts supplied. Networking uses RJ45, 2.4/5 GHz Wi-Fi and BT 5.4, with RS232 in and out ports for control. Power draw is 134 W typical and 195 W maximum. The slim DS-D6055UN-DP uses an E-LED backlight and draws 75 W typical.

Screen Size

55 inch

Resolution

3840 x 2160 (4K UHD)

Brightness

500 nits

Type

Digital Signage Display

Large 4K display
Colour performance
Media playback

Price

On request · best price

WhatsApp Call

Download spec sheet (PDF)

Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond

Manufacturer warrantyBacked by the brand

InstallationArranged on request

Key features

Large 4K display

3840 x 2160 resolution on a 55-inch panel with 500 nits brightness.

Colour performance

10-bit (8-bit + FRC) colour depth and 85% NTSC colour gamut.

Media playback

Plays pictures, audio, video, scrolling subtitles, PDF files, webpages and live video.

Flexible scheduling

Day, week, loop and custom play modes for multiple materials per program.

Centralised management

Remotely controls one or more screens, with timed start-up, shutdown and brightness and volume adjustment.

Five-level organisation

Permissions for materials, programs, terminals and users, with permission templates.

Android 13 platform

Quad-core Cortex-A55 at 1.92 GHz, with 4 GB RAM and 32 GB eMMC storage.

Specifications

41 specifications

General

Key FeaturesAndroid 13 player, centralised remote management, five-level permissions, day, week, loop and custom scheduling, live video playback

ModelDS-D6055UN-DL

TypeDigital Signage Display

What's in the BoxDisplay, wall-mounted backboard with bolts, EU power cord, RS232 cable, remote control, user manual, quick start guide, logo stickers, energy label

Display

BacklightD-LED

Brightness500 nits

Color Depth10 bit (8 bit + FRC)

Color Gamut85% NTSC

Color Temperature10000 K

Contrast Ratio4,000:1

Refresh Rate60 Hz

Resolution3840 x 2160 (4K UHD)

Response Time8 ms

Screen Size55 inch

Viewing Angle178° (H) / 178° (V)

Performance

Operating SystemAndroid 13

ProcessorCortex-A55 quad-core, 1.92 GHz

RAM4 GB

Storage32 GB eMMC

Storage Conditions-20 to 60 °C; 10% to 90% RH (condensation)

Audio

Audio CodecsMPEG, APE, FLAC, AAC, OGG, AIF, AIFF, ALAW, ALAC

Audio OutLINE OUT × 1

DisplayPortDisplayPort 1.2 × 1

Speaker Output6 Ω, 10 W × 2

Connectivity

BluetoothBT 5.4

EthernetRJ45 × 1

HDMI InputsHDMI 2.0 (HDCP 2.2) × 3

Input Voltage100–240 V AC, 50/60 Hz

Serial PortRS232 in × 1, RS232 out × 1

USB PortsUSB 2.0 × 1, USB 3.0 × 1

Wi-Fi2.4 GHz / 5 GHz, 802.11 a/b/g/n/ac/ax

Power

Power Consumption134 W (typical), 195 W (max)

Standby Power0.5 W or less

Physical

Dimensions1238.4 x 709.2 x 70 mm (without backboard)

Duty Cycle7 × 24 hours

MountingWall mount, horizontal or vertical

Operating Humidity10% to 80% RH (condensation)

Operating Temperature0 to 40 °C

Shipping Dimensions1390 x 830 x 144 mm

Shipping Weight19.5 kg

Weight13 kg

Downloads

Manufacturer documents for the Hikvision 55-inch Digital Signage Display – DS-D6055UN-DL — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

Is the DS-D6055UN-DL a 4K display?

Yes. It has a 3840 x 2160 (4K UHD) resolution, 500 nits brightness, a 4,000:1 contrast ratio and 10-bit (8-bit + FRC) colour depth. Its 60 Hz refresh rate and 8 ms response time suit video and moving content.

What content can the DS-D6055UN-DL play?

It plays pictures, audio, video, scrolling subtitles, PDF files, webpages and live video. The manufacturer lists audio formats including MPEG, APE, FLAC, AAC, OGG, AIFF and ALAC, and content is scheduled by day, week, loop or custom play modes.

Can the DS-D6055UN-DL be managed across several screens?

Yes. Centralised management remotely controls and manages one screen or more screens, with timed start-up and shutdown, timed brightness and volume adjustment and screenshot preview. Five-level organisation permissions control which users can manage materials, programs and terminals.

How is the DS-D6055UN-DL mounted and how large is it?

It mounts on a wall horizontally or vertically using the included backboard. The display measures 1238.4 x 709.2 x 70 mm without the backboard and 99.8 mm deep with it, and weighs 13 kg net. Procure.ae can advise on wall preparation and installation for your site.

Does the DS-D6055UN-DL support RS232 control and Bluetooth?

Yes. It has RS232 in and RS232 out ports, and the package includes an RS232 cable and a remote control. The built-in Bluetooth module is BT 5.4, alongside RJ45 and 2.4/5 GHz Wi-Fi on 802.11 a/b/g/n/ac/ax.
