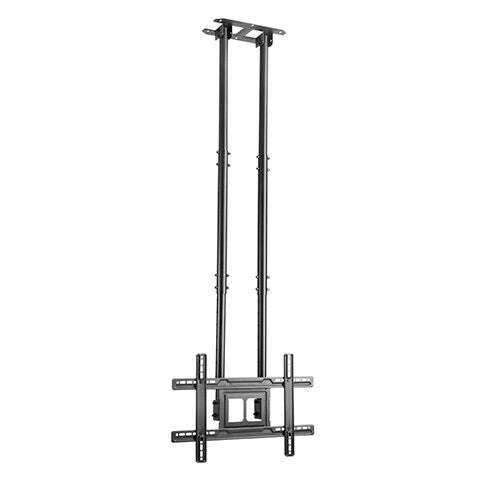

VSYS VCM-CE1046D-02 Double-Pole Ceiling TV Mount for 37"–80" Displays, 70 kg
- Model: VCM-CE1046D-02
- SKU: VCM-CE1046D-02
Actual Stock & Price Can Be Confirmed After Placing the Order.
The VSYS VCM-CE1046D-02 is a twin-pole ceiling mount for 37"–80" displays weighing up to 70 kg, available in the UAE from Procure.ae.Where there is no usable wall — open-plan concourses, retail floors, trading desks, gyms and airport halls — the screen has to come... See More
The VSYS VCM-CE1046D-02 is a twin-pole ceiling mount for 37"–80" displays weighing up to 70 kg, available in the UAE from Procure.ae.
Where there is no usable wall — open-plan concourses, retail floors, trading desks, gyms and airport halls — the screen has to come down from the structure. The VCM-CE1046D-02 does that on two steel poles rather than one, spreading the load and, more importantly, resisting the rotation a single column allows. The result is a large screen that stays where it is aimed, even in a busy public space.
Drop is set anywhere between 695 mm and 1565 mm below the ceiling using the telescoping poles, which lock at the chosen height. The VESA plate detaches so the display can be bolted up at ground level and then lifted onto the poles — far safer than working a 70 kg panel overhead. Once seated, the plate swivels for aim and tilts from +3° to -20°, which matters when the audience is well below the screen. Cabling runs inside the poles for a clean line, and the ceiling plate fixes to a joist or concrete slab.
It is supplied to corporate, education, retail and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features
- Twin-pole construction spreads the load and resists rotation under a large screen.
- Supports 37"–80" displays up to 70 kg.
- Telescoping drop from 695 mm to 1565 mm, lockable at the chosen height.
- Detachable VESA plate — fit the display at ground level, then lift and seat it.
- Swivel adjustment for aim, plus +3° to -20° tilt for downward viewing angles.
- Cabling routed internally through the poles for a clean finish.
- Ceiling plate fixes to timber joist or concrete slab.
- Steel construction with black powder-coated finish.

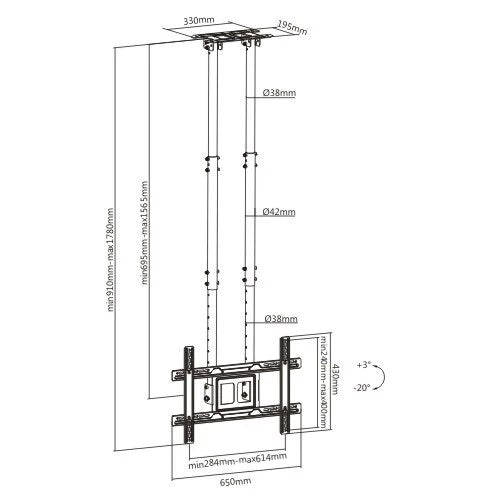

Technical Specifications
| Screen size range | 37" – 80" |
| Load capacity | 70 kg (154 lbs) |
| VESA compatibility | Up to 600x400 mm |
| Drop range | 695 mm – 1565 mm (27.4" – 61.6") below ceiling |
| Tilt | +3° / -20° |
| Swivel | Yes, adjustable at the VESA plate |
| Material & finish | Double-pole steel, black powder coat |
| Cable management | Internal, routed through poles |
| Ceiling fixing | Joist or concrete slab |
| In the box | Ceiling plate, twin telescoping poles, detachable VESA plate, hardware kit, installation instructions |
Ideal for: airport and transport concourses, retail floors, showrooms, gyms, trading floors, hotel lobbies and open-plan offices across Dubai, Abu Dhabi, Sharjah and the wider GCC.
| Name | VSYS VCM-CE1046D-02 Double-Pole Ceiling TV Mount for 37"–80" Displays, 70 kg |
| Mounting Type | Ceiling mount |
| Screen Size Support | 37" - 80" |
| Product Type | Double-pole ceiling TV mount |
| Screen Size Range | 37" - 80" |
| Load Capacity | 70 kg (154 lbs) |
| VESA Compatibility | Up to 600x400 mm |
| Movement | Tilt and swivel |
| Tilt | +3 to -20 degrees |
| Swivel | Adjustable at the VESA plate |
| Drop Range | 695 mm - 1565 mm (27.4" - 61.6") below ceiling |
| Material and Finish | Double-pole steel, black powder coat |
| Mounting Interface | Timber joist or concrete slab |
| Cable Management | Internal, routed through poles |
| Testing and Certification | Strength tested |
| In the Box | Ceiling plate, twin telescoping poles, detachable VESA plate, hardware kit, installation instructions |
| Country of Origin | China |
| MPN | VCM-CE1046D-02 |
| Model | VCM-CE1046D-02 |
No datasheet available.
Frequently Asked Questions
Where can I buy the VSYS VCM-CE1046D-02 ceiling mount in the UAE?
Procure.ae supplies the VSYS VCM-CE1046D-02 across the UAE, with delivery to Dubai, Abu Dhabi, Sharjah and the wider GCC and procurement-ready quotations for project quantities.
How far below the ceiling can the screen hang?
The telescoping poles set the display between 695 mm and 1565 mm below the ceiling and lock at the height you choose.
Why a double pole rather than a single one?
Two poles spread the load and resist the twisting a single column permits, which keeps a large screen pointed where it was aimed — valuable in busy public areas.
Is it difficult to install a 70 kg screen overhead?
The VESA plate detaches, so the display can be bolted to it at ground level and then lifted onto the poles. We recommend this is carried out by a competent installer, and we can arrange installation on request.
What ceiling does it need?
The ceiling plate fixes to a timber joist or a concrete slab. Suspended tile ceilings need a structural fixing above the grid — send us your ceiling build-up and we will advise.
