VSYS VS02D-696 Heavy-Duty Full-Motion TV Wall Mount for 60"–120" Displays, 120 kg
- Model: VS02D-696
- SKU: VS02D-696
Actual Stock & Price Can Be Confirmed After Placing the Order.
The VSYS VS02D-696 Heavy-Duty Full-Motion TV Wall Mount carries flat or curved displays from 60" to 120" weighing up to 120 kg, and is available in the UAE from Procure.ae.Large-format screens are heavy, and the further they extend from the wall the harder the... See More
The VSYS VS02D-696 Heavy-Duty Full-Motion TV Wall Mount carries flat or curved displays from 60" to 120" weighing up to 120 kg, and is available in the UAE from Procure.ae.

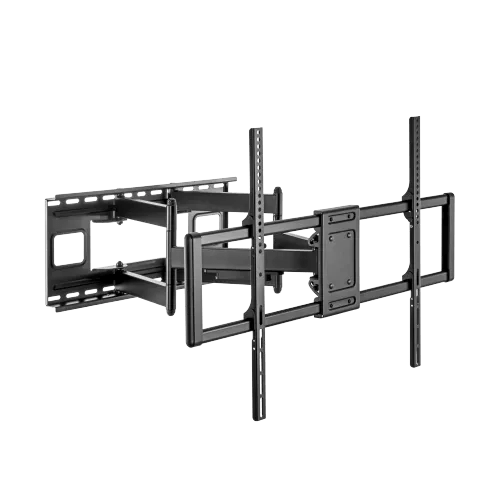

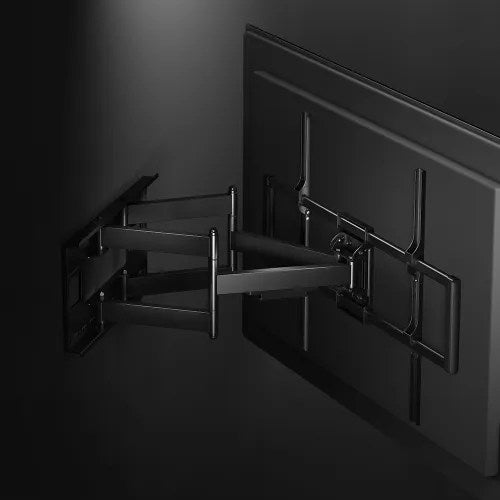

Large-format screens are heavy, and the further they extend from the wall the harder the bracket has to work. The VS02D-696 is engineered for exactly that duty: a powder-coated steel articulating arm that pulls a 120 kg display from 75 mm at the wall out to 703 mm, then swivels 60° to either side so the picture can be aimed down a room or across a boardroom table. Tilt runs from +5° to -15° for glare control, and a separate ±5° levelling adjustment lets the installer true the screen after the plate is fixed — useful when the wall itself is not perfectly square.
A quick-release latch secures the display to the arm and frees it again for servicing without disturbing the wall plate, so rear ports stay reachable through the life of the installation. The plate spans dual studs at 406 mm, 450 mm or 600 mm centres and fixes equally to concrete or block, and the assembly is load tested to three times its rated capacity.
It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features
- Carries 60"–120" flat or curved displays up to 120 kg.
- Extends from 75 mm to 703 mm from the wall for full room coverage.

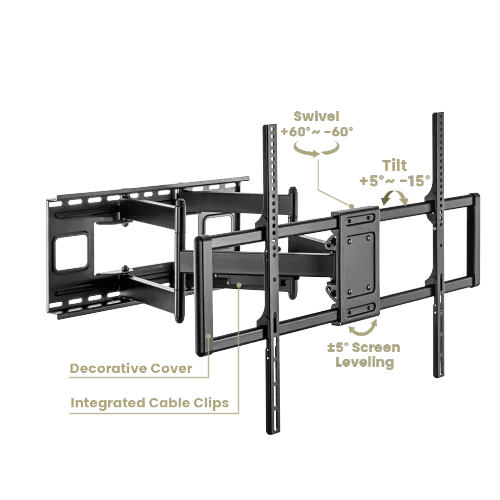

- Swivels +60° / -60° and tilts +5° / -15° for viewing-angle and glare control.
- Independent ±5° levelling adjustment to true the screen after installation.

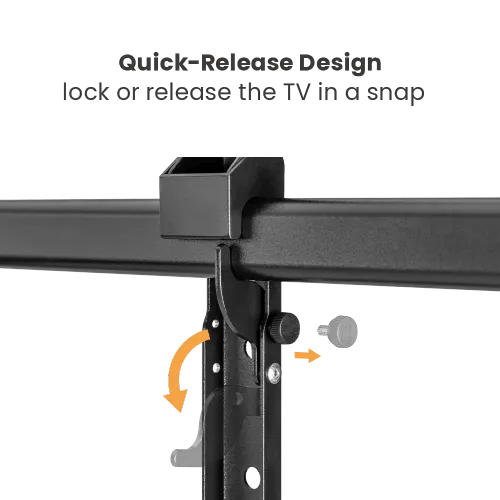

- Quick-release latch frees the display for servicing without removing the wall plate.
- Very wide VESA window from 200x200 mm to 900x600 mm for large-format panels.
- Dual-stud wall plate for 406 mm, 450 mm or 600 mm centres; also fixes to concrete or block.
- Hook-on bubble level supplied for fast, accurate alignment.
- Load tested to three times the rated capacity.
Technical Specifications
| Screen size range | 60" – 120" (flat or curved) |
| Load capacity | Up to 120 kg |
| VESA compatibility | 200x200 mm – 900x600 mm (max hole pattern 910x610 mm) |
| Extension range | 75 mm – 703 mm from wall |
| Swivel | +60° / -60° |
| Tilt | +5° / -15° (free tilting) |
| Levelling | +5° / -5° independent adjustment |
| Material & finish | Powder-coated steel |
| Wall fixing | Dual stud at 406 / 450 / 600 mm centres, concrete or block |
| Testing | Strength tested to 3x rated load |
| In the box | Full-motion arm, dual-stud wall plate, hardware kit, hook-on bubble level, installation guide |
Ideal for: boardrooms, auditoriums, lecture theatres, command centres, showrooms and large-format digital signage across Dubai, Abu Dhabi, Sharjah and the wider GCC.
| Name | VSYS VS02D-696 Heavy-Duty Full-Motion TV Wall Mount for 60"–120" Displays, 120 kg |
| Mounting Type | Wall mount |
| Screen Size Support | 60" - 120" |
| Wall Mount Type | Full motion |
| Product Type | Full-motion TV wall mount |
| Screen Size Range | 60" - 120" (flat or curved) |
| Load Capacity | Up to 120 kg |
| VESA Compatibility | 200x200 mm - 900x600 mm |
| Movement | Full motion (articulating arm) |
| Tilt | +5 to -15 degrees (free tilting) |
| Swivel | +60 to -60 degrees |
| Extension Range | 75 mm - 703 mm from wall |
| Material and Finish | Powder-coated steel |
| Mounting Interface | Dual stud at 406 / 450 / 600 mm centres, concrete or block |
| Testing and Certification | Strength tested to 3x rated load |
| In the Box | Full-motion arm, dual-stud wall plate, hardware kit, hook-on bubble level, installation guide |
| Country of Origin | China |
| MPN | VS02D-696 |
| Model | VS02D-696 |
No datasheet available.
Frequently Asked Questions
Where can I buy the VSYS VS02D-696 full-motion wall mount in the UAE?
Procure.ae supplies the VSYS VS02D-696 across the UAE, with delivery to Dubai, Abu Dhabi, Sharjah and the wider GCC and procurement-ready quotations for project quantities.
How far does the VS02D-696 pull the display off the wall?
The arm extends from 75 mm when folded to 703 mm fully out, and swivels up to 60° in either direction at full extension.
Will it take a curved screen?
Yes. The mount is rated for both flat and curved displays from 60" to 120", up to 120 kg, within a VESA range of 200x200 mm to 900x600 mm.
What wall does it need?
The plate is designed to span dual studs at 406 mm, 450 mm or 600 mm centres, and can also be fixed directly to solid concrete or block. Given the load, a structurally sound substrate is essential — send us your wall build-up if you would like us to advise.
Can the screen be removed for servicing?
Yes. A quick-release latch holds the display on the arm and releases it for removal without unbolting the wall plate, so rear connections remain serviceable.
