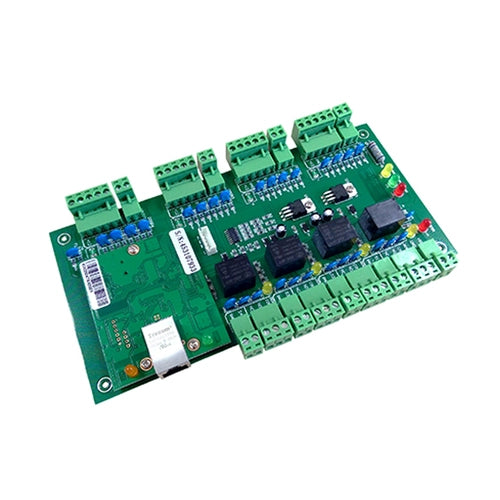

eZon 4-Door Access Control Board (ACM-WEG04)
- SKU: EZ-ACC-HGBI-WEG04
Actual Stock & Price Can Be Confirmed After Placing the Order.
The eZon 4-Door Access Control Board, model ACM-WEG04, is a TCP/IP network access control panel that Procure.ae supplies across the UAE for multi-door buildings.This panel manages up to four doors from a single TCP/IP-connected controller, supporting Wiegand 26 and 34 card readers and storing... See More
The eZon 4-Door Access Control Board, model ACM-WEG04, is a TCP/IP network access control panel that Procure.ae supplies across the UAE for multi-door buildings.
This panel manages up to four doors from a single TCP/IP-connected controller, supporting Wiegand 26 and 34 card readers and storing up to 20,000 cards with 100,000 transaction records for audit and reporting. Anti-passback, time zone scheduling and forced-open alarms give facilities managers control over who can enter which door and when, while the board can keep running from its own local database even if the network connection drops.
It fits offices, warehouses, schools and government buildings across the UAE and GCC that need centralised control over several doors, whether entry points, internal rooms or restricted areas, without paying for a full enterprise access platform. Procure.ae supplies the board together with compatible card readers, cards and locks, and can arrange installation across the UAE.
Key Features
- Controls up to 4 doors: One board manages access for four separate doors.
- TCP/IP network connectivity: Manage and monitor doors over the network.
- Wiegand 26/34 reader support: Works with standard Wiegand card readers.
- 20,000 card capacity: Stores a large user base directly on the board.
- 100,000 transaction records: Keeps a detailed access log for audit purposes.
- Anti-passback and time zones: Restricts re-entry and sets scheduled access windows.
- Forced-open and door-held alarms: Flags doors opened without authorisation.
- Independent local database: Keeps operating on its own database if the network link drops.
Specifications
| Doors Controlled | 1, 2 or 4 (this model: 4-door) |
|---|---|
| Communication | TCP/IP |
| Card Reader Format | Wiegand 26/34 |
| Card Capacity | 20,000 cards |
| Transaction Records | 100,000 |
| Reader Distance | Up to 100m from controller (80m recommended) |
| Security Features | Anti-passback, time zones, forced-open alarm |
| Operation Mode | Independent local database, works without a live network link |
Ideal for: Offices, schools, warehouses and government buildings across the UAE that need centralised TCP/IP control over up to four doors.
General
| Name | eZon 4-Door Access Control Board (ACM-WEG04) |
| Model | EZ-ACC-HGBI-WEG04 |
| Type | 4-Door Access Control Board |
Performance
| Capacity | 20,000 cards, 100,000 transactions |
Connectivity
| Connectivity | TCP/IP, Wiegand 26/34 reader support |
No datasheet available.
Frequently Asked Questions
How many doors can one board control?
This board (ACM-WEG04) controls up to four doors from a single unit; eZon also offers a 2-door version (ACM-WEG02) for smaller installations.
What type of card readers does it support?
It supports standard Wiegand 26 and Wiegand 34 format card readers, and can be paired with eZon's Mifare/EM or UHF readers depending on the card technology in use.
Does it keep working if the network goes down?
Yes, the board holds its own local database and can keep controlling access independently even if the network connection is interrupted.
Can Procure.ae supply the cards and readers to go with this board?
Yes, Procure.ae supplies compatible card readers, access cards and locks that can be specified together with this board for a full installation.
What warranty does this board carry?
It carries the manufacturer's warranty; contact Procure.ae for the exact terms.
