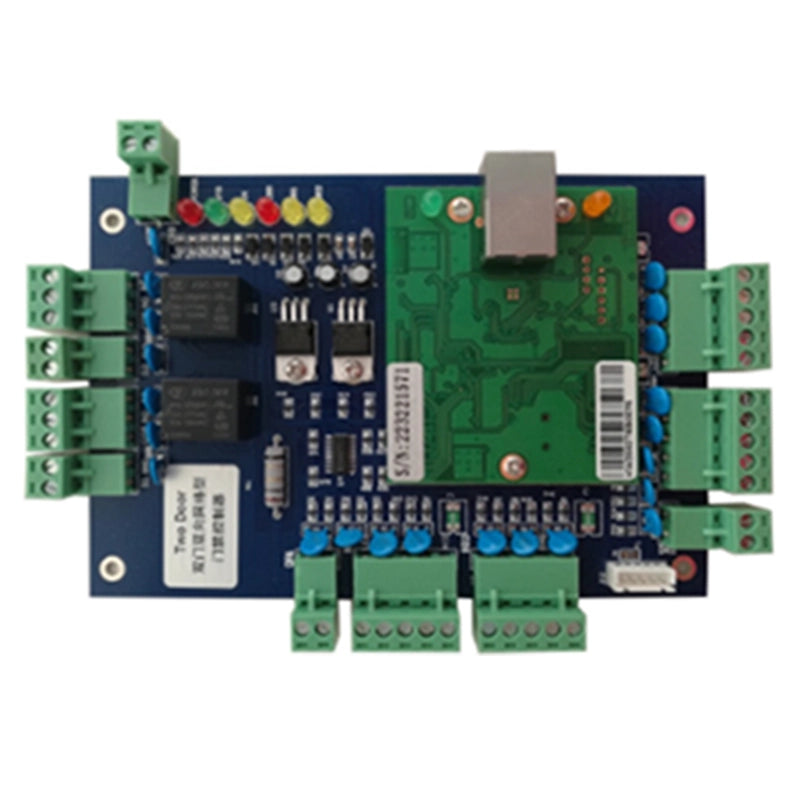

eZon 2-Door Access Control Board (ACM-WEG02)
- SKU: EZ-ACC-HGBI-WEG02
Actual Stock & Price Can Be Confirmed After Placing the Order.
The eZon 2-Door Access Control Board, model ACM-WEG02, is a compact TCP/IP access control panel that Procure.ae supplies across the UAE for smaller multi-door installations.This board manages two doors from a single network-connected controller, supporting Wiegand 26 RFID card readers alongside keypad or password... See More
The eZon 2-Door Access Control Board, model ACM-WEG02, is a compact TCP/IP access control panel that Procure.ae supplies across the UAE for smaller multi-door installations.
This board manages two doors from a single network-connected controller, supporting Wiegand 26 RFID card readers alongside keypad or password entry, so a site can mix card and PIN-based access on the same panel. Anti-passback control and forced-open alarms add an extra layer of security, and like its 4-door sibling it keeps its own local database so access decisions continue even if the network connection drops.
It suits smaller offices, server rooms, retail units and two-entrance buildings across the UAE and GCC that need networked access control without the cost or complexity of a larger multi-door system. Procure.ae supplies the board with compatible readers, cards and locks, and can arrange installation across the UAE.
Key Features
- Controls 2 doors: One compact board manages access for two separate doors.
- TCP/IP network connectivity: Manage and monitor doors over the network.
- Wiegand 26 reader support: Works with standard Wiegand 26 card readers.
- Keypad/password entry: Supports PIN-based access alongside card readers.
- Anti-passback control: Restricts re-entry to prevent card sharing or tailgating.
- Forced-open alarms: Flags doors opened without authorisation.
- Independent local database: Keeps operating on its own database if the network link drops.
Specifications
| Doors Controlled | 2 |
|---|---|
| Communication | TCP/IP |
| Card Reader Format | Wiegand 26 |
| Entry Methods | Card reader and/or keypad/password |
| Security Features | Anti-passback, forced-open alarm |
| Operation Mode | Independent local database, works without a live network link |
Ideal for: Small offices, server rooms and two-entrance buildings across the UAE that need networked, card-and-PIN access control.
General
| Name | eZon 2-Door Access Control Board (ACM-WEG02) |
| Model | EZ-ACC-HGBI-WEG02 |
| Type | 2-Door Access Control Board |
Connectivity
| Connectivity | TCP/IP, Wiegand 26 reader support, keypad/password entry |
No datasheet available.
Frequently Asked Questions
How does this differ from the eZon 4-door board?
This board (ACM-WEG02) controls two doors and adds keypad/password entry, while the 4-door board (ACM-WEG04) controls up to four doors with Wiegand 26/34 reader support and higher card/transaction capacity.
Can staff use a PIN instead of a card?
Yes, the board supports keypad or password entry alongside standard Wiegand card readers.
Does it keep working if the network goes down?
Yes, it holds its own local database and can keep controlling both doors even if the network connection is interrupted.
Can Procure.ae supply the readers and cards to go with this board?
Yes, Procure.ae supplies compatible Wiegand card readers, access cards and locks that can be specified together with this board.
What warranty does this board carry?
It carries the manufacturer's warranty; contact Procure.ae for the exact terms.
