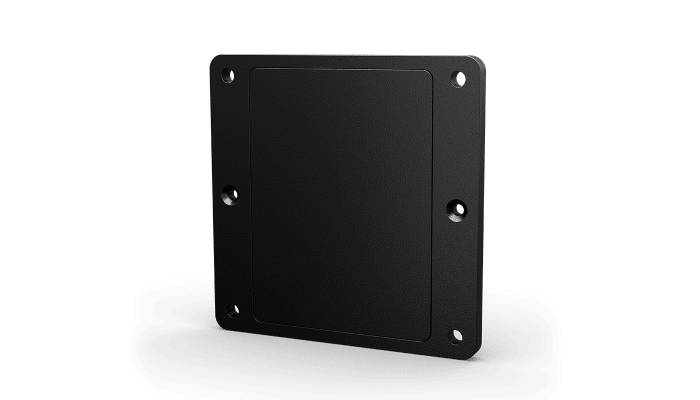

ELO Power-over-Ethernet POE Module for I-Series 4 & 5 - E669163ELO
SKU E669163

ELO Power-over-Ethernet POE Module for I-Series 4 & 5 - E669163

The ELO Power-over-Ethernet POE Module for I-Series 4 & 5 - E669163 is a ifp & meeting accessory available in the UAE from Procure.ae.

Experience seamless connectivity and enhanced efficiency with the ELO Power-over-Ethernet (POE) Module for I-Series 4 & 5. Designed for modern workplaces, this module delivers both power and data through a single cable, reducing clutter and simplifying your setup. Its customizable settings allow you to tailor panel brightness, Wi-Fi/Bluetooth, audio, and USB ports to your exact needs, making it ideal for dynamic retail, hospitality, and commercial applications.

It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Type
Power-Over-Ethernet (PoE) Module
Weight
0.099–0.119 kg
  • Power-over-Ethernet Capability
  • Customizable Settings
  • VESA Mount Compatibility
Price
On request · best price
1
WhatsApp Call
Download spec sheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
Power-over-Ethernet Capability
Delivers both power and data over a single cable for streamlined installations.
02
Customizable Settings
Adjust panel brightness, Wi-Fi/Bluetooth, audio, and multiple USB ports to suit your workflow.
03
VESA Mount Compatibility
Supports 75mm and 100mm VESA mounts for flexible installation options.
04
High Efficiency Power Supply
Achieves up to 85% efficiency with IEEE802.3at and 79% with IEEE802.3bt standards.
05
Multiple USB Connections
Includes USB Type-A, USB Type-C, and MicroUSB ports for versatile device integration.
06
Wide Operating Temperature
Reliable operation from 0°C to 40°C, suitable for various environments.
07
Advanced Protection
Features Over-Temperature Protection (OTP) and Over-Current Protection (OCP) for device safety.
08
Lightweight, Compact Design
Weighs just 0.218 lbs (without spacer), making installation and handling effortless.

Specifications

9 specifications
General
CompatibilityElo I-Series 4 & 5, IEEE 802.3at/802.3bt
TypePower-Over-Ethernet (PoE) Module
Physical
Dimensions115 x 115 x 18.8 mm (with spacer)
Operating Humidity20% to 80% RH
Operating Temperature0°C to 40°C
VESA Mount75 x 75, 100 x 100 mm
Weight0.099–0.119 kg
Compliance
CertificationsFCC, IC, CE, VCCI, RCM
Warranty2 years
