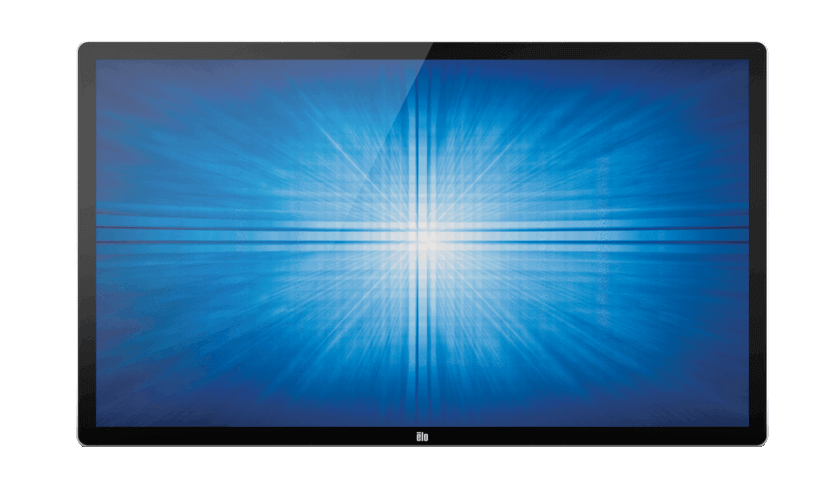

Elo 4602L 46-inch Non-Touch Digital Signage Display – E441095
The Elo 4602L Non-Touch is a discontinued 46-inch Full HD LCD signage display for digital signage in commercial and public spaces. It offers 1920 x 1080 resolution, 500 nits typical brightness and 24-hour operation. The manufacturer lists the 5053L as its replacement. Procure.ae supplies Elo signage displays in the UAE and can confirm current availability.
The 4602L delivers 1920 x 1080 Full HD on a 46-inch active-matrix LCD with LED backlight, a 4,000:1 contrast ratio and a typical 6.5 ms response time. Its 500 nits typical brightness and 178-degree horizontal and vertical viewing angles suit content viewed from different positions. Four 5 W stereo speakers are built in, and the panel displays 16.7 million colors at 60 Hz. The unit is rated for operation 24 hours a day.
The display has a 400 x 400 mm VESA 4-hole mounting interface and can be used in portrait or landscape mode at 0 to 40 °C. Inputs include VGA, two HDMI, DisplayPort and an audio line-in, and the manufacturer lists RFID support for ISO 14443-A, ISO 14443-B and ISO 15693. Because the 4602L is a non-touch model, it suits content and signage use rather than interactive use.
Screen Size
46 inch
Resolution
1920 x 1080 (Full HD)
Brightness
500 nits
Type
Non-Touch Digital Signage Display
- Full HD panel
- Brightness and contrast
- Fast response
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Full HD panel
46-inch LCD at 1920 x 1080 resolution with a 16:9 aspect ratio.
02
Brightness and contrast
500 nits typical brightness and a 4,000:1 contrast ratio.
03
Fast response
6.5 ms typical total response time.
04
Wide viewing angles
178 degrees horizontal and vertical.
05
Built-in speakers
Four 5 W stereo speakers with a 3.5 mm headphone output.
06
Continuous operation
Rated for 24 hours a day.
07
VESA mounting
400 x 400 mm, 4-hole interface for wall or stand mounts.
08
RFID support
ISO 14443-A, ISO 14443-B and ISO 15693 protocols listed.
Specifications
30 specificationsGeneral
Key Features46-inch LCD, 1920 x 1080 Full HD, 4,000:1 contrast, 4 x 5 W speakers, 24-hour operation, VESA 400 x 400 mm, RFID support, 3-year warranty
Model4602L Non-Touch
TypeNon-Touch Digital Signage Display
What's in the BoxQIG, HDMI cable, USB cable (Type A to Type B), power cable, IEC 60320-C5 power cables (NA, EU/KR, UK), 3.5 mm audio cable, energy label
Display
Aspect Ratio16:9
Brightness500 nits
Color Depth16.7 million colors
Contrast Ratio4,000:1
Panel TechnologyLCD
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time6.5 ms
Screen Size46 inch
TouchscreenNon-touch
Viewing Angle178° horizontal and vertical
Audio
Speaker Output4 x 5 W stereo speakers
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsVGA, 2 x HDMI, DisplayPort, USB Type B, audio line in, headphone out, RJ45 (OSD remote), GPIO
ProtocolsRFID: ISO 14443-A, ISO 14443-B, ISO 15693
Power
Power Consumption95 W on, 8.7 W sleep, 2.5 W off (120 V, 60 Hz typical)
Physical
ColorBlack
Dimensions1082.8 x 637.4 x 61.6 mm
Duty Cycle24 hours/day
MountingVESA 400 x 400 mm, 4-hole (MIS-F)
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C (portrait or landscape)
VESA Mount400 x 400 mm
Weight23.85 kg (without ECMG2 module)
Compliance
CertificationsUL, FCC Class A, cUL, IC, CB, CE Class A, CCC, EAC, VCCI
Warranty3 years
Downloads
Manufacturer documents for the Elo 4602L 46-inch Non-Touch Digital Signage Display – E441095 — datasheets, manuals, drawings and certificates.
- Datasheet – 4602L Non-Touch
- User manual – IDS 02-Series
- User manual – IDS 02-Series
- Quick start guide – IDS 02-Series
- Quick start guide – Elo IDS 02-Series / IDS 03-Series / IDS 53-Series
- Installation guide – IDS 02-Series
- Drawing – IDS 02-Series
- Drawing – Elo IDS 02-Series / IDS 03-Series
- Energy label – 4602L Non-Touch
- Energy label – 4602L Non-Touch
Questions
Can’t find your answer? Ask on WhatsApp
What is the Elo 4602L Non-Touch used for?
It is a 46-inch Full HD LCD display for digital signage in commercial and public spaces. It has 500 nits typical brightness, a 4,000:1 contrast ratio and a rating for 24-hour operation.
Does the 4602L support touch?
No, this is the non-touch version of the 4602L. Procure.ae can advise on touch-enabled Elo displays in the same size range.
How is the 4602L mounted?
Yes, it mounts through a 400 x 400 mm VESA 4-hole interface, specified as MIS-F, 400, 400, 6 mm. It can be used in portrait or landscape orientation.
Which inputs does it have?
It has VGA, two HDMI and one DisplayPort input, an audio line-in and a GPIO connector. A headphone output and an RJ45 port for the optional OSD remote are also fitted.
