ELOInteractive Flat PanelsSKU E296315

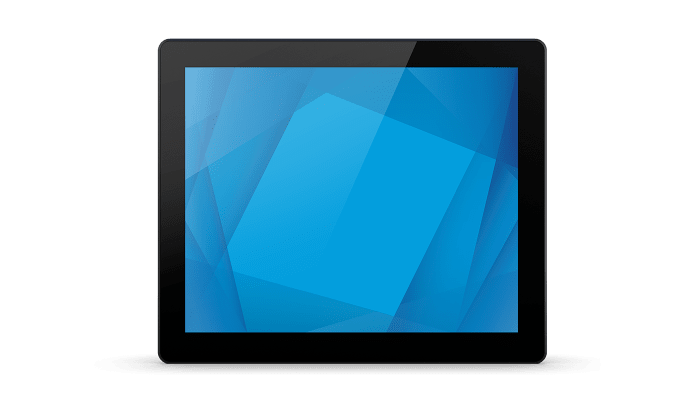

ELO 1790L 17" Open Frame Touchscreen TouchPro PCAP with Bezel (Worldwide)
The ELO 1790L 17" Open Frame Touchscreen TouchPro PCAP with Bezel (Worldwide) is a interactive flat panel available in the UAE from Procure.ae.
Experience seamless interactivity with the ELO 1790L 17" Open Frame Touchscreen , a versatile solution designed for high-performance commercial and industrial environments. Featuring advanced TouchPro PCAP technology , this open frame display ensures ultra-responsive multi-touch capability with superior clarity and durability. The integrated bezel provides added protection and a sleek finish, making it ideal for kiosk integration , interactive displays, and self-service terminals. With its robust construction, the ELO 1790L is engineered for 24/7 operation, delivering reliable touchscreen.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
17 inch
Resolution
1280 x 1024 (SXGA)
Brightness
250 nits
Touch Technology
PCAP / SAW / Resistive
- 17-inch Display
- TouchPro PCAP Technology
- Open Frame Design
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
17-inch Display
Offers a generous viewing area for interactive applications and detailed visuals.
02
TouchPro PCAP Technology
Provides precise and reliable multi-touch capability for seamless interaction.
03
Open Frame Design
Ideal for easy integration into kiosks, gaming machines, and industrial equipment.
04
Durable Bezel
Enhanced protection and a professional finish to withstand rigorous use.
05
Worldwide Compatibility
Supports a wide range of power inputs and certifications for global deployment.
06
Energy-Efficient LED Backlighting
Reduces power consumption while delivering crisp, clear images.
07
Wide Viewing Angles
Ensures excellent visibility from multiple positions for public or shared use.
08
VESA Mount Support
Flexible mounting options for versatile installation in various environments.
Specifications
25 specificationsGeneral
What's in the BoxHDMI Cable, VGA Cable, Touch USB Cable, OSD Remote, Quick Install Guide, EEI Label, Mount Brackets w/Screws
Display
BacklightLED
Brightness250 nits
Color Depth8-bit (16.7 million colours)
Refresh Rate60 Hz
Resolution1280 x 1024 (SXGA)
Screen Size17 inch
Touch Points10-point multi-touch
Touch Response Time5 ms
Touch TechnologyPCAP / SAW / Resistive
Viewing Angle178° (H) / 178° (V)
Connectivity
HDMI InputsHDMI In × 1
Serial PortRS-232 × 1
Touch USB PortsTouch USB × 1
VGA InputVGA × 1
Power
Power Consumption< 9.9 W
Standby Power≤ 0.5 W
Physical
Dimensions368.4 x 306.4 x 47.5 mm
Operating Humidity20% to 80% RH
Operating Temperature0°C to 40°C
Shipping Dimensions476 x 418 x 183 mm
Surface ProtectionAnti-glare
VESA Mount100 x 100 mm
Weight3.6 kg
Compliance
Warranty3 years
Questions
Can’t find your answer? Ask on WhatsApp
What is the ELO interactive flat panel used for?
Experience seamless interactivity with the ELO 1790L 17" Open Frame Touchscreen , a versatile solution designed for high-performance commercial and industrial environments. Featuring advanced TouchPro PCAP technology , this open frame display ensures ultra-responsive multi-touch capability with.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Does this interactive panel support multi-touch and on-screen writing?
Yes — it uses SAW / Resistive / PCAP touch technology, so multiple users can write and interact at the same time.
Can I run apps on it without connecting a PC?
Yes, it has a built-in operating system so you can use apps without a separate PC.
