ELOInteractive Flat PanelsSKU E606323

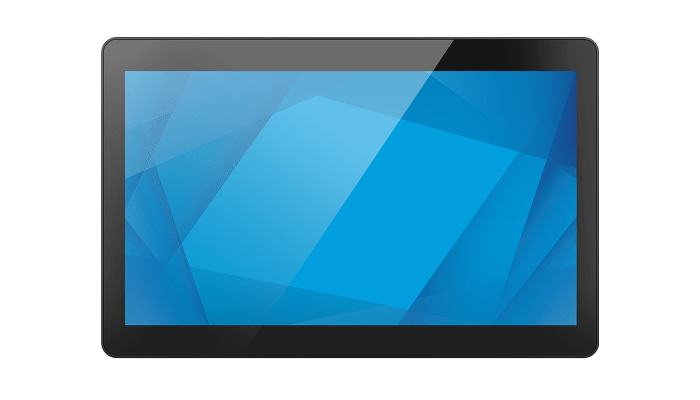

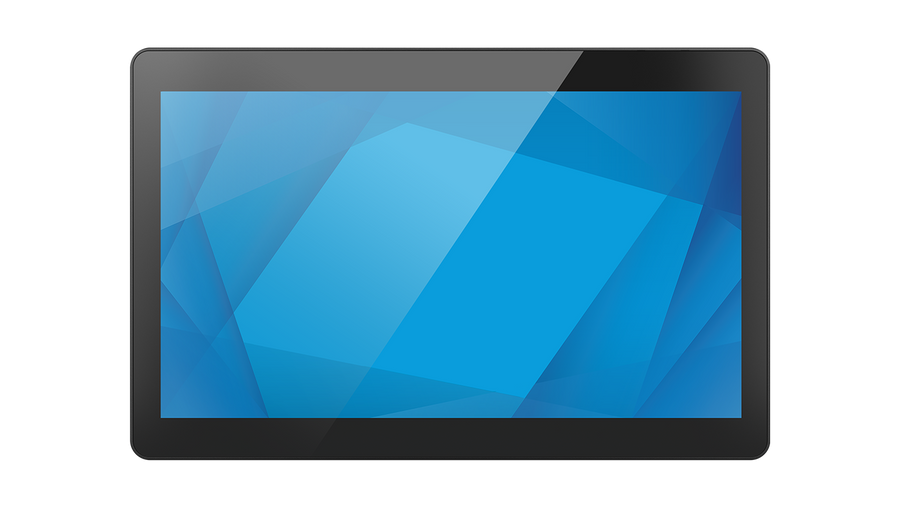

ELO 15-inch (16:9) I-Series 3 with Intel® i5, No OS, 8GB RAM, 128GB SSD, Clear, Without Stand
The ELO 15-inch (16:9) I-Series 3 with Intel® i5, No OS, 8GB RAM, 128GB SSD, Clear, Without Stand is a interactive flat panel available in the UAE from Procure.ae.
Experience seamless performance and versatility with the ELO 15-inch I-Series 3 powered by an Intel i5 processor . Designed for dynamic commercial environments, this all-in-one touchscreen delivers crystal-clear visuals with its 16:9 display and robust 128GB SSD . Boasting 8GB RAM , it ensures fast multitasking and efficient operation for retail, hospitality, or interactive kiosks. The borderless clear display offers vibrant clarity, while the fanless design ensures silent, reliable operation. With no pre-installed OS, you have the flexibility to customize your system for any application. The.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
15.6 inch
Resolution
1920 x 1080 (Full HD)
Brightness
350 nits
Touch Technology
PCAP
- 15-inch Full HD Touchscreen
- Intel i5 Processor
- 8GB DDR4 RAM
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
15-inch Full HD Touchscreen
Enjoy vibrant, crystal-clear visuals and responsive touch controls for engaging user interactions.
02
Intel i5 Processor
Delivers powerful performance for demanding commercial applications and multitasking needs.
03
8GB DDR4 RAM
Ensures smooth multitasking and efficient handling of multiple processes.
04
128GB SSD Storage
Provides rapid data access and reliable storage for applications and files.
05
16:9 Aspect Ratio
Offers a widescreen viewing experience, ideal for multimedia and interactive tasks.
06
Commercial-Grade Durability
Engineered for 24/7 operation in retail, hospitality, and business environments.
07
Fanless Design
Operates silently and reduces dust ingress for enhanced reliability and longevity.
08
No Operating System
Allows for flexible customization with your preferred OS for specific business requirements.
Specifications
42 specificationsGeneral
Key Features10-point PCAP touch, TPM 2.0, IP54 ingress protection, Kensington lock, Serviceable internal components, Touchscreen sealed to LCD, Memory expandable to 64 GB, Intel Active Management Technology
What's in the BoxNorth America Power Cord, European Power Cord, Power Adapter – 180 W, Cable RJ-50 to DB-9, Quick Installation Guide (QIG), Cable tie, VESA mounting screw, 75 mm to 100 mm adapter and mounting screw
Display
Aspect Ratio16:9
BacklightLED
Brightness350 nits
Color Depth8-bit (16.2 million colours)
Contrast Ratio1,000:1
Panel TechnologyLCD
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time25 ms
Screen Size15.6 inch
Touch Points10-point multi-touch
Touch TechnologyPCAP
Viewing Angle170° (H) / 170° (V)
Performance
GraphicsIntel UHD Graphics / Intel Iris Xe Graphics
Operating SystemNo OS
ProcessorIntel Core i5-1245UL with Intel vPro
RAM8 GB
Storage128 GB
Audio
Audio Out3.5 mm headset jack × 1
Speaker Output2 × 2 W
Speaker TypeBuilt-in
Connectivity
BluetoothBluetooth 5.3
EthernetRJ45 (Gigabit) × 1
Input Voltage100–240 V AC, 50/60 Hz
Serial PortSerial × 1 (RJ50, powered)
USB PortsUSB 3.0 × 4
USB-C PortsUSB-C (USB 3.0, DisplayPort, 27 W charging, additional video out)
Wi-FiWi-Fi 6 (802.11ax), 2.4/5/6 GHz
Power
Power Consumption43 W (typical)
Standby Power< 0.5 W
Physical
Dimensions384.1 x 247.7 x 37.2 mm
Operating Humidity20% to 80% RH
Operating Temperature0°C to 35°C
Shipping Dimensions481 x 197 x 345 mm
Shipping Weight6.52 kg
Surface ProtectionAnti-glare
VESA Mount75 x 75 mm
Weight3.6 kg
Compliance
IP RatingIP54
Warranty3 years
Downloads
Manufacturer documents for the ELO 15-inch (16:9) I-Series 3 with Intel® i5, No OS, 8GB RAM, 128GB SSD, Clear, Without Stand — datasheets, manuals, drawings and certificates.
- ELO 15 INCH 16 9 I SERIES 3 WITH INTEL datasheet
- Datasheet – Elo I-Series 3 / I-Series 3 Slate
- User manual – I-Series 3
- Quick start guide – I-Series 3
- Quick start guide – I-Series 3
- Quick start guide – 15-inch (16:9) I-Series 3 with Intel
- Drawing – I-Series 3
- Drawing – 15-inch (16:9) I-Series 3 with Intel
- User manual – I-Series 3 – UM600734
- User manual – I-Series 3 – UM600735
Questions
Can’t find your answer? Ask on WhatsApp
What is the ELO interactive flat panel used for?
Experience seamless performance and versatility with the ELO 15-inch I-Series 3 powered by an Intel i5 processor . Designed for dynamic commercial environments, this all-in-one touchscreen delivers crystal-clear visuals with its 16:9 display and robust 128GB SSD . Boasting 8GB RAM , it ensures fast.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Does this interactive panel support multi-touch and on-screen writing?
Yes — it uses PCAP touch technology, so multiple users can write and interact at the same time.
Can I run apps on it without connecting a PC?
Yes, it has a built-in operating system so you can use apps without a separate PC.
Does it have a built-in camera for video calls?
Request a quote via WhatsApp wa.me/97145465041 or email info@procure.ae.
