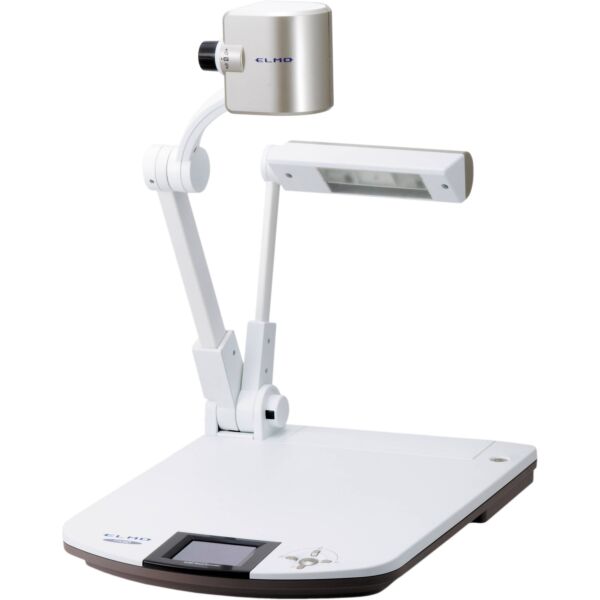

ELMO P30HD Visualiser/Document Camera
- SKU: 1338
Actual Stock & Price Can Be Confirmed After Placing the Order.
OVERVIEW ANNOTATE LIVE IMAGES WITHOUT A COMPUTER The CRA-1 and CRB-1’s wireless adapter can be plugged into the P30HD directly, allowing direct annotation on live images from anywhere in the room without using a computer. 3.4M CMOS & FULL HD (1080p) The P30HD’s megapixel... See More
OVERVIEW
ANNOTATE LIVE IMAGES WITHOUT A COMPUTER
The CRA-1 and CRB-1’s wireless adapter can be plugged into the P30HD directly, allowing direct annotation on live images from anywhere in the room without using a computer.
3.4M CMOS & FULL HD (1080p)
The P30HD’s megapixel image sensor captures everything from fine text to three-dimensional objects in 1080p full HD.
3D NOISE REDUCTION
New developed 3D noise reduction helps to remove picture distortion completely. Crystal clear images can now be shown on a big screen without any flickering in the image.
POWERFUL 128×ZOOM
When the P30HD’s high-magnification 16X optical zoom is combined with its 8X digital zoom, images can be enlarged up to 128 times for the clear, distortion-free display of even the tiniest details. This feature helps the audience improve their understanding of the points made in a lecture or a presentation.

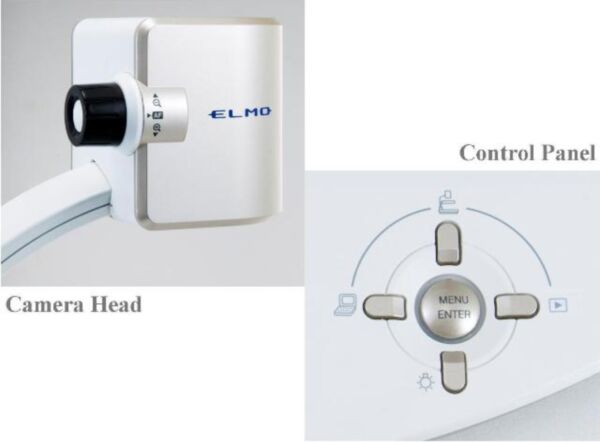

BUILT-IN 3.5-INCH LCD MONITOR
Thanks to the built-in 3.5-inch LCD monitor, you can see before you on the control panel exactly what viewers see behind you on the screen. This way, you can adjust your materials as needed and continue your presentation without ever turning around or missing a beat.
FLEXIBLE FREE-ANGLE CAMERA ARM
Broaden the view and heighten your impact. The flexible camera arm lets you capture your subjects from any angle and focus attention precisely where you want it. Simply lower the arm and rotate the camera head to project an intriguing bottom-to-top look at a three-dimensional object.
30 FPS FOR SMOOTH MOTION DISPLAY
At 30 frames per second, the P30HD smoothly captures and reproduces moving images. The high frame rate helps eliminate the after-images produced when the subject is changed and the stroboscopic effects produced when the zoom adjusts itself or the display subject is moved.
WIRELESS REMOTE CONTROL
The uniquely designed infra-red receiver can pick up a signal from up to a distance of 7m, enabling you to control the P30HD from almost anywhere.
FULL-HD & HDMI OUTPUT
The P30HD’s versatile output connections bring greater freedom and flexibility to presentations. With its full-HD output and HDMI port, for example, the P30HD can be connected to a digital TV via a single cable for the ultra-easy display of full-HD images.
SUPPLIED ELMO INTERACTIVE TOOLBOX SOFTWARE
The P30HD’s USB port makes it easy to transfer ELMO-captured images onto a computer. Bundled EIT ( ELMO Interactive Toolbox software ) provides the annotation tools for highlighting those images with lines, shapes and freehand notes. The EIT software also enables audio-visual recording saved as AVI files and time-lapse photography captured in intervals ranging from one second to 24 hours.

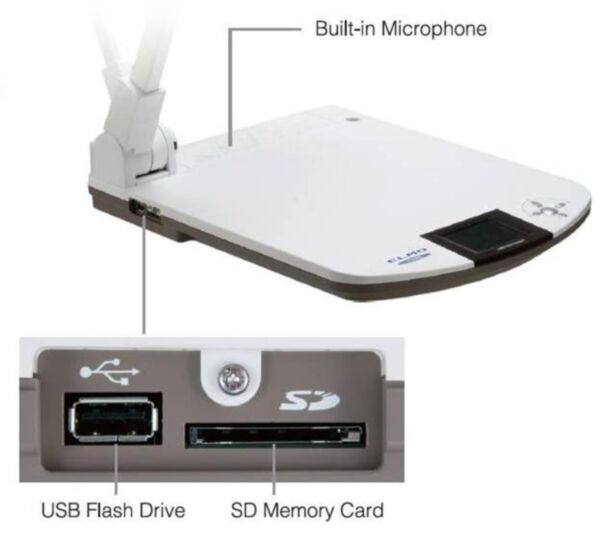

SAVE PRESENTATION ON EXTERNAL MEMORY
Both still images(jpg) and audio video files(mp4) can be saved on a USB flash drive or SD Memory Card for future use. Files may also be saved to a PC or Mac using Image Mate Software(included).
AUDIO INPUT & OUTPUT
With the P30HD, audio enhancement can be added to presentations or lectures via the built-in microphone or an external microphone input (Mic In/Line In). Audio output can be routed to the external HDMI or Audio Line Out port.
RS 232-C
By connecting the RS-232C to a computer, you are able to use the computer to control power (on/off) and other functions.
SPECIFICATIONS
| CAMERA | |
| Image pick-up | 1/2.8" CMOS 3,400,000 pixels |
| Total pixels | (H)2144 x (V)1588 |
| Effective pixels | (H)1920 x (V)1536 |
| Frame rate | 30fps |
| Resolution | Analog RGB :800(H) x 800(V) TV lines or more |
| Optics | |
| Zoom | Powered, 16× Optical |
| Lens | F2.7, f=4.9mm-78.4mm |
| Shooting area | 1080p: Max.400×223mm Min.27×15mm 720p: Max.400×223mm Min.27×15mm SXGA: Max.400×320mm Min.27×22mm WXGA: Max.400×248mm Min.27×17mm XGA: Max.400×299mm Min.27×20mm |
| Focus | Auto/Manual/Zoom Sync |
| Function | |
| White balance | Auto/One-Push/Manual |
| Image mode | Text1/Text2/Text3/Graphics1/Graphics2 |
| Edge Effect | Provided (only for Graphics1 mode) |
| Still Image storage | Provided |
| Movie storage | Provided |
| Digital zoom | 8× |
| Gamma setting | Provided (only for Graphics1 mode) |
| Graphical OSD (On Screen Display) |
Provided |
| Image save | SD memory card/SDHC memory card/USB memory |
| State presetting | Up to 3 user settings |
| Brightness control | Auto/Manual (with level adjustment) |
| Support Function | Highlight, Mask, Scroll (in digital zoom), Mosaic, Split screen, PinP (Picture-in-Pcture), Color filter, Pause, Image rotation (0°/180°), Positive/negative conversion, Color/B&W selection |
| INTERFACE | |
| Input selection | Main/External |
| Output terminal | RGB output mini D-sub 15P connector, femalex1 Composite video output RCA pin jack/75Ω unbalancedx1 HDMI output terminal x1 Line Out terminal φ3.5mmstereo minijack x1 |
| Input terminal | RGB input mini D-sub 15P connector, female x1 Mic In/Line Out terminal (shared), 3.5mm-diameter stereo mini jack x1 |
| Ext. control terminal | USB device (2.0 compliant) Mini-B receptacle x1 RS-232C D-sub 9P connector male ×1 |
| Analog RGB output | 1080p: 1920x1080@60Hz 720p: 1280x720@60Hz SXGA: 1280x1024@60Hz WXGA: 1280x800@60Hz XGA: 1024x768@60Hz |
| HDMI output | Image output: 1080p/720p Audio output: PCM44.1kHz sampling frequency |
| Memory Interface | SD memory card slot x1, USB host (2.0 compliant) Type A receptacle x1 |
| Others | |
| Accessories | AC adapter, AC cord, RGB cable, USB cable (for connecting to PC), Remote control, Strap (for remote control), AAA batteries (for remote control), Slide shooting adapter, Image Mate CD-ROM, Image Mate installation manual, Instruction manual (CD-ROM), Warranty,Important safe guards |
| Power Source | 12V DC (AC adapter AC100-240V) |
| Power consumption | 23.5W (AC adapter included) |
| Dimensions (W×D×H) |
376x482x549mm setup 376x482x181mm folded |
| Weight | Approx. 4.7kg (main unit only) |
