ElmoProjectors & ProjectionSKU L-12F

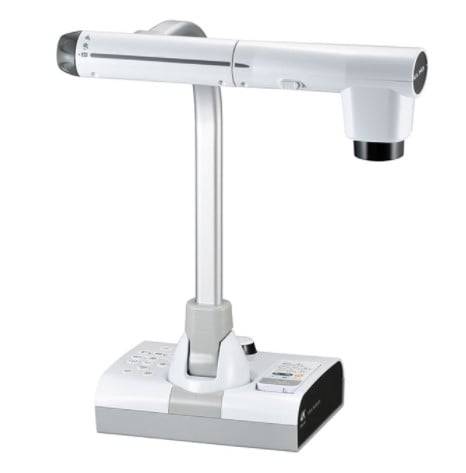

Elmo L‑12F 4K Ultra HD Visualizer – 12× Optical Zoom
The Elmo L‑12F 4K Ultra HD Visualizer – 12× Optical Zoom is a document camera available in the UAE from Procure.ae.
The Elmo L-12F is a powerful and user-friendly 4K Ultra HD document camera designed for classrooms, lecture halls, and business presentations. It captures high-resolution images with its 13-megapixel camera and outputs stunning 4K video at 30fps. With up to 288x total zoom (12x optical + 24x digital), it provides incredible detail, even at extreme magnification. The flexible arm and 180° rotating camera head allow precise positioning for any angle.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Resolution
3840 x 2160 (4K UHD)
Weight
3 kg (main unit)
- 4K Ultra HD Resolution
- 13MP Camera Sensor
- 288x Zoom Capability
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K Ultra HD Resolution
Captures crisp, detailed images and video at 3840 x 2160 for superior clarity.
02
13MP Camera Sensor
High-resolution imaging sensor ensures accurate colors and fine detail capture.
03
288x Zoom Capability
Combines 12x optical and 24x digital zoom for powerful close-ups without loss of quality.
04
Flexible Arm & Rotating Camera Head
Allows 180° rotation and multiple angles for flexible classroom or demo use.
05
Real-Time Annotation Tools
Draw, highlight, and mark up images directly through the document camera.
06
Multiple Connectivity Options
Includes HDMI in/out, USB 3.0, and VGA for easy integration with AV systems.
07
Auto Focus & Image Freeze
Keeps the picture steady and sharp during live sessions.
08
Plug-and-Play Compatibility
Works with Windows, Mac, and Chromebooks without the need for drivers.
Specifications
16 specificationsGeneral
CompatibilityELMO Interactive Toolbox (EIT) software for Windows
Key Features1/2.3" CMOS 8.3 MP sensor, HDMI/RGB pass-through, White LED lighting, Built-in mic, Photo (JPG) / video (MP4) recording
ModelL-12F
What's in the BoxAC adapter, USB cable (USB 3.0), Remote commander, Instruction manual
Display
Camera30 fps @ 4K
Resolution3840 x 2160 (4K UHD)
Zoom288x total (12x optical, 2x sensor, 12x digital)
Performance
StorageSD card slot
Connectivity
ConnectivityHDMI In/Out, USB 3.0, VGA, Audio In/Out

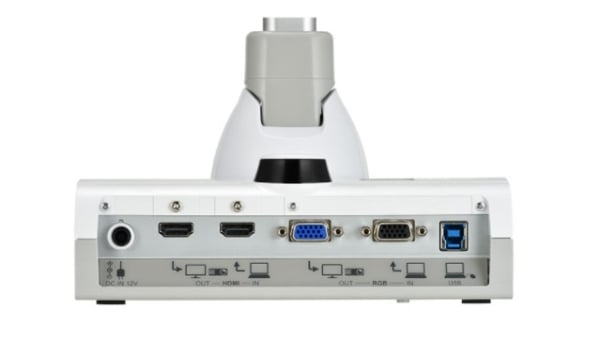

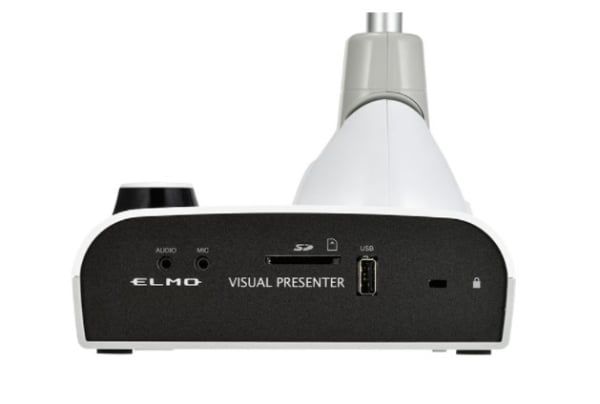

PortsHDMI in/out (v1.4), RGB in/out, USB-A (2.0), USB-B (3.0), Audio out, Mic in, SD card slot
Power
Power Consumption21 W
Power Source12 V DC (AC adapter)
Physical
Dimensions349 x 377 x 432 mm (W x D x H, set-up); folded 195 x 294 x 475 mm
Weight3 kg (main unit)
Compliance
Country of OriginJapan
Warranty5 years
