VSYS VS02E-443 Economical Full-Motion TV Wall Mount for 23"–65" Displays, 30 kgVSYS
SKU VS02E-443

VSYS VS02E-443 Economical Full-Motion TV Wall Mount for 23"–65" Displays, 30 kg

The VSYS VS02E-443 is an economical full-motion wall mount for 23"–65" flat and curved displays weighing up to 30 kg, available in the UAE from Procure.ae.

Small and mid-size screens are usually asked to serve more than one seating position. A monitor on a huddle-room wall has to face both ends of the table; a counter display has to turn toward whoever is standing at it. A fixed bracket cannot do that, and a heavy-duty articulating arm is overspecified for a 30 kg panel. The VS02E-443 sits in that gap, with a folding steel arm load-tested to three times its rated capacity.

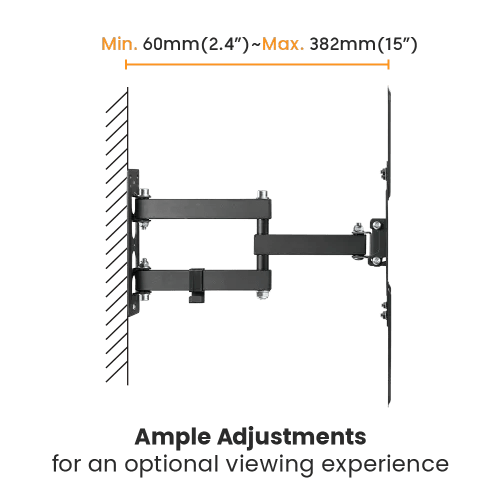

Retracted, the arm folds the display to 60mm from the wall, close enough to read as a flush installation. Extended, it reaches 382mm, then tilts from plus 3 to minus 10 degrees and swivels a full 90 degrees to either side. The plate fixes to a single stud or a solid wall, VESA patterns from 100x100mm to 400x400mm are accepted, and cable clips run along the arm so HDMI and power leads follow the movement instead of snagging on it.

It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Type
Full-Motion Articulating TV Wall Mount

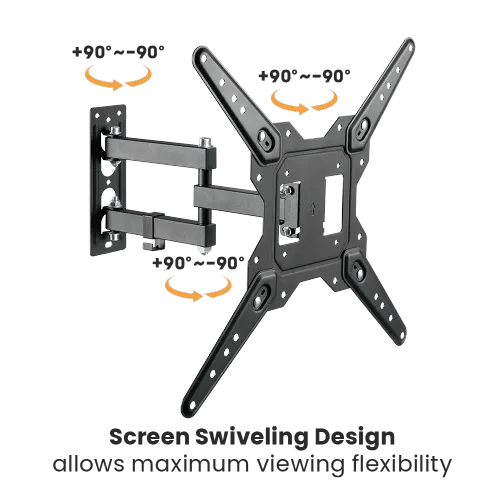

  • Swivels plus 90 to minus 90 degrees, so one screen can serve viewers on either side of a room or counter.

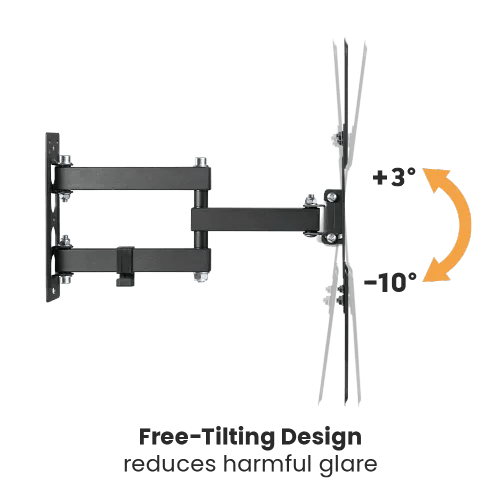

  • Tilt range of plus 3 to minus 10 degrees for correcting glare from windows and ceiling lighting.
  • Folds to 60mm wall clearance when not in use and extends to 382mm when the screen needs to come forward.
Price
On request · best price
1
WhatsApp Call
Download spec sheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
Swivels plus 90 to minus 90 degrees, so one screen can serve viewers on either side of a room or counter.
02
Tilt range of plus 3 to minus 10 degrees for correcting glare from windows and ceiling lighting.
03
Folds to 60mm wall clearance when not in use and extends to 382mm when the screen needs to come forward.
04
Rated for 30 kg and strength-tested to three times that load, which suits the panel weights typical of 23-65 inch displays.
05
VESA 100x100mm to 400x400mm covers most monitors and TVs in this size class, including many curved models.
06
Single-stud or solid-wall fixing, useful in fit-outs where only one stud is available at the required height.
07
Cable clips along the arm keep signal and power leads managed through the full range of travel.
08
Pre-installed direction indicator and detachable panel reduce alignment time during installation.

Specifications

15 specifications
General
Key FeaturesCable clips along the arm
ModelVS02E-443
TypeFull-Motion Articulating TV Wall Mount
What's in the BoxFull-motion arm, Wall plate, Mounting hardware bag, Direction indicator, Installation guide
Display
Supported Screen Sizes23-65" (flat and curved)
Physical
AdjustabilityFull motion, tilt, swivel, extension
Extension60 mm folded to 382 mm extended
FinishPowder-coated
Load Capacity30 kg
MaterialPowder-coated steel
MountingWall mount, single stud or solid wall
Swivel+/-90°
Tilt-10 to +3°
VESA Mount100 x 100 to 400 x 400 mm
Compliance
CertificationsStrength tested to 3 times rated load

Questions

Can’t find your answer? Ask on WhatsApp

How far does the arm move?
It folds to 60mm from the wall and extends to 382mm. At full extension the screen swivels up to 90 degrees left or right and tilts from plus 3 to minus 10 degrees.
Can it be fixed to a single stud?
Yes. The wall plate is sized for a single stud or a solid wall, which is why this model works in partition walls where a wide dual-stud plate will not line up with the intended screen position.
What is the weight limit, and how was it tested?
30 kg. The bracket is strength-tested to three times that figure. Check the display weight on the manufacturer's specification sheet, since panel weights vary considerably even within the same screen size.
Will the cables be damaged when the arm moves?
