Dinstar UC2000-VG-32T 32-Channel LTE VoIP GSM Gateway
The Dinstar UC2000-VG-32T is a 32-channel LTE/GSM VoIP gateway that Procure.ae supplies in the UAE for large offices and call centres that need maximum SIM capacity in a single chassis.

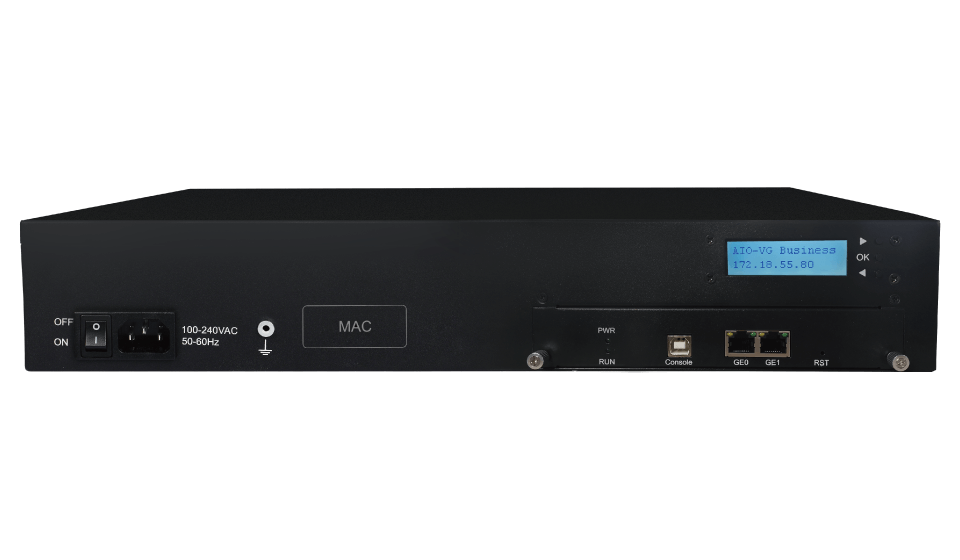

Sitting at the top of Dinstar's UC2000 family, the VG-32T packs 32 hot-swappable SIM slots and a built-in 2.3-inch LCD screen into one unit, so administrators can check status and adjust basic settings directly on the device rather than only through the web GUI. It runs on Dinstar's embedded CPU platform and supports VoLTE alongside 2G/3G fallback, giving it the throughput to carry heavy, continuous mobile-to-VoIP traffic.
It is built for large enterprises, telecom service providers and call centres that would otherwise need several smaller gateways to reach the same SIM capacity. The gateway presents itself to a PBX as a standard SIP trunk, so it integrates with 3CX, Yeastar and other SIP-based platforms, and Procure.ae can support deployment across offices and data centres in the UAE and GCC.
Type
LTE/GSM VoIP Gateway

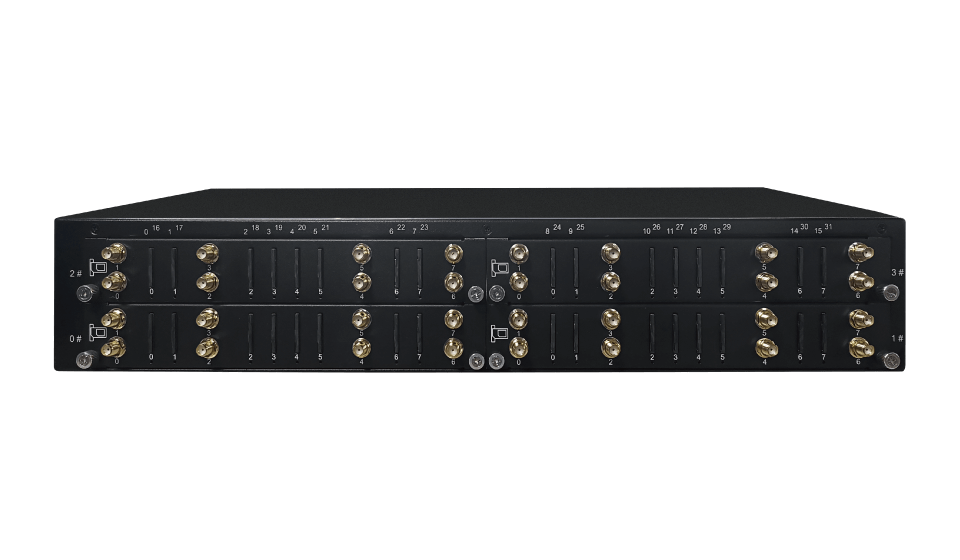

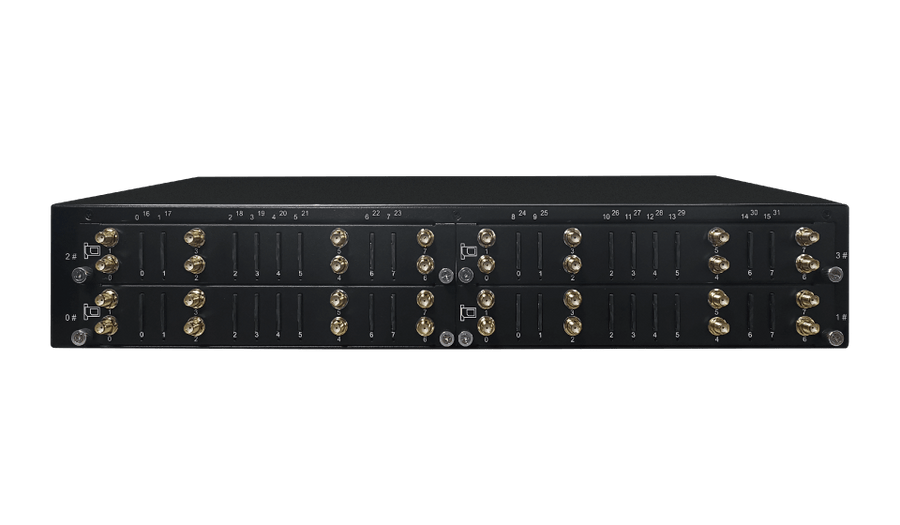

- 32 hot-swappable SIM slots for maximum call capacity in a single chassis
- Built-in 2.3-inch LCD display for on-device status and configuration
- VoLTE support alongside LTE-FDD/TDD, WCDMA and GSM network compatibility
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
32 hot-swappable SIM slots for maximum call capacity in a single chassis
02
Built-in 2.3-inch LCD display for on-device status and configuration
03
VoLTE support alongside LTE-FDD/TDD, WCDMA and GSM network compatibility
04
Auto CLIP and credit limit management for controlling SIM spend
05
Remote SIM management options for centralised administration
06
Bulk SMS and HTTP API tools, including SMS-to-email integration
07
Full SIP trunking compatibility with mainstream VoIP/PBX platforms
08
Rack-mount chassis built on a powerful embedded CPU for call-centre workloads
Specifications
13 specificationsGeneral
Compatibility3CX, Yeastar and other SIP platforms
ModelUC2000-VG-32T
TypeLTE/GSM VoIP Gateway
Display
Display2.3" LCD
Audio
Channels32 GSM/LTE
Connectivity
Cellular32 SIM slots (hot-swappable)
ProtocolsSIP 2.0 (RFC3261)
Physical
MountingRack mount
Additional specifications
SIM slots32, hot-swappable
Network supportVoLTE, LTE-FDD/TDD, WCDMA, GSM
SIP complianceSIP v2.0 (RFC3261)
ManagementAuto CLIP, credit limit management, remote SIM management
Form factorRack-mount chassis
Questions
Can’t find your answer? Ask on WhatsApp
What makes the VG-32T different from the smaller UC2000-VF-16T?
The VG-32T doubles the SIM capacity to 32 hot-swappable slots and adds a built-in 2.3-inch LCD for on-device management, aimed at larger call volumes than the 16-channel VF series.
Can I manage the gateway without opening the web interface?
Yes, the built-in LCD display shows status information and allows basic configuration directly on the unit, in addition to the full web GUI.
Which PBX platforms is it compatible with?
It uses standard SIP v2.0 (RFC3261) trunking, so it works with 3CX, Yeastar, FreePBX and most other SIP-based PBX or softswitch platforms.
Does it support remote SIM card management?
Yes, the gateway includes remote SIM management options so administrators can monitor and control SIM cards without physical access to the unit.
Can Procure.ae help set this up across multiple UAE sites?
