DinstarPABX & VoIPSKU Dinstar-C62UP

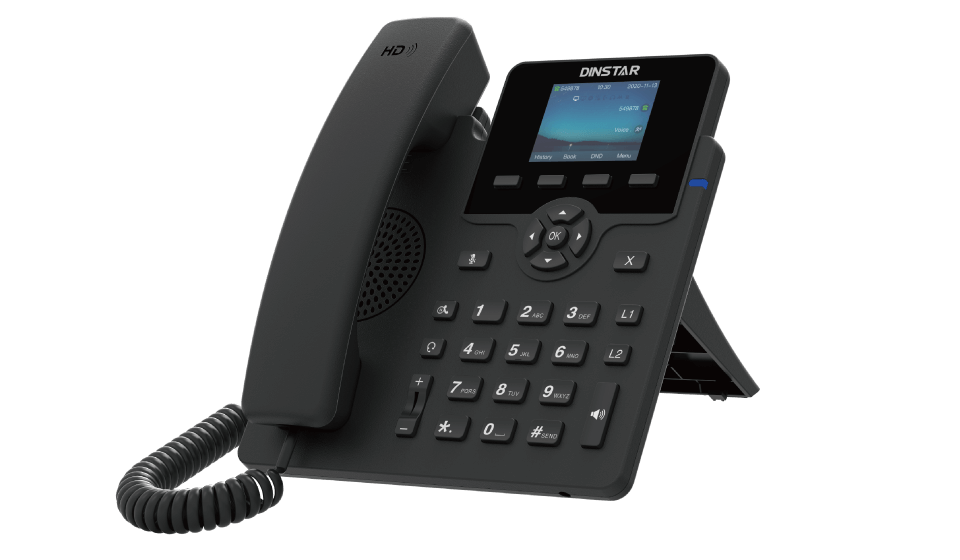

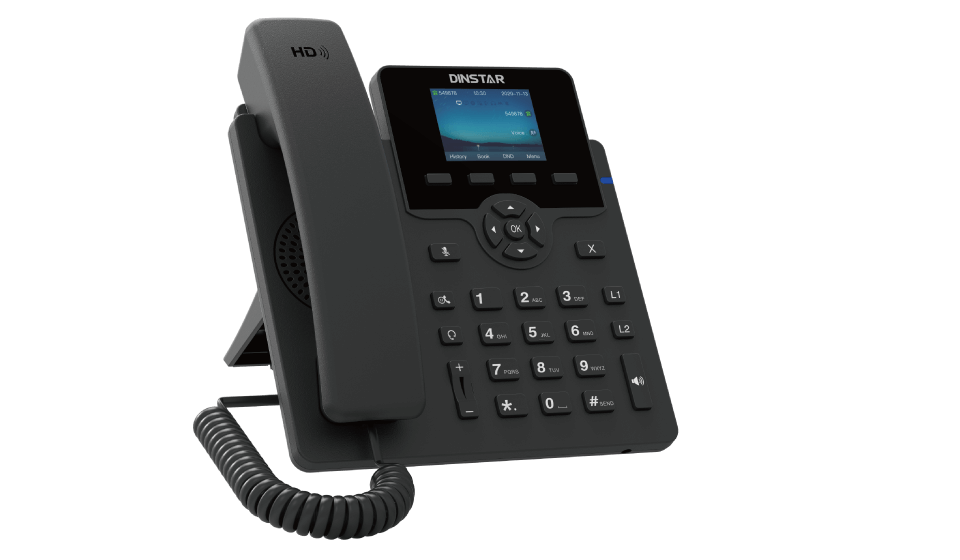

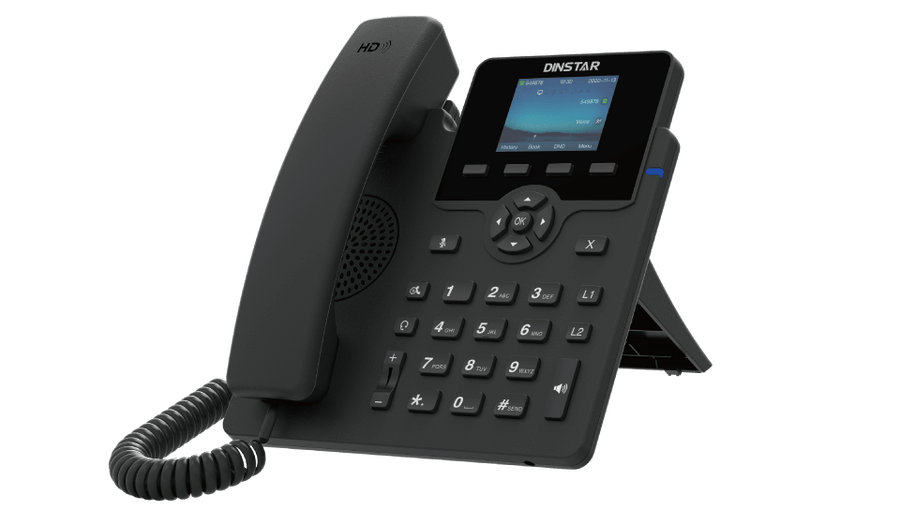

Dinstar C62UP Colour Display Gigabit SIP Desk Phone
The Dinstar C62UP is a colour-screen Gigabit SIP desk phone available from Procure.ae in the UAE for offices upgrading their everyday business calling.
The C62UP pairs a 2.4-inch colour TFT display with dual Gigabit Ethernet ports and built-in PoE, giving offices a mid-range phone that installs on a single cable and still delivers wideband HD audio through G.722 and OPUS-WB codecs. It manages up to 6 SIP accounts from one handset, supports 5-way audio conferencing, and provisions itself automatically over FTP, TFTP, HTTP, HTTPS or PnP, which keeps bulk rollouts simple for IT teams.
It suits general office desks, small reception points and multi-line staff who need more than a basic phone but not the full line-key array of an executive model. The C62UP registers with 3CX, Yeastar and most SIP-based PBX platforms, and Procure.ae supplies and can arrange installation for offices across the UAE and GCC.
Type
SIP Desk Phone
- 2.4-inch colour TFT display
- 6 SIP accounts
- Dual Gigabit Ethernet with PoE
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
2.4-inch colour TFT display
240x320 resolution with backlight for clear call information
02
6 SIP accounts
manage multiple extensions or lines from a single handset
03
Dual Gigabit Ethernet with PoE
single-cable install with pass-through networking
04
5-way audio conferencing
host small group calls directly from the phone
05
Wideband HD audio
G.722 and OPUS-WB codecs for clearer voice quality
06
Auto-provisioning
FTP/TFTP/HTTP/HTTPS/PnP for fast bulk deployment
07
Bluetooth-ready
supports an optional wireless headset
08
2 physical line keys for quick line switching
Specifications
16 specificationsGeneral
ModelC62UP
TypeSIP Desk Phone
Display
Display2.4" colour TFT LCD, 240 x 320
Audio
Audio CodecsG.722, Opus-WB
Connectivity
BluetoothOptional
Conference Calling5-party audio conference
Ethernet2 x Gigabit Ethernet
PoE802.3af
Programmable Keys2 line keys
SIP Accounts6 SIP accounts
Additional specifications
SIP accounts6
NetworkDual Gigabit Ethernet
PowerPoE (IEEE 802.3af)
Conferencing5-way audio
Audio codecsG.722, OPUS-WB (wideband)
ProvisioningFTP/TFTP/HTTP/HTTPS/PnP
Questions
Can’t find your answer? Ask on WhatsApp
How many SIP lines can the C62UP handle?
It supports up to 6 SIP accounts, so a single handset can manage several extensions or lines.
Does it need a separate power adapter?
No, it draws power over Ethernet (PoE) through its Gigabit port, so a single cable handles both power and network connectivity; a power adapter can still be used where PoE is unavailable.
Which PBX platforms is it compatible with?
It uses standard SIP registration, so it works with 3CX, Yeastar, FreePBX and most other SIP-based PBX platforms.
Can I connect a wireless headset?
Yes, the phone is Bluetooth-ready and supports an optional wireless headset for hands-free calling.
Does Procure.ae handle provisioning and installation?
