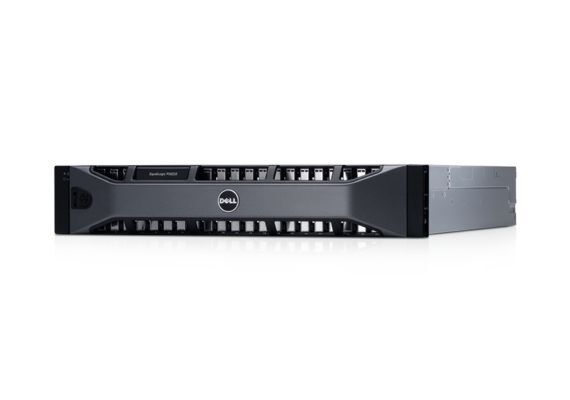

Dell EqualLogic PS6210 Series
- SKU: EqualLogic-PS6210
Actual Stock Can Be Confirmed After Placing the Order.
Specification Expansion Capacity Can be combined with other PS Series arrays in the same SAN group online; maximum of 16 total arrays per group that can support a maximum of 384 drives and up to 1.536PB with the PS6210 Series. With multigenerational capabilities, you... See More
EMAIL
info@procure.ae
TELEPHONE
(+971) 454 65041
WHATSAPP
(+971) 454 65041
FREE SHIPPING
All orders over AED1999/-
Specification
Expansion Capacity
- Can be combined with other PS Series arrays in the same SAN group online; maximum of 16 total arrays per group that can support a maximum of 384 drives and up to 1.536PB with the PS6210 Series. With multigenerational capabilities, you can support up to 10 cross-generation types of controllers with multiple network configurations and drive types in a new or existing PS Series SAN resource pool, all managed by a single interface. Maximum number of drives and capacity varies based on configuration model and drive types. Additionally, PS and SC Series offer common management and cross-platform replication capabilities between arrays, providing PS Series customers the flexibility to add SC Series arrays to their environment, if and when they choose.
Networking
-
TCP Network Support:
IPv4, IPv6 compliant. USGv6 certified.
Network Interfaces:
Management network: One 100BASE-TX per controller
Physical
-
PS6210E:
Height:
4U / 175 mm (6.87 inches)
Width:
446 mm (17.57 inches)
Depth:
580 mm (22.83 inches)
Weight:
47.1 kg (103.8 lb)1
Packaged physical:
Length:
905 mm (35.63 inches)
Width:
607 mm (23.88 inches)
Depth:
521 mm (20.50 inches)
Packaged weight:
66.0 kg (145 lbs)1
PS6210X, PS6210XV, PS6210S, PS6210XS:
Height:
2U / 87 mm (3.42 inches)
Width:
446 mm (17.57 inches)
Depth:
546 mm (21.50 inches)
Weight:
26.4 kg (58.3 lb)1
Packaged physical:
Length:
851 mm (33.50 inches)
Width:
616 mm (24.25 inches)
Depth:
508 mm (20.00 inches)
Packaged weight:
36.0 kg (79.3 lbs)1
Data Protection, Disaster Recovery, Security
- CHAP authentication
Access control for iSCSI as well as new Access Control Policies
Access control for management interfaces including Active Directory, LDAP, or RADIUS support
Common Criteria Certification with FW 7.1.1
Controller
- Dual controllers with 16GB non-volatile memory per controller
Environmental Operating Conditions
- Temperature range:
5° to 40°C (41° to 104°F)
Storage temperature:
–40° to 65°C (–40° to 149°F)
Altitude:
For altitudes above 2950 feet, the maximum operating temperature is derated 1ºF/550 ft.
Operating Relative humidity:
20% to 80% (noncondensing) with a maximum humidity gradation of 10% per hour
Operational shock:
Half-sine shock 31G +/- 5% with a pulse duration of 2.6ms +/- 10% in operational orientations only
Operating Vibration:
0.26 Grms (5 to 350 Hz) for 5 minutes in operational orientations
Acoustics Category 4:
<=7.2 bels="" at="" 23c="" +/-="">
Air Quality:
Airborne contaminant level of G1 or lower as defined by ISA-S71.04-1985
Power
- Frequency:
50/60 Hz
Power factor:
0.98 (minimum)
PS6210E:
AC voltage:
100-240 VAC ±10% single phase 1080W (max, total), +5V up to 155W; +12V up to 924W; +5Vsb up to 10W
Power supplies:
Dual, optional dual 1080W DC-DC
PS6210X, PS6210XV, PS6210S, PS6210XS:
AC voltage:
100-240 VAC ±10% single phase, 700 W (max, total), +5V up to 155W; +12V up to 624W; +5Vsb up to 10W
Power supplies:
Dual, optional dual 700W DC-DC
Energy Efficiency
- ENERGY STAR®
The Dell PS6210 series arrays have earned the ENERGY STAR Data Center Storage designation. Click Here to learn more about the ENERGY STAR Storage 1.0 designation.
Management
- Dell Storage Manager (DSM):
Allows you to perform day-to-day tasks across SC and PS Series arrays from a single management interface
Group Manager (GUI & CLI)
SAN Headquarters multi-group performance and event monitoring tool
Virtual Storage Manager
vCenter plugin
Serial console
Ability to configure a separate management network
SNMP, telnet, SSH, HTTP, Web (SSL)
Host scripting, including Windows PowerShell
Multi-administrator support
Maximum Usable Capacity
-
Drive Capacities:
PS6210E:
2TB, 3TB, 4TB, 6TB
PS6210X:
600GB, 900GB, and 1.2TB
PS6210XV:
300GB, 600GB
PS6210S:
400GB, 800GB, 1.6TB
PS6210XS:
Combines 400GB or 800GB SSDs and 600GB or 1.2TB 10K RPM SAS drives
System Capacities:
PS6210E:
Up to 144TB (up to 2.3PB with 16 arrays)
PS6210X:
Up to 28.8TB (up to 460.8TB with 16 arrays)
PS6210XV:
Up to 14.4TB (up to 230.4TB with 16 arrays)
PS6210S:
Up to 38.4TB (up to 614.4TB with 16 arrays)
PS6210XS:
Up to 26TB (up to 416TB with 16 arrays)
Hard Drive
-
Hard Disk Drives:
PS6210E:
24 hot-pluggable 3.5" 7.2K RPM NL-SAS drives
PS6210X:
24 hot-pluggable 2.5" 10K RPM SAS drives
PS6210XV:
24 hot-pluggable 2.5" 15K RPM SAS drives
PS6210S:
24 hot-pluggable 2.5" SSDs
PS6210XS:
7 hot-pluggable 2.5" SSDs and 17 hot-pluggable 2.5" 10K RPM SAS drives
Self Encrypting Drives (SED):
PS6210E:
4TB 7.2K RPM NL-SAS drives
PS6210X:
1.2TB 10K RPM SAS drives
PS6210XV:
600GB 15K RPM SAS drives
PS6210S:
N/A
PS6210XS:
N/A
Reliability
- Redundant hot-swappable controllers with vertical port sharing Hot-swappable disks and power supplies
RAID
Rack Support
- ReadyRails™ II static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded-hole racks
Notification Methods
- SAN Headquarters alerting, including Dell SupportAssist, SNMP traps, email, syslog
Technical Highlights
-
Interface ports:
Two 10GBASE-T with RJ45 and two 10GbE SFP+ for fibre or twin-ax copper cabling
Volumes:
Up to 1,024
Snapshots:
512 per volume/up to 10,000 total per group
Volume connections per PS series pool/group:
Up to 1024/4096
Host Protocol:
Any standards-compliant iSCSI initiator
OS Supported:
Microsoft Windows Server®
including Hyper-V®
VMware®
ESX Server™
Red Hat® Enterprise Linux® (RHEL)
SUSE® Enterprise Linux® (SLES)
Oracle® Linux®
Citrix® XenServer®
Enclosure Monitoring System
- Automatic spare configuration and utilization
SMART
Automatic bad block replacement
Auto-Stat Disk Monitoring System (ADMS) to monitor health of data on disk drives
