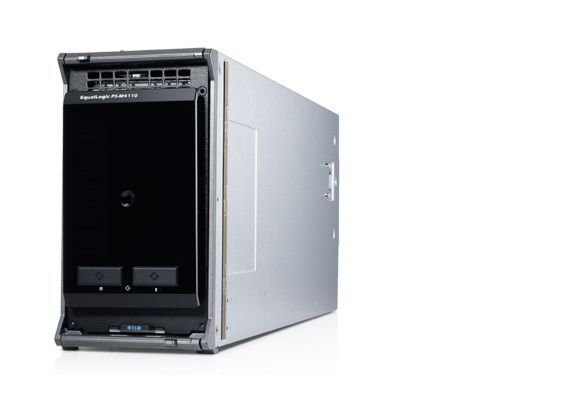

Dell EqualLogic PS-M4110 Blade Array Series
- SKU: PS-M4110
Actual Stock Can Be Confirmed After Placing the Order.
Specification Expansion Capacity Can be combined with other PS Series arrays in the same SAN group online. A maximum of two PS-M4110 blade arrays can be in a group, up to four blade arrays per blade chassis. Additionally, the PS-M4110 can scale outside blade... See More
EMAIL
info@procure.ae
TELEPHONE
(+971) 454 65041
WHATSAPP
(+971) 454 65041
FREE SHIPPING
All orders over AED1999/-
Specification
Expansion Capacity
- Can be combined with other PS Series arrays in the same SAN group online. A maximum of two PS-M4110 blade arrays can be in a group, up to four blade arrays per blade chassis. Additionally, the PS-M4110 can scale outside blade chassis to traditional PS Series arrays for up to sixteen in a SAN group. Additionally, PS and SC Series offer common management and cross-platform replication capabilities between arrays, providing PS Series customers the flexibility to add SC Series arrays to their environment, if and when they choose.
Networking
-
TCP network support:
IPv4, IPv6 compliant. USGv6 certified.
Network interfaces:
Redundant 10Gb connections available through Fabric A or B
Data Protection, Disaster Recovery, Security
- CHAP authentication
Access control for iSCSI
Access control for management interfaces including RADIUS support
IPSEC
SED
Common Criteria Certification with FW 7.1.1
Controller
- Dual controllers with 2GB non-volatile memory per controller
Power
- Wattage: 450W
Voltage: 12VDC
Max Power input: 450W
Input Current: 37.5A
Typical Power:
PS-M4110E: 248.9W
PS-M4110X: 261.0W
PS-M4110XV: 293.3W
PS-M4110XS: 230.4W
Management
- Dell Chassis Management Console (CMC) integration Dell Storage Manager (DSM):
Allows you to perform day-to-day tasks across SC and PS Series arrays from a single management interface PS Series Group Manager PS Series SAN Headquarters multigroup performance and event monitoring tool
Serial console
Ability to configure a separate management network SNMP, telnet, SSH, HTTP, web (SSL), host scripting
Multiadministrator support
Maximum Usable Capacity
-
Drive capacities:
PS-M4110E:
1TB 7.2K NL-SAS or NL-SAS SED
PS-M4110X:
600GB, 900GB, or 1.2TB 10K SAS or SAS SED (SED 1.2TB)
PS-M4110XV:
300GB, 600GB 15K SAS or 300GB SAS SED
PS-M4110XS:
600GB or 1.2TB 10K SAS + 400GB or 800GB SSD
System capacities:
PS-M4110E:
14TB using fourteen (14) 1TB 7.2K NL-SAS drives or SEDs
PS-M4110X:
8.4TB using fourteen (14) 600GB 10K SAS drives
12.6TB using fourteen (14) 900GB 10K SAS drives or SEDs
16.8TB using fourteen (14) 1.2TB 10K SAS drives
PS-M4110XV:
4.2TB using fourteen (14) 300GB 15K SAS drives or SEDs
8.4TB using fourteen (14) 600GB 15K SAS drives
PS-M4110XS:
14.8TB using the allotted configuration
Nine (9) 10K SAS drives and five (5) SSDs
Chassis
- Physical:
Half-height, double-wide storage blade
Height:
189 mm (7.44 inches)
Width:
102 mm (4.015 inches)
Depth:
515 mm (20.275 inches)
Weight:
PS-M4110E:
27.54 lb (12.49 kg)
PS-M4110X:
28.38 lb (12.87 kg)
PS-M4110XV:
27.82 lb (12.62 kg)
PS-M4110XS:
27.82 lb (12.62 kg)
Hard Drive
-
Hard disk drives:
PS-M4110E, PS-M4110X, PS-M4110XV:
Fourteen 2.5" hot-pluggable hard disk drives
PS-M4110XS:
Nine 10K SAS +
Reliability
- Redundant hot-swappable controllers and hot-swappable disks, redundant network path via internal fabric wiring in M1000e chassis, redundant fans and power supplies provided by M1000e chassis
RAID
Notification Methods
- SNMP traps, email, syslog
Technical Highlights
-
Volumes:
Up to 256 per array/up to 512 per blade array-only group
Snapshots:
128 per volume/up to 2048 per blade array-only group
Volume connections per PS Series group:
Up to 512 per pool/up to 1024 per blade array-only group
Host protocol:
Any standards-compliant Internet SCSI (iSCSI) initiators.
OS supported:
Microsoft Windows Server® including Hyper-V®
VMware® ESX Server™
Red Hat® Enterprise Linux® (RHEL)
SUSE® Enterprise Linux® (SLES)
Oracle® Linux®
Citrix® XenServer®
Enclosure Monitoring System
- Automatic spare configuration and utilization
SMART
Automatic bad block replacement
Auto-Stat Disk Monitoring System (ADMS) to monitor health of data on disk drives
Additional Features
-
Dependencies on other components:
Blade enclosure: PowerEdge M1000e
Blade I/O modules: Dell Networking MXL 10/40GbE blade switch, PowerConnect M8024-k, M8428-k and 10Gb
Ethernet Pass-Through-k modules with external switches
Power supplies and fans: Supplied by Dell PowerEdge M1000e blade enclosure
Rack support: See Dell PowerEdge M1000e blade enclosure
