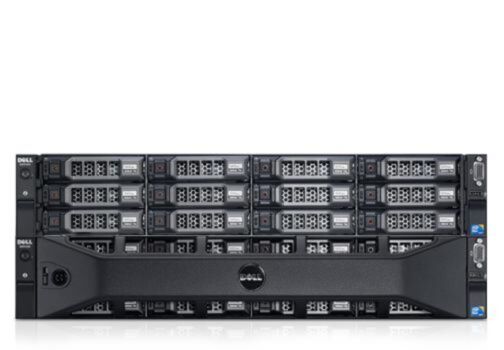

Dell DR4100 Disk Backup Appliance
- SKU: DR4100
Actual Stock Can Be Confirmed After Placing the Order.
Specification Networking 2 Port 10GbE (10BaseT) per node or 2 Port 10GbE (SFP+) per node Storage Internal Storage: 12 3.5’ drives, Near Line SAS - Hardware RAID 6 Configuration (11 drives +1 Hot Spare) 300GB or 600GB SAS or 1TB/2TB/3TB(DR4100 only) Near Line DrivesCapacity... See More
EMAIL
info@procure.ae
TELEPHONE
(+971) 454 65041
WHATSAPP
(+971) 454 65041
FREE SHIPPING
All orders over AED1999/-
Specification
Networking
- 2 Port 10GbE (10BaseT) per node or 2 Port 10GbE (SFP+) per node
Storage
- Internal Storage: 12 3.5’ drives, Near Line SAS - Hardware RAID 6 Configuration (11 drives +1 Hot Spare) 300GB or 600GB SAS or 1TB/2TB/3TB(DR4100 only) Near Line Drives
Capacity Points
2.7TB post-RAID (40TB logical)
5.4TB post-RAID (81TB logical)
9.0TB post-RAID (135TB logical)
18.0TB post-RAID (270TB logical)
27.0TB post-RAID ( 405TB logical)
Internal Drive Capacity and Available Physical Capacity
Legend APC = Available Physical Capacity APCB = Available Physical Capacity (Binary)
DR Series System Drive Capacity
3TB1, APC: 26.79TB, APCB: 23.8TiB
2TB, APC: 17.9TB, APCB: 15.9TiB
1TB, APC: 8.89TB, APCB: 7.9TiB
600GB, APC: 5.29TB, APCB: 4.6TiB
300GB, APC: 2.47TB, APCB: 2.2TiB
Dimensions
-
Physical Dimension: Height- 87.3 mm (3.44 inch), Width 482.4 mm ( 18.98 inch), Depth ( included bezel) 755.8mm (29.75 inch)
Rack Weight:
(Maximum) 31.86 kg (70.24 lb)
(Empty) 18.78 kg (41.4 lb)
Wattage
750 W
Voltage
100-240 V AC, autoranging, 50/60 Hz.
Heat Dissipation
2891 BTU/hr maximum (750 W power supply)
Regulatory Model
E14S
