DellInteractive Flat PanelsSKU C8618QT

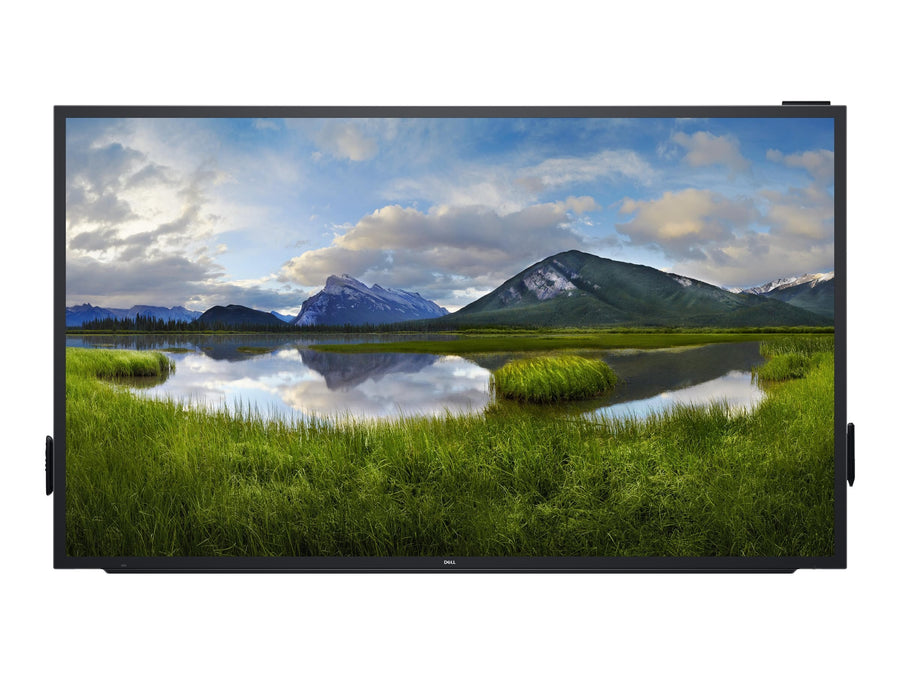

Dell C Series 86-inch 4K Interactive Touch Monitor – C8618QT
The Dell C8618QT is an 86-inch 4K interactive touch monitor from the Dell C Series, built for meeting rooms and classrooms. It offers VGA, DisplayPort and four HDMI inputs, ships with two styluses and a remote control, and supports Crestron control. Procure.ae supplies and installs it in the UAE.
The Dell C8618QT is an 86-inch 4K interactive flat panel that pairs a large touch display with six selectable video inputs: VGA, DisplayPort and four HDMI ports. The box includes two styluses with a stylus holder, a remote control with two AAA batteries, a USB 3.0 upstream cable that enables the display's USB ports, a power cable, wire saddles and an Allen key. A Touch OSD Launcher gives touch access to on-screen settings, and the OSD can be locked.
For managed rooms, the display can be controlled from a web browser through its IP address, including a Crestron interface for linking it to a Crestron control system. Dell Display Manager, a Windows application, adjusts brightness, contrast and preset modes and organises windows with Easy Arrange. Wall mounting is described as an optional installation method. This model is now discontinued, so Procure.ae can confirm availability or suggest a current successor.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Type
Interactive Touch Monitor
- 86-inch 4K display
- Six video inputs
- Stylus included
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
86-inch 4K display
Large interactive touch monitor with 4K resolution for rooms that need a big shared canvas.
02
Six video inputs
VGA, DisplayPort and four HDMI ports, selectable from the remote, the OSD or the web interface.
03
Stylus included
Two styluses and a stylus holder are supplied in the box.
04
Crestron control
A web-based interface sets the IP address, IP ID and port of a Crestron control system.
05
Dell Display Manager
Windows software for brightness, contrast, preset modes, energy settings and Easy Arrange window layouts.
06
Web management
Dell Web Management for Displays lets IT teams configure the monitor over the network.
07
Touch OSD Launcher
On-screen menu reachable by touch, with an OSD lock function to prevent accidental changes.
Specifications
15 specificationsGeneral
CompatibilityDell Display Manager (Windows application)
ControlsRemote control, OSD menu, Touch OSD Launcher with OSD lock, web interface
Key Features86-inch 4K display, touch with 2 styluses, VGA/DisplayPort/HDMI × 4 inputs, Crestron control, Dell Display Manager, web management, remote control
ModelC8618QT
TypeInteractive Touch Monitor
What's in the BoxRemote control with 2 AAA batteries, remote control holder, 2 styluses, stylus holder, 3 wire saddles, Allen key with hook, power cable, USB 3.0 upstream cable
Display
Resolution3840 x 2160 (4K UHD)
Screen Size86 inch
Audio
DisplayPortDisplayPort × 1
Connectivity
HDMI InputsHDMI × 4 (HDMI 1 to HDMI 4)
InputsVGA, DisplayPort, HDMI × 4
ProtocolsCrestron control via web interface (IP address, IP ID, port)
USB PortsUSB 3.0 (enabled by the supplied USB 3.0 upstream cable)
VGA InputVGA × 1
Physical
MountingWall mounting (optional)
Downloads
Manufacturer documents for the Dell C Series 86-inch 4K Interactive Touch Monitor – C8618QT — datasheets, manuals, drawings and certificates.
- User manual – Dell C Series – Dell C8618QT - Display Control User Guide
- User manual – Dell C Series – Dell C8618QT - Quick Setup Guide
- User manual – Dell C Series – Dell C8618QT - Users Guide
- User manual – Dell C Series – Dell C8618QT Dell Display Manager Users Guide
- User manual – Dell C Series – Dell C8618QT Users Guide (2)
- User manual – Dell C Series – Dell C8618QT Users Guide
- User manual – Dell C Series – Dell C8618QT Monitor Teardown Instructions
- Drawing – Dell C Series – Dell C8618QT Outline Dimension
- Control protocol (RS232 / LAN) – Dell C Series – Dell C8618QT - RS232 Protocol Guide
- Document – Dell C Series – Dell C8618QT - Statement of Volatility
Questions
Can’t find your answer? Ask on WhatsApp
What size and resolution is the Dell C8618QT?
The Dell C8618QT is an 86-inch interactive touch monitor with 4K resolution, part of the Dell C Series. The guides for this model do not state brightness or contrast figures, so ask Procure.ae if you need those values confirmed before you specify it for a room.
Which video inputs does the Dell C8618QT have?
It has VGA, DisplayPort and four HDMI inputs (HDMI 1 to HDMI 4). The active source can be switched from the remote control, the on-screen menu or the browser-based Display Control page. A USB 3.0 upstream cable is supplied to enable the display's USB ports.
Does the Dell C8618QT come with a stylus?
Yes. Two styluses and a stylus holder are included, together with a remote control with two AAA batteries, a remote control holder, a power cable, a USB 3.0 upstream cable, three wire saddles and an Allen key with hook. Some items may vary by country.
Can the Dell C8618QT be controlled by Crestron?
Yes. Its web-based Display Control page includes a Crestron interface where you enter the IP address, IP ID and port of the Crestron control system. The same page offers power, volume, mute and source selection, so IT teams can manage the display remotely.
Can the Dell C8618QT be wall mounted?
Yes. The user's guide includes a Wall Mounting (Optional) section, so the display can be wall mounted with a suitable mount. At 86 inches it is a heavy installation, and Procure.ae can advise on a wall mount or stand and install it in the UAE.
Can I buy the Dell C8618QT in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
