Dahua

Meeting Room SolutionsSKU LDH55-SAI400TL

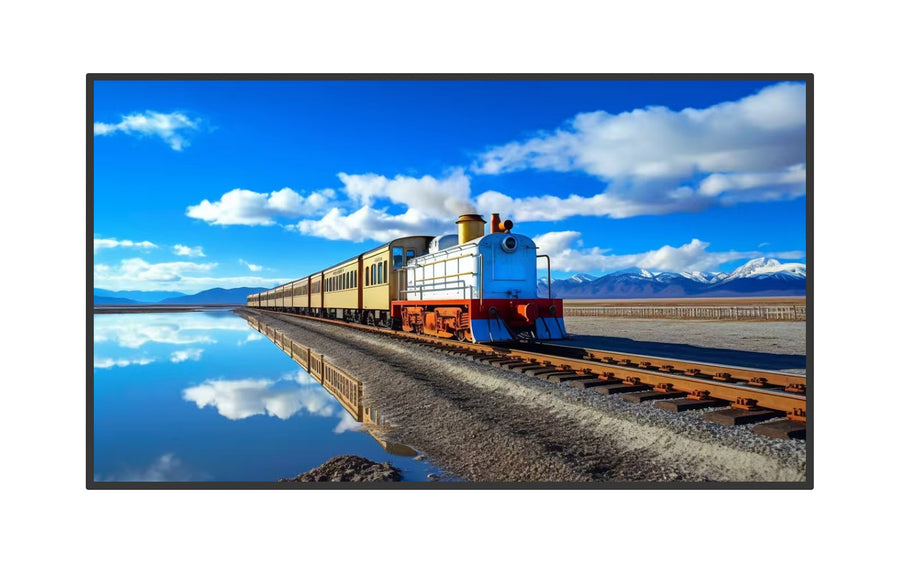

Dahua Standard Series 55-inch 4K Touch Digital Signage Display – LDH55-SAI400TL

Name: Dahua Standard Series 55-inch 4K Touch Digital Signage Display – LDH55-SAI400TL
Brand: Dahua
SKU: LDH55-SAI400TL
Availability: InStock

The Dahua LDH55-SAI400TL is a 55-inch 4K touch digital signage display for wall-mounted installations that need interactive content. It has 10-point capacitive touch, 3840 x 2160 resolution and an Android 11 system with 4 GB RAM. Procure.ae supplies the Dahua LDH55-SAI400TL in the UAE, with delivery and installation.

The 55-inch panel offers 3840 x 2160 (4K UHD) resolution, 500 nits typical brightness, a 16:9 aspect ratio and 178-degree viewing angles. Capacitive touch registers 10 points with a response time of 8 ms or more. The Android 11 system runs on a quad-core A55 processor at 1.92 GHz with 4 GB RAM and 32 GB storage, and it decodes H.265 HEVC video up to 2160p at 60 fps. Built-in 2 x 5 W speakers, a 3.5 mm audio output and a TF card slot for up to 128 GB complete the feature set.

Use it for interactive directories, wayfinding and information points in lobbies, schools and offices. The wall-mount installation uses a 400 x 400 mm VESA pattern, and the display supports landscape and portrait modes. It connects through one HDMI 2.1 input, RJ-45 Ethernet, Wi-Fi and two USB ports. A unified platform schedules programs by time and location and generates operation reports. Compared with the LDH55-SAI400L V2, this model adds touch, a 14.2 mm frame and a net weight of 26.7 kg against 20.5 kg.

Screen Size

55 inch

Resolution

3840 x 2160 (4K UHD)

Brightness

500 nits (typical)

Touch Technology

Capacitive

10-point capacitive touch
4K decoding
Android 11 platform

Price

On request · best price

WhatsApp Call

Download spec sheet (PDF) Manufacturer datasheet (PDF)

Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond

Manufacturer warrantyBacked by the brand

InstallationArranged on request

Key features

10-point capacitive touch

Touch registers up to 10 points with a response time of 8 ms or more.

4K decoding

Decodes H.265 HEVC up to 2160p at 60 fps and H.264 up to 2160p at 30 fps.

Android 11 platform

Quad-core A55 processor at 1.92 GHz with 4 GB RAM and 32 GB storage.

Industrial-grade panel

Built for 24/7 operation with an operating range of 0 to 40 °C.

Intelligent split screen

Page layouts can be adjusted freely for different scenes.

Time and location scheduling

Programs are released by time and location and generate operation reports.

Remote platform management

A B/S platform manages every display from one place.

Landscape or portrait

Supports both display modes, with a 400 x 400 mm VESA wall mount.

Specifications

44 specifications

General

Key Features10-point capacitive touch, 4K decoding, Android 11, Split-screen layouts, Time and location scheduling, Remote platform management, 24/7 operation, Landscape or portrait

ModelLDH55-SAI400TL

TypeTouch Digital Signage Display

What's in the BoxWall-mount bracket, remote control, user manual, energy label, legal and regulatory information

Display

Aspect Ratio16:9

BacklightELED

Bezel Size14.2 mm

Brightness500 nits (typical)

Color Depth10 bit (8 bit + FRC), 1.07 billion colours

Contrast Ratio1,200:1 (IPS, typical); 4,000:1 (VA, typical)

OrientationLandscape or portrait

Panel TechnologyIPS / VA

Resolution3840 x 2160 (4K UHD)

Response Time8 ms

Screen Size55 inch

Touch Points10-point multi-touch

Touch Response Time8 ms or more

Touch TechnologyCapacitive

Viewing Angle178° (H) / 178° (V)

Performance

Operating SystemAndroid 11

ProcessorQuad-core A55, 1.92 GHz

RAM4 GB

Storage32 GB

Storage Conditions-20 to 60 °C; 10% to 90% RH, non-condensing

Audio

Speaker Output2 × 5 W

Connectivity

Ethernet1 × RJ-45, 10/100/1,000 Mbps

Input Voltage100–240 V AC, 50/60 Hz

PortsHDMI 2.1 In × 1, USB 2.0 × 1, USB 3.0 × 1, RJ-45 × 1, 3.5 mm audio out × 1

SD Card SlotTF card slot, up to 128 GB

Wi-Fi802.11 a/b/g/n/ac/ax, 2.4 GHz and 5 GHz

Power

Power Consumption123 W (typical), 152 W (maximum)

Standby Power0.5 W or less

Physical

ColorBlack

Dimensions1237.3 x 708.0 x 28.8 mm (without bracket)

MaterialMetal casing

MountingWall mount

Operating Humidity10% to 85% RH, non-condensing

Operating Temperature0 to 40 °C (avoid direct sunlight)

Shipping Dimensions1324 x 805 x 130 mm

Shipping Weight31.5 kg (gross)

Surface ProtectionHaze 25% (OC panel)

VESA Mount400 x 400 mm

Weight26.7 kg (net)

Compliance

CertificationsCE EMC, CE LVD, CE ERP, RED

Downloads

Manufacturer documents for the Dahua Standard Series 55-inch 4K Touch Digital Signage Display – LDH55-SAI400TL — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

Does the LDH55-SAI400TL support touch on a 55-inch screen?

Yes. The 55-inch panel uses capacitive touch with 10 touch points and a response time of 8 ms or more, so it suits interactive directories and wayfinding with finger input.

Can the LDH55-SAI400TL be mounted in portrait?

Yes. The display supports landscape and portrait modes. It mounts on a wall using a 400 x 400 mm VESA pattern, and the wall-mount bracket, remote control and user manual are supplied in the box.

Does it play 4K content without an external media player?

Yes. Its Android 11 system and quad-core A55 processor decode H.265 HEVC video up to 2160p at 60 fps. Content can be stored in the 32 GB internal memory or on a TF card of up to 128 GB, and the display connects over Ethernet or Wi-Fi.

How are several displays managed from one place?

The manufacturer describes a unified platform based on B/S architecture. It schedules programs by time and location, generates operation reports and allows the platform to control each display remotely. The B/S (browser/server) design means management runs through a web browser rather than software installed on each display.

Which inputs and network ports does it have?

It has one HDMI 2.1 input at 4K and 60 Hz, one 3.5 mm audio output, one RJ-45 Ethernet port at 10/100/1,000 Mbps, Wi-Fi 802.11 a/b/g/n/ac/ax, one USB 2.0 port, one USB 3.0 port and a TF card slot.

Can I buy the LDH55-SAI400TL in the UAE?

Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
