DahuaSKU SP-PI5C82IS

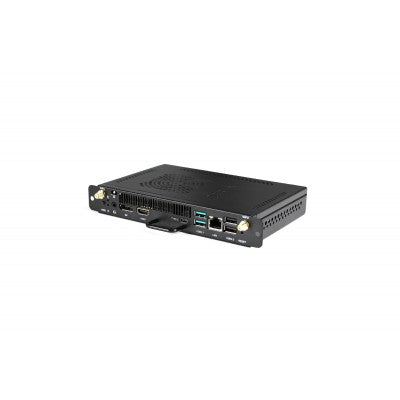

Dahua OPS Detachable PC Module - SP-PI5C82IS
The Dahua OPS Detachable PC Module - SP-PI5C82IS is a ifp & meeting accessory available in the UAE from Procure.ae.
The Dahua OPS Detachable PC Module is designed to instantly transform your interactive whiteboard into a powerful, Windows-enabled hub for collaboration, learning, and presentations. With its thin design and easy installation, this OPS module slides effortlessly into compatible displays, delivering robust computing with an Intel Alder lake-H i5-12450H processor. Enjoy smooth multitasking with 8GB DDR4 memory and rapid data access thanks to the 256GB SSD.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Type
Detachable PC Module (OPS Module)
Weight
0.75 kg
- Intel Alder lake-H i5-12450H Processor
- 8GB DDR4 Memory
- 256GB NVMe/SATA SSD
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Intel Alder lake-H i5-12450H Processor
Delivers fast, efficient performance for demanding applications and multitasking.
02
8GB DDR4 Memory
Ensures smooth operation and quick response times for all your tasks.
03
256GB NVMe/SATA SSD
Offers rapid boot-up and ample storage for documents, media, and software.
04
Integrated Wi-Fi & Bluetooth Module
Provides reliable wireless connectivity for internet access and device pairing.
05
UHD Graphics for 12th Gen Intel Processors
Delivers clear, vibrant visuals for presentations and media playback.
06
Multiple Display Outputs
Features HDMI 1.4 and DP1.2 ports supporting up to 4K resolution for flexible display setups.
07
Comprehensive USB Connectivity
Includes USB 3.1, USB 2.0, and USB Type-C ports for versatile device integration.
08
OPS Slot Compatibility
Designed for easy installation into smart interactive whiteboards and compatible displays.
Specifications
32 specificationsGeneral
CompatibilityIntel i5-12450H 4.40 GHz, 8GB DDR4 3200 MHz, 256GB SSD, WiFi/BT, HDMI/DP1.2/USB3.1/USB-C/RJ45, 80-pin JAE, 53 W, Windows 11 Pro or no OS
Key FeaturesIntel Alder lake-H i5-12450H, 8GB DDR4, 256GB SSD, Wi-Fi/BT, UHD Graphics, Windows 11 Pro support, HDMI/DP/USB ports, thin design, CE/Energy Star certified
ModelSP-PI5C82IS
TypeDetachable PC Module (OPS Module)
Performance
GraphicsIntel UHD Graphics (12th Gen)
Operating SystemWindows 11 Pro
ProcessorIntel i5-12450H (Alder Lake-H), 4.40 GHz
RAM8 GB
Storage256 GB
Storage Conditions-20 to 70 °C, 10% to 90% RH, non-condensing
Audio
Audio OutLine-out / MIC-in combo × 1
DisplayPortDisplayPort 1.2 out (4K@60 Hz) × 1
Connectivity
BluetoothBluetooth 5.2
EthernetRJ-45 (10/100/1000 Mbps) × 1
HDMI OutputsHDMI 1.4 out (4K@30 Hz) × 1
Input Voltage12–19 V DC
USB PortsUSB 3.1 × 2, USB 2.0 × 2
USB-C PortsUSB 3.1 Type-C × 1
Wi-Fi802.11a/b/g/n/ac/ax
Power
Power Consumption53 W (typical), 58.8 W max
Standby Power0.8 W
Physical
ColorBlack
Dimensions119 x 180 x 30 mm
Load Capacity0.75 kg
MaterialSGCC steel
MountingOPS slot
Operating Humidity10% to 90% RH, non-condensing
Operating Temperature-5 to 45 °C
Shipping Dimensions254 x 196 x 77 mm (10 x 7.72 x 3.03 in)
Shipping Weight0.95 kg (2.09 lb)
Weight0.75 kg
Compliance
CertificationsCE, ENERGY STAR
Downloads
Manufacturer documents for the Dahua OPS Detachable PC Module - SP-PI5C82IS — datasheets, manuals, drawings and certificates.
- Datasheet – ACCESSORIES – SP-PI5C82IS(Win 11 Pro Activated) datasheet 202605
- Datasheet – ACCESSORIES – SP-PI5C82IS(without system) datasheet 20260518
- User manual – ACCESSORIES
- Drawing – ACCESSORIES – SP-PI5C82IS(Win 11 Pro Activated) DIMENSIONS
- Drawing – ACCESSORIES – SP-PI5C82IS(without system) DIMENSIONS
