DahuaInteractive Flat PanelsSKU LPH75-MC470-C-S3

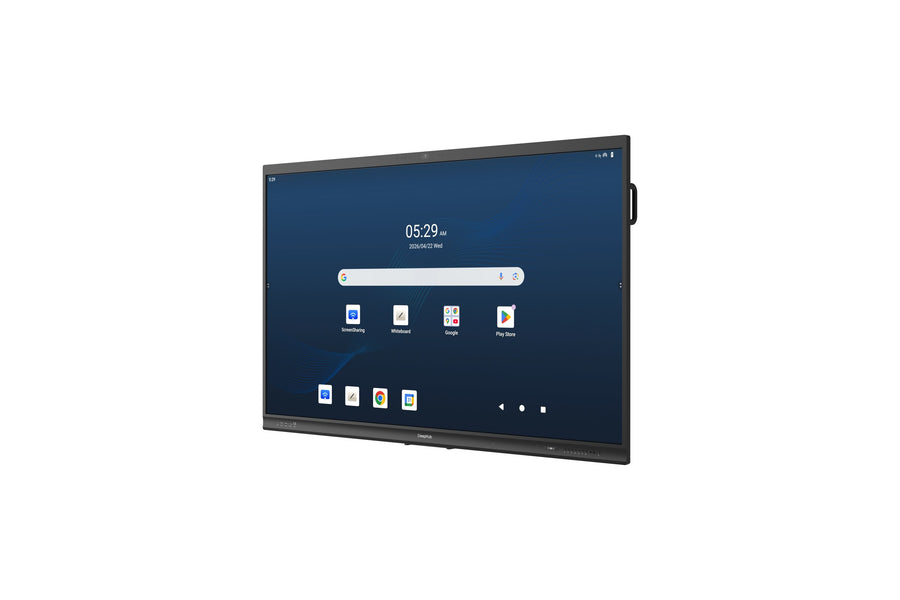

Dahua MC470-C Series 75-inch Interactive Flat Panel – LPH75-MC470-C-S3
The Dahua LPH75-MC470-C-S3 is a 75-inch 4K interactive flat panel for classrooms, meetings and training rooms. It runs Android 16 with 8 GB RAM and 128 GB storage, and its infrared touch supports 50 points on Android and Windows. Procure.ae supplies it across the UAE.
The 75-inch panel has a 3840 x 2160 display at 400 cd/m² brightness, a 1,500:1 static contrast ratio and a 178° viewing angle. Infrared touch runs 50 points on Android and 50 points on Windows, with a 1.5 mm valid touch zone and ±0.5 mm touch accuracy across 90% of the area. The front is anti-dazzle tempered glass, and finger or stylus pen input supports handwriting and annotation. The built-in 8-array microphone picks up voices from 8 to 12 m, and two mid-high frequency speakers provide sound for lessons and presentations.
The LPH75-MC470-C-S3 runs Android 16 natively, and the manufacturer lists Windows 11 and Android support through an external module. It includes Wi-Fi 6, Bluetooth 5.4, NFC and an IR receiver, plus two HDMI IN ports, one HDMI OUT, a DisplayPort IN and a Type-C IN on the rear panel. It mounts on a wall or mobile bracket with a 600 x 400 mm hole pattern, and the panel is rated IP20.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
- 75-inch 4K display
- Android 16 platform
- 50-point infrared touch
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
75-inch 4K display
3840 x 2160 resolution, 400 cd/m² brightness and 1,500:1 static contrast.
02
Android 16 platform
Quad-core A53 and A72 processor with 8 GB RAM and 128 GB storage.
03
50-point infrared touch
50 points on Android and Windows, with 1.5 mm valid touch and ±0.5 mm accuracy.
04
Built-in camera
52 MP camera with face detection and auto white balance.
05
8-array microphone
Pickup of 8 to 12 m with echo cancellation and noise filtering.
06
Two mid-high speakers
2.0 channel audio with front-end output of 2 × 20 W.
07
Wireless connectivity
Wi-Fi 6, Bluetooth 5.4, NFC quick unlock and an IR receiver.
08
Mounting options
Wall mount or mobile bracket with a 600 x 400 mm hole pattern.
Specifications
42 specificationsGeneral
Key FeaturesAndroid 16, 4K UHD, 50-point touch, 8-array microphone, 52 MP camera, Wi-Fi 6, NFC, IR receiver
ModelLPH75-MC470-C-S3
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
BacklightDLED
Brightness400 nits
Camera52 MP
Color Gamut90% NTSC
Contrast Ratio1,500:1
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Touch Accuracy±0.5 mm (90% of area)
Touch Points50-point multi-touch (Android and Windows)
Touch TechnologyInfrared
Viewing Angle178° (H) / 178° (V)
Performance
GraphicsMali-G52 MC3
Operating SystemAndroid 16
ProcessorQuad-core A53 + quad-core A72
RAM8 GB
Storage128 GB
Audio
Microphone8-array microphone
Pickup Range8 to 12 m
Speaker Configuration2 mid-high frequency speakers, 2.0 channel
Speaker Output2 × 20 W
Connectivity
BluetoothBluetooth 5.4
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3, HDMI Out × 1, DP In × 1, USB-C × 2, USB 3.0 × 4, RJ-45 × 2
SD Card Slot1 × SD, up to 512 GB
Wi-FiWi-Fi 6
Power
Power Consumption120 W (basic), 350 W (max)
Standby Power≤0.5 W
Physical
ColorBlack sides, dark blue top and bottom
Dimensions1707.6 x 1067.2 x 115.7 mm
MaterialMetal casing
Operating Humidity0% to 93% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight48.6 kg
Compliance
CertificationsCE, CB, EDLA
IP RatingIP20
Downloads
Manufacturer documents for the Dahua MC470-C Series 75-inch Interactive Flat Panel – LPH75-MC470-C-S3 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the Dahua LPH75-MC470-C-S3 run Android or Windows?
It runs Android 16 natively, with 8 GB RAM and 128 GB storage. The manufacturer's specifications also list Windows 11 support through an external module, so teams can use either platform.
Does the LPH75-MC470-C-S3 support several people writing at once?
The manufacturer lists 50 touch points on Android and 50 on Windows, with a 1.5 mm valid touch zone. Finger and stylus pen input are both supported, so more than one person can write or annotate at the same time.
What room size is the 75-inch model suited to?
It suits classrooms, meeting rooms and training rooms where the audience sits within the viewing range of a 75-inch screen. The 8-array microphone picks up voices from 8 to 12 m away, which suits mid-sized rooms.
How is the LPH75-MC470-C-S3 mounted?
It can be wall-mounted or fitted to a mobile bracket, using a 600 x 400 mm hole pattern. The net weight is 48.6 kg, so use wall fixings rated for that load. The box includes a wall mount bracket and an expansion tube and screw set.
Does it connect to laptops and other devices?
Yes. The rear panel has two HDMI IN ports, one HDMI OUT, a DisplayPort IN and a Type-C IN, plus USB 3.0 ports and two RJ-45 network ports. Wi-Fi 6 and Bluetooth 5.4 are also included.
Can I buy the LPH75-MC470-C-S3 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
