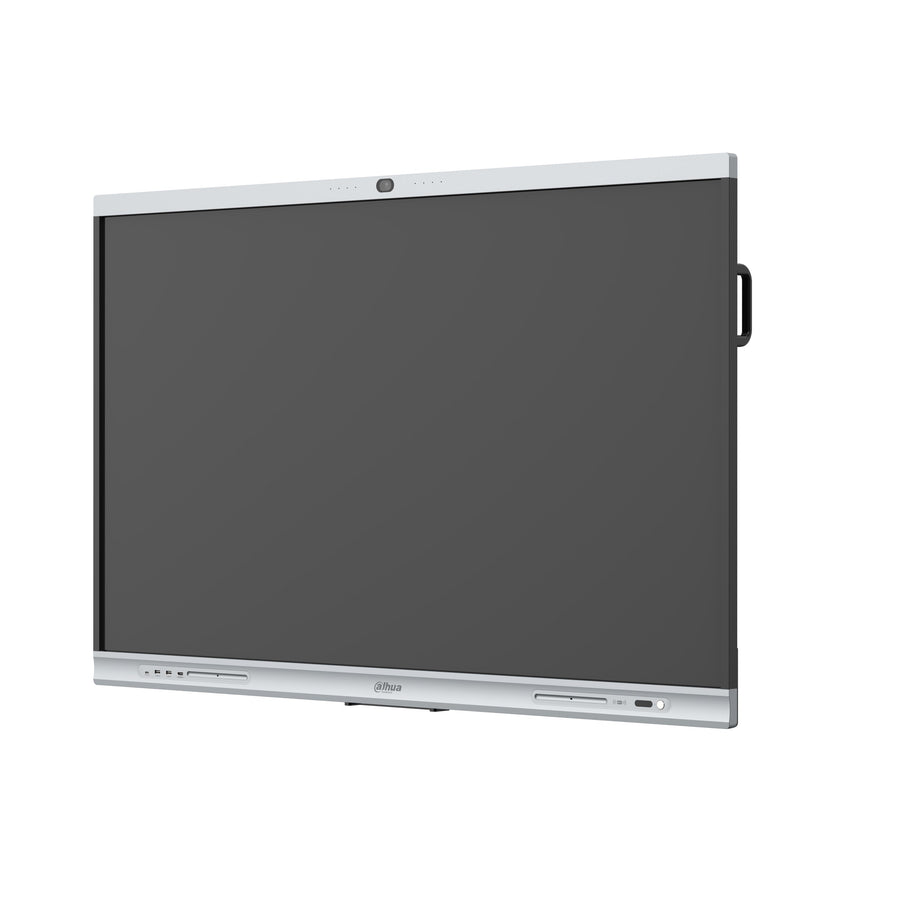

Dahua LPH65-MC420-C-S2 65-inch 4K interactive flat panel with Android 14, black frameDahua
Interactive Flat PanelsSKU LPH65-MC420-C-S2

Dahua MC420 65-inch Interactive Flat Panel – LPH65-MC420-C-S2

The Dahua LPH65-MC420-C-S2 is a 65-inch interactive flat panel with 4K UHD resolution, Android 14, a 52 MP camera and infrared touch supporting 32 points on Android. It suits presentation and collaboration rooms, with face detection, 9x digital zoom and 10 multi-user writing points. Procure.ae supplies the Dahua LPH65-MC420-C-S2 across the UAE.

The panel has a 3840 x 2160 display with DLED backlight, 350 nits typical brightness, a 1,200:1 typical contrast ratio, 90% NTSC color and 178-degree viewing angles. Infrared touch reads 32 points on Android and 50 on Windows, with a valid touch distance of 1.5 mm across over 90% of the touch area. Writing works with a finger or a magnetically attached stylus. The 3.2 mm anti-dazzle tempered glass has 9H surface hardness, and Android 14 runs on a quad-core A73 and quad-core A53 processor with 8 GB RAM and 64 GB ROM.

The panel includes an 8-array microphone with 8 m to 12 m pickup, echo cancellation and intelligent noise filtering, plus two 20 W front speakers. The camera provides face detection and up to 9x digital zoom. The Type-C input carries DisplayPort 4K at 60 fps with a USB 3.2 host, touch and 5 W charging, and two RJ-45 ports support network connection. Wi-Fi works as station and access point. Procure.ae supplies the LPH65-MC420-C-S2 for installation across the UAE.

Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits (typical)
Touch Technology
Infrared
  • 4K UHD display
  • Android 14 platform
  • Camera and zoom
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
4K UHD display
3840 x 2160 resolution on a 65-inch 16:9 panel.
02
Android 14 platform
Quad-core A73 and A53 processors with 8 GB RAM and 64 GB ROM.
03
Camera and zoom
52 MP Android camera with face detection and up to 9x digital zoom.
04
Infrared touch
32 points on Android and 50 on Windows, with a 1.5 mm valid touch distance.
05
Multi-user writing
10 multi-user writing points with finger or magnetic stylus input.
06
Card access
NFC card swiping with up to 10 cards bound to the panel.
07
Audio
8-array microphone with 8 m to 12 m pickup and 2 × 20 W speakers.
08
Connectivity
Type-C input with 5 W charging, dual RJ-45 ports, Wi-Fi and Bluetooth 5.2.

Specifications

37 specifications
General
Key FeaturesAndroid 14, 4K UHD, 52 MP camera with face detection, 9x digital zoom, 10 multi-user writing points, NFC card swiping, 2 × 20 W speakers, Wi-Fi access point
ModelLPH65-MC420-C-S2
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
BacklightDLED
Brightness350 nits (typical)
CameraAndroid: 52 MP photo, 8 MP video; Windows: 8 MP photo and video
Color Gamut90% NTSC (typical)
Contrast Ratio1,200:1 (typical)
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Screen Size65 inch
Touch Points32 points (Android), 50 points (Windows)
Touch Resolution32,767 x 32,767
Touch TechnologyInfrared
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 14
ProcessorQuad-core A73 + quad-core A53
RAM8 GB
Storage64 GB ROM
Storage Conditions-20 to 60 °C, 10% to 90% RH, non-condensing
Audio
Microphone8 arrays, 8 m to 12 m pickup
Speaker Output2.0 channel, 2 × 20 W
Connectivity
BluetoothBluetooth 5.2
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI 2.0 In × 2 (4K@60 Hz); HDMI 2.0 Out × 1 (4K@60 Hz); Type-C In × 1 (DP 4K@60 fps, USB 3.2 host, touch, 5 W charging); USB 3.2 Gen1 Type-A × 4; RJ-45 × 2; RS-232 × 1; 3.5 mm line out × 1; SPDIF × 1
Wi-Fi802.11b/g/n/a/ac/ax, station and access point
Power
Power Consumption220 W (basic); 300 W (max)
Standby Power≤0.5 W
Physical
ColorBlack sides, starry gray top and bottom
Dimensions1485.5 x 942 x 87 mm
MountingWall mount; mobile bracket
Operating Humidity10% to 90% RH, non-condensing
Operating Temperature0 to 40 °C
Shipping Weight59.6 kg
VESA Mount500 x 400 mm
Weight41 kg

Questions

Can’t find your answer? Ask on WhatsApp

Does the LPH65-MC420-C-S2 support NFC card access?
Yes. The manufacturer lists card swiping with NFC and quick unlock through NFC, and up to 10 cards can be bound to the panel. Bluetooth 5.2 and Wi-Fi are listed separately in the specifications.
How many touch points does the panel support, and how accurate is the touch?
Infrared touch supports 32 points on Android and 50 points on Windows. The valid touch distance is 1.5 mm over more than 90% of the touch area, and the panel offers 10 multi-user writing points.
Does the panel include a camera with zoom and face detection?
Yes. The Android camera records photos at 52 MP and video at 8 MP, and the Windows camera records photo and video at 8 MP. Face detection is listed, and digital zoom reaches up to 9x.
What ports does the LPH65-MC420-C-S2 offer for connecting sources?
It has two HDMI 2.0 inputs at 4K@60 Hz, one HDMI 2.0 output and a Type-C input that carries DisplayPort 4K@60 fps, USB 3.2 host, touch and 5 W charging. It also has four USB 3.2 Gen1 Type-A ports, two RJ-45 ports, RS-232, a 3.5 mm line out and SPDIF.
Can the panel be wall mounted, and what hole pattern does it use?
Yes. It supports wall mounting with a 500 x 400 mm hole pattern and a mobile bracket. Its dimensions are 1485.5 x 942 x 87 mm with a net weight of 41 kg, so confirm the wall or stand can carry it.
