DahuaDigital SignageSKU LDH65-SAI400L V2

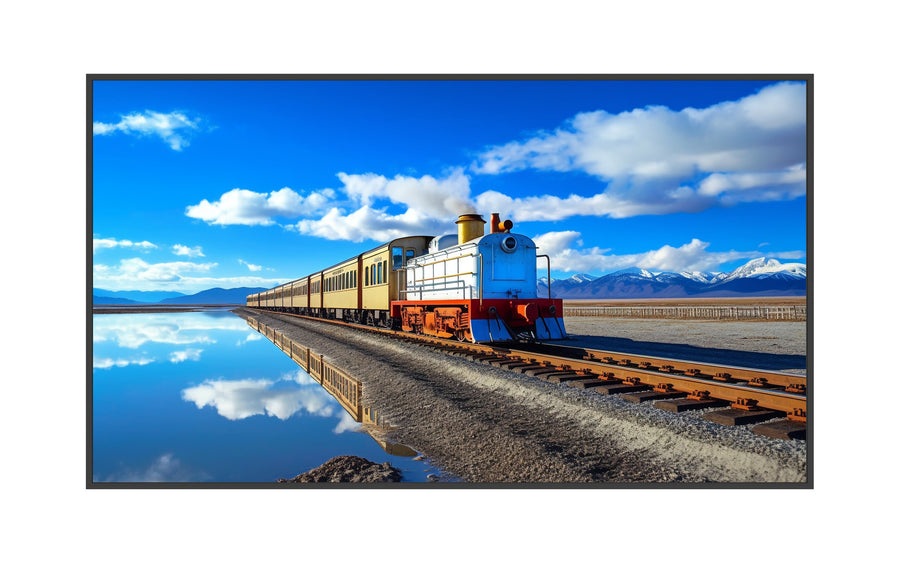

Dahua 65-inch Indoor Wall-mounted Digital Signage Display – LDH65-SAI400L V2
The Dahua LDH65-SAI400L V2 is a 65-inch indoor wall-mounted LCD digital signage display with 4K UHD resolution, Android 11 and remote platform management. It runs 24/7 indoor signage with programs scheduled by time and location, and it has 500 nits typical brightness. Procure.ae supplies the Dahua LDH65-SAI400L V2 across the UAE.
The LDH65-SAI400L V2 has a 3840 x 2160 LCD panel with ELED backlight, 500 nits typical brightness and 178-degree viewing angles in both directions. Its 8 ms response time suits content that changes frequently. An Android 11 system runs a quad-core A55 processor at 1.92 GHz with 4 GB RAM and 32 GB ROM. The player decodes H.265 HEVC up to 2160p at 60 fps and H.264 AVC up to 2160p at 30 fps. Two built-in 5 W speakers and a 3.5 mm audio output provide sound.
The display supports landscape and portrait orientation and an intelligent split-screen mode that lets page layouts be adjusted for different scenes. The device manages programs by time and location, generates operation reports and can be controlled from the unified platform. It connects through an RJ-45 Ethernet port (10/100/1,000 Mbps) or 802.11ax dual-band Wi-Fi, and it mounts on a wall with a 400 x 400 mm pattern. Procure.ae supplies the LDH65-SAI400L V2 for installation across the UAE.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits (typical)
Type
Wall-mounted Digital Signage Display
- 4K UHD panel
- Android 11 platform
- 4K decoding
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD panel
Displays 3840 x 2160 resolution with 178-degree viewing angles.
02
Android 11 platform
Runs on a quad-core A55 processor with 4 GB RAM and 32 GB ROM.
03
4K decoding
Decodes H.265 HEVC up to 2160p at 60 fps.
04
Remote management
Programs are managed by time and location and controlled from the platform.
05
Split-screen layouts
Intelligent split screen lets the page layout be adjusted for different scenes.
06
Built-in audio
Two 5 W speakers and a 3.5 mm audio output.
07
Connectivity
RJ-45 Ethernet, dual-band Wi-Fi, USB 2.0 and USB 3.0 ports, and a TF card slot up to 128 GB.
08
Wall mounting
400 x 400 mm VESA pattern, with the wall-mount bracket listed in the accessories.
Specifications
31 specificationsGeneral
Key Features4K UHD, Android 11, remote platform management, 24/7 operation, landscape and portrait, intelligent split screen, 2 × 5 W speakers, wall mount
ModelLDH65-SAI400L V2
TypeWall-mounted Digital Signage Display
Display
Aspect Ratio16:9
BacklightELED
Brightness500 nits (typical)
Contrast RatioIPS 1,200:1 (typical); VA 4,000:1 (typical)
Panel TechnologyIPS/VA
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size65 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 11.0
ProcessorQuad-core A55, 1.92 GHz
RAM4 GB
Storage32 GB ROM
Storage Conditions-20 to 60 °C, 10% to 90% RH, non-condensing
Audio
Speaker Output2 × 5 W
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI 2.1 In × 1, RJ-45 × 1, USB 2.0 × 1, USB 3.0 × 1, 3.5 mm audio out × 1, TF card slot (up to 128 GB)
Wi-Fi802.11 b/g/n/a/ac/ax, dual-band
Power
Power Consumption141 W (typical), 172 W (max)
Standby Power≤0.5 W
Physical
ColorBlack
Dimensions1451.8 x 826.7 x 25.0 mm (without bracket)
MountingWall mount
Operating Humidity10% to 85% RH, non-condensing
Operating Temperature0 to 40 °C (avoid direct sunlight)
VESA Mount400 x 400 mm
Weight26.5 kg
Compliance
CertificationsCE EMC, CE LVD, CE ERP, RED
Downloads
Manufacturer documents for the Dahua 65-inch Indoor Wall-mounted Digital Signage Display – LDH65-SAI400L V2 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the LDH65-SAI400L V2 built for 24/7 operation?
Yes. The manufacturer describes the display as designed for 24/7 operation. Its listed operating temperature is 0 to 40 °C, and the manufacturer advises avoiding direct sunlight, so install it indoors within that range.
What resolution and brightness does the LDH65-SAI400L V2 offer?
It offers 3840 x 2160 (4K UHD) resolution on a 65-inch 16:9 panel with 500 nits typical brightness. The IPS contrast ratio is 1,200:1 typical and the VA contrast ratio is 4,000:1 typical, with 178-degree viewing angles.
Can the display be wall mounted, and what VESA pattern does it use?
Yes. It is a wall-mount display with a 400 x 400 mm VESA pattern, and the wall-mount bracket is listed in the accessories. The depth is 25.0 mm without the bracket and 27.5 mm with it.
What storage and media formats does the LDH65-SAI400L V2 support?
It has 4 GB RAM, 32 GB ROM and a TF card slot for cards up to 128 GB. The player decodes H.265 HEVC up to 2160p at 60 fps, H.264 AVC up to 2160p at 30 fps, VP9 Profile 2 up to 2160p at 60 fps, and WMV/VC-1 and MPEG-4 up to 1080p at 30 fps.
Can it be managed remotely across several screens?
Yes. The device uses B/S architecture, so programs are managed by time and location and operation reports are generated. It can also be controlled remotely through the unified management platform.
