DahuaFloor Standing KiosksSKU LDV55-PAI400TL

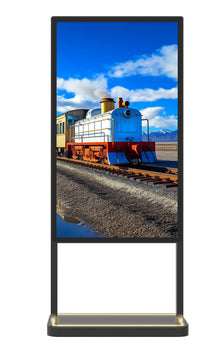

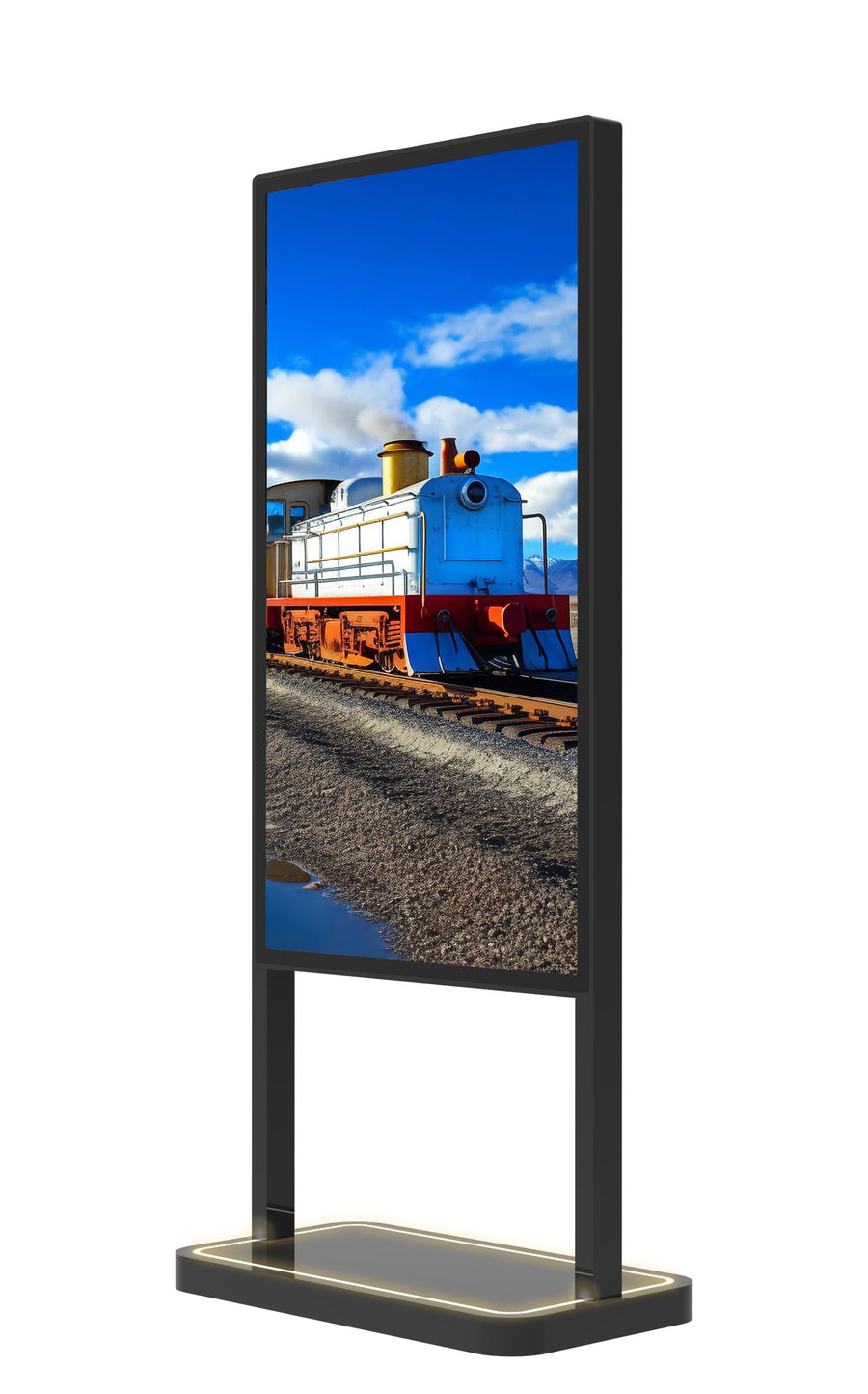

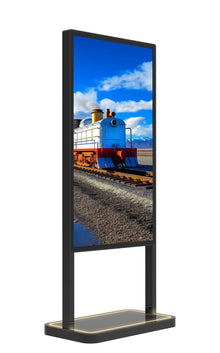

Dahua 55-inch Vertical Touch Digital Signage Kiosk – LDV55-PAI400TL
The Dahua LDV55-PAI400TL is a 55-inch vertical LCD digital signage kiosk with 4K UHD resolution, 10-point capacitive touch and Android 11. It suits busy lobbies, retail floors and wayfinding points that run 24 hours a day, with remote platform management. Procure.ae supplies it in the UAE.
The LDV55-PAI400TL uses an industrial-grade 55-inch panel with 3840 x 2160 resolution, 700 nits typical brightness and 10-bit colour. A quad-core A55 processor at 1.92 GHz, 4 GB RAM and 32 GB storage run Android 11. The unit decodes H.265 and H.264 up to 2160p, plays mp4, avi, mov, mkv and wmv files, and supports intelligent split-screen layouts. Capacitive touch provides 10 touch points.
The 55-inch model is a portrait unit supplied with a floor-standing base. The manufacturer's platform lets operators schedule programmes by time and location and generate operation reports. An RJ-45 Gigabit Ethernet port, USB ports and a TF card slot handle connectivity, and Wi-Fi is available through an optional external module. It sits between the 43-inch and 65-inch vertical kiosks in the Dahua Pro Series, with a maximum power draw of 220 W.
Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
700 nits (typical)
Touch Technology
PCAP
- Industrial-grade 4K panel
- Quad-core Android platform
- 4K video decoding
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Industrial-grade 4K panel
The LCD is designed to run up to 24 hours a day.
02
Quad-core Android platform
A quad-core A55 processor at 1.92 GHz runs Android 11 with 4 GB RAM and 32 GB storage.
03
4K video decoding
Decodes H.265 HEVC and H.264 AVC up to 2160p@60 fps, plus VP9 Profile 2 up to 2160p@60 fps.
04
Capacitive touch
The panel supports 10 touch points for interactive wayfinding and information screens.
05
Intelligent split screen
Page layouts can be freely adjusted to suit a variety of scenes.
06
Remote platform management
Programmes are scheduled by time and location, and the platform can control the unit remotely.
07
Built-in speakers
Two 5 W speakers and a 3.5 mm audio output jack are fitted.
08
Operation reports
The B/S-based platform generates operation reports for each unit.
Specifications
34 specificationsGeneral
Key FeaturesIndustrial-grade panel, 24-hour operation, Android 11, 4K decoding, intelligent split screen, remote platform management, time and location scheduling, operation reports
ModelLDV55-PAI400TL
TypeVertical Digital Signage Kiosk
What's in the BoxBase, remote control, power cord, user's manual
Display
Aspect Ratio9:16
Brightness700 nits (typical)
Color Depth10-bit (8-bit + FRC)
OrientationPortrait
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size55 inch
Touch Points10-point multi-touch
Touch TechnologyPCAP
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 11
ProcessorQuad-core A55, 1.92 GHz
RAM4 GB
Storage32 GB
Audio
Speaker Output2 × 5 W built-in speakers
Connectivity
EthernetRJ-45 10/100/1000 Mbps
HDMI InputsHDMI 2.1 × 1 (4K @ 60 Hz)
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 1, RJ-45 Ethernet × 1, USB 2.0 × 1, USB 3.0 × 1, TF card slot × 1, 3.5 mm audio out × 1
USB PortsUSB 2.0 × 1, USB 3.0 × 1
Wi-FiOptional external Wi-Fi module
Power
Power Consumption220 W (maximum)
Standby Power0.5 W (maximum)
Physical
ColorBlack
Dimensions775 x 1900 x 460 mm (W x H x D)
MountingFloor-standing with base
Operating Humidity10% to 85% RH, non-condensing
Operating Temperature0 to 40 °C
Weight57.6 kg (net)
Compliance
CertificationsCE EMC, CE LVD, CE ERP
Downloads
Manufacturer documents for the Dahua 55-inch Vertical Touch Digital Signage Kiosk – LDV55-PAI400TL — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the LDV55-PAI400TL designed for portrait display?
Yes. It is a vertical 55-inch unit with a 9:16 aspect ratio, and the display mode is portrait. The manufacturer lists the installation as vertical, so content should be built for portrait layouts. Intelligent split-screen can divide the screen into zones.
Does the LDV55-PAI400TL run 24 hours a day?
Yes. The manufacturer describes the panel as industrial-grade and designed to work up to 24 hours a day. The operating temperature range is 0 to 40 °C, and the manufacturer advises avoiding direct sunlight.
Can the LDV55-PAI400TL be managed remotely?
Yes. The unit uses a B/S architecture, so programmes can be scheduled by time and location and the unit can be controlled from the unified management platform. It also generates operation reports for each device.
Which video formats does the LDV55-PAI400TL play?
It decodes H.265 HEVC and H.264 AVC up to 2160p@60 fps, VP9 Profile 2 up to 2160p@60 fps, and MPEG-4 and WMV/VC-1 up to 1080p@60 fps. Supported container formats are mp4, avi, mov, mkv and wmv.
Does the LDV55-PAI400TL have built-in Wi-Fi?
No. Wi-Fi is available only through an optional external module. The unit has a built-in RJ-45 10/100/1000 Mbps Ethernet port for a wired network connection. Most installations therefore use the wired port.
