DahuaMeeting Room SolutionsSKU LDH43-SAI400TL

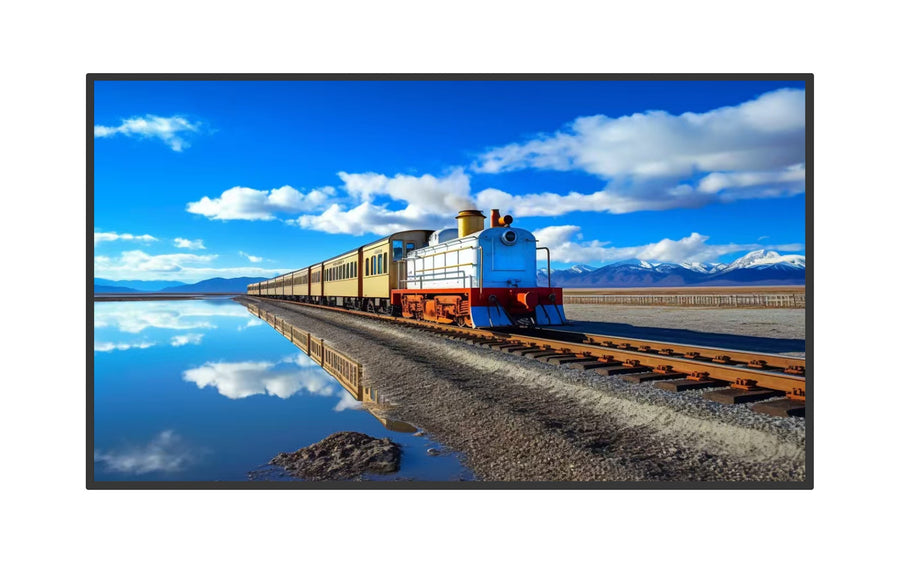

Dahua 43-inch Wall-Mounted Touch Digital Signage Display – LDH43-SAI400TL
The Dahua LDH43-SAI400TL is a 43-inch wall-mounted touch digital signage display with a 4K UHD panel, 10-point capacitive touch and Android 11. It suits interactive information points and commercial signage where visitors touch the screen. Procure.ae supplies it across the UAE.
The LDH43-SAI400TL combines a 3840 x 2160 (4K UHD) panel at 500 nits with 10-point capacitive touch, and the manufacturer lists touch response time as 8 ms or more. The panel has 1,200:1 contrast in IPS and 4,000:1 in VA, 178-degree viewing angles and an 8 ms response time. The unit runs Android 11 on a quad-core A55 processor at 1.92 GHz, with 4 GB RAM and 32 GB storage, and it decodes H.265 HEVC and VP9 up to 2160p at 60 fps.
It fits wall-mounted touch installations that need Android-based content, scheduling and remote management. The unit is managed through a unified B/S platform that handles programs by time and location and generates operation reports. Its VESA pattern is 400 x 400 mm. The TL carries the same connectivity as the LDH43-SAI400L V2, with Ethernet, Wi-Fi, HDMI 2.1 input, USB 2.0 and USB 3.0 ports and a TF card slot. Procure.ae supplies it with delivery and installation across the UAE and MEA.
Screen Size
43 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Touch Technology
Capacitive
- 10-point touch
- 4K UHD display
- Touch response
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
10-point touch
Capacitive touch with 10 touch points.
02
4K UHD display
3840 x 2160 resolution at 500 nits, with 178-degree viewing angles.
03
Touch response
Touch response time of 8 ms or more.
04
Android 11 platform
Quad-core A55 at 1.92 GHz, with 4 GB RAM and 32 GB storage.
05
4K decoding
Decodes H.265 and VP9 up to 2160p at 60 fps.
06
Scheduled playback
Programs play by time and location, with intelligent split-screen layouts.
07
Remote management
Unified platform management, remote control and operation reports.
08
Industrial-grade panel
Built with an industrial-grade panel for continuous use.
Specifications
39 specificationsGeneral
Key Features10-point capacitive touch, 4K UHD panel, Android 11, 4K decoding, timed and location playback, remote platform management, built-in speakers
ModelLDH43-SAI400TL
TypeTouch Digital Signage Display
What's in the BoxWall-mount bracket, remote control, user manual, legal and regulatory information, energy label
Display
Aspect Ratio16:9
BacklightELED
Brightness500 nits
Color Depth10-bit (8-bit + FRC), 1.07 billion colours
Contrast Ratio1,200:1 (IPS) / 4,000:1 (VA)
OrientationLandscape or portrait
Panel TechnologyIPS/VA
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size43 inch
Touch Points10-point multi-touch
Touch Response Time8 ms or more
Touch TechnologyCapacitive
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 11
ProcessorQuad-core A55, 1.92 GHz
RAM4 GB
Storage32 GB
Storage Conditions-20 to 60 °C
Audio
Speaker Output2 × 5 W
Connectivity
Ethernet1 × RJ-45, 10/100/1,000 Mbps
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI 2.1 In × 1, USB 2.0 × 1, USB 3.0 × 1, RJ-45 × 1, 3.5 mm audio out × 1
SD Card SlotTF card slot, up to 128 GB
Wi-Fi802.11 b/g/n/a/ac/ax
Power
Power Consumption100 W (typical), 125 W (maximum)
Physical
ColorBlack (frame and rear)
Dimensions967.0 x 556.0 x 28.8 mm (without bracket)
MaterialMetal casing
MountingWall mount
Operating Humidity10% to 85% RH, non-condensing
Operating Temperature0 to 40 °C
VESA Mount400 x 400 mm
Weight17.5 kg (net)
Compliance
CertificationsCE EMC, CE LVD, CE ERP, RED
Downloads
Manufacturer documents for the Dahua 43-inch Wall-Mounted Touch Digital Signage Display – LDH43-SAI400TL — datasheets, manuals, drawings and certificates.
- Datasheet – Standard Series – LDH43-SAI400TL
- Datasheet – Standard Series – LDH43-SAI400TL datasheet 20260112
- User manual – Dahua Pro Series / Standard Series
- User manual – Dahua Pro Series / Standard Series
- Installation guide – Standard Series – LDH43-SAI400TL INSTALLATION PROCEDURE
- Drawing – Standard Series – LDH43-SAI400TL DIMENSIONS
- LDH43-SAI400TL PORT
Questions
Can’t find your answer? Ask on WhatsApp
Does the LDH43-SAI400TL support touch input?
Yes. It uses capacitive touch with 10 touch points, and the manufacturer lists touch response time as 8 ms or more. The panel is a 4K UHD display with 500 nits brightness, so touch content stays sharp on screen.
How does the LDH43-SAI400TL differ from the LDH43-SAI400L V2?
The TL adds 10-point capacitive touch. It is heavier, at 17.5 kg net against 13.0 kg for the L V2, and its product dimensions are 967.0 x 556.0 x 28.8 mm without the bracket. Both share the 43-inch 4K panel and the Android 11 platform.
Can the LDH43-SAI400TL be wall-mounted?
Yes. It is listed for wall mounting with a 400 x 400 mm VESA pattern, and a wall-mount bracket is included. With the bracket fitted, the depth is 31.1 mm.
Does it need a separate media player?
No. The display runs Android 11 on a quad-core A55 processor at 1.92 GHz with 4 GB RAM and 32 GB storage. Ethernet and Wi-Fi 802.11 b/g/n/a/ac/ax are built in, so the display can be managed over the network.
What power does it draw?
It runs on 100–240 V AC, 50/60 Hz and draws 100 W typical and 125 W maximum. Standby consumption is 0.5 W or less, and the operating range is 0 to 40 °C.
