DahuaDigital SignageSKU LDH43-SAI400L V2

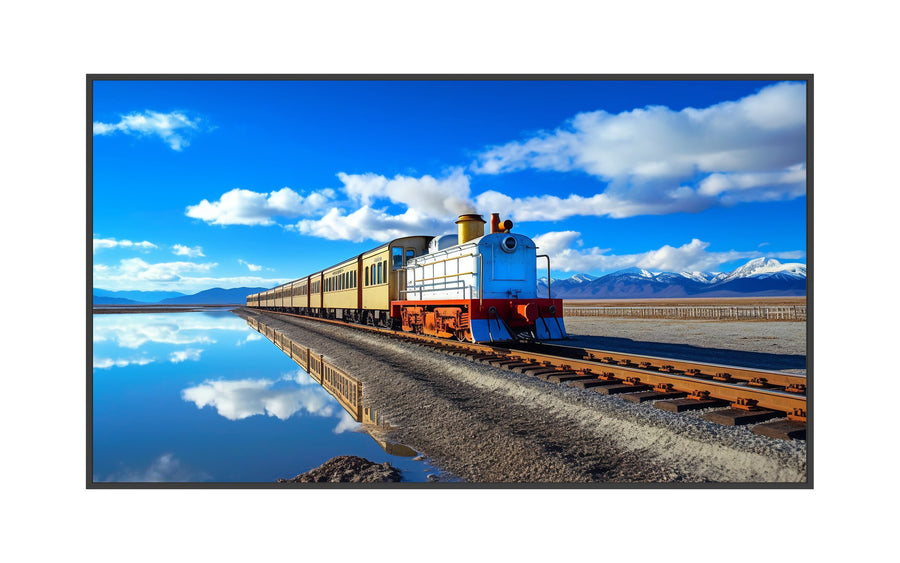

Dahua 43-inch Indoor Wall-Mounted Digital Signage Display – LDH43-SAI400L V2
The Dahua LDH43-SAI400L V2 is a 43-inch indoor wall-mounted digital signage display with a 4K UHD panel, Android 11 and 500 nits brightness. It is built for commercial advertising and information display, with remote management and programs scheduled by time and location. Procure.ae supplies it across the UAE.
The panel delivers 3840 x 2160 (4K UHD) at 500 nits with a 16:9 aspect ratio and 178-degree viewing angles. The 10-bit colour display (8-bit plus FRC) is driven by a quad-core A55 processor at 1.92 GHz, with 4 GB RAM and 32 GB storage, running Android 11. The unit decodes H.265 and VP9 up to 2160p at 60 fps, and it has two built-in 5 W speakers. The panel is an industrial-grade design for continuous signage use.
The display suits commercial sites where a wall-mounted screen runs advertising or information content. Programs are scheduled by time and location through a B/S-architecture platform that generates operation reports and can remotely control the device. Connectivity covers HDMI 2.1 input, Gigabit Ethernet, Wi-Fi 802.11 b/g/n/a/ac/ax, USB 2.0 and USB 3.0 ports and a TF card slot. The LDH43-SAI400TL is the touch version of this model, so choose the L V2 for non-touch signage.
Screen Size
43 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- Industrial-grade panel
- 4K decoding
- Android 11 platform
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Industrial-grade panel
Built with an industrial-grade panel for 24/7 signage use.
02
4K decoding
Decodes H.265 and VP9 up to 2160p at 60 fps.
03
Android 11 platform
Quad-core A55 at 1.92 GHz, with 4 GB RAM and 32 GB storage.
04
Scheduled playback
Programs play by time and location, in multiple playback modes.
05
Split-screen layouts
Intelligent split-screen lets page layouts be adjusted freely.
06
Remote management
A unified platform manages programs, remotely controls the device and generates operation reports.
07
Connectivity options
HDMI 2.1 input, Gigabit Ethernet, Wi-Fi 802.11 b/g/n/a/ac/ax, USB 2.0, USB 3.0 and a TF card slot up to 128 GB.
08
Built-in speakers
Two 5 W speakers and a 3.5 mm audio output.
Specifications
36 specificationsGeneral
Key FeaturesIndustrial-grade panel, Android 11, 4K decoding, timed and location playback, remote platform management, split-screen layouts, landscape or portrait
ModelLDH43-SAI400L V2
TypeDigital Signage Display
What's in the BoxWall-mount bracket, remote control, user manual, legal and regulatory information, energy label
Display
Aspect Ratio16:9
BacklightELED
Brightness500 nits
Color Depth10-bit (8-bit + FRC), 1.07 billion colours
Contrast Ratio1,200:1 (IPS) / 4,000:1 (VA)
OrientationLandscape or portrait
Panel TechnologyIPS/VA
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size43 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 11
ProcessorQuad-core A55, 1.92 GHz
RAM4 GB
Storage32 GB
Storage Conditions-20 to 60 °C
Audio
Speaker Output2 × 5 W
Connectivity
Ethernet1 × RJ-45, 10/100/1,000 Mbps
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI 2.1 In × 1, USB 2.0 × 1, USB 3.0 × 1, RJ-45 × 1, 3.5 mm audio out × 1
SD Card SlotTF card slot, up to 128 GB
Wi-Fi802.11 b/g/n/a/ac/ax
Power
Power Consumption100 W (typical), 125 W (maximum)
Physical
ColorBlack (frame and rear)
Dimensions964.6 x 552.9 x 25.0 mm (without bracket)
MaterialMetal casing
MountingWall mount
Operating Humidity10% to 85% RH, non-condensing
Operating Temperature0 to 40 °C
VESA Mount400 x 400 mm
Weight13.0 kg
Compliance
CertificationsCE EMC, CE LVD, CE ERP, RED
Downloads
Manufacturer documents for the Dahua 43-inch Indoor Wall-Mounted Digital Signage Display – LDH43-SAI400L V2 — datasheets, manuals, drawings and certificates.
- Datasheet – Standard Series – LDH43-SAI400L
- Datasheet – Standard Series – LDH43-SAI400L datasheet 20260112
- User manual – Dahua Pro Series / Standard Series
- User manual – Dahua Pro Series / Standard Series
- Installation guide – Standard Series – LDH43-SAI400L INSTALLATION PROCEDURE
- Drawing – Standard Series – LDH43-SAI400L DIMENSIONS
- LDH43-SAI400L PORT
Questions
Can’t find your answer? Ask on WhatsApp
Does the LDH43-SAI400L V2 support 4K playback?
Yes. The panel resolution is 3840 x 2160 (4K UHD), and the player decodes H.265 HEVC up to 2160p at 60 fps and VP9 Profile 2 up to 2160p at 60 fps. H.264 AVC decodes up to 2160p at 30 fps.
Can the LDH43-SAI400L V2 be wall-mounted?
Yes. It is designed for wall installation with a 400 x 400 mm VESA pattern, and a wall-mount bracket is included. It can be mounted and used in landscape or portrait display mode.
Can the displays be managed remotely?
Yes. The B/S-architecture platform manages programs by time and location, generates operation reports and can remotely control the device. The unified platform management also handles the device from one place.
Does it need a separate media player?
No. The display runs Android 11 on a quad-core A55 processor at 1.92 GHz with 4 GB RAM and 32 GB ROM. Ethernet and Wi-Fi 802.11 b/g/n/a/ac/ax are built in, and a TF card slot takes up to 128 GB.
What power and environment does it need?
It runs on 100–240 V AC, 50/60 Hz, and draws 100 W typical and 125 W maximum, with standby power of 0.5 W or less. Operate it at 0 to 40 °C and 10% to 85% RH, non-condensing, and avoid direct sunlight.
Can I buy the LDH43-SAI400L V2 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
