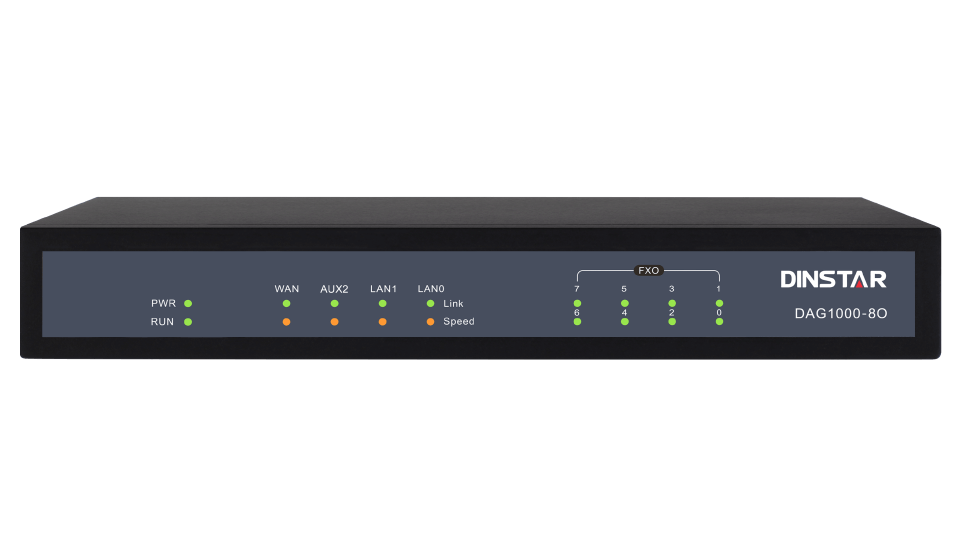

The Dinstar DAG1000-8O FXO VoIP Gateway is a voip & telephony available in the UAE from Procure.ae.
The Dinstar DAG1000-8O is an 8-port FXO VoIP gateway designed for businesses that need higher analog trunk density while integrating legacy telephony infrastructure with SIP-based IP networks. Dinstar markets it as a low-cost and easy-to-use option for small and medium businesses, call centers, SOHO sites, remote offices, and multi-branch enterprises.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features
- 8 FXO ports for PSTN and analog PBX connectivity
- 1 WAN and 2 LAN interfaces
- SIP, IMS, and SIP v2.0 support over UDP/TCP/TLS
- T.38 / T.30 fax and pass-through support
- Flexible routing and dial plan
- Interoperable with leading softswitches, IP-PBXs, and SIP servers
- 3-way conference, call waiting, call transfer, call forwarding, DND, hunting group, voicemail, MWI, and music on hold
- QoS, VLAN tagging, TLS/SRTP, SNMP/TR-069, auto provisioning, and firmware/configuration updates
Ideal for: offices, schools, and government facilities across Dubai, Abu Dhabi, Sharjah and the wider GCC.
General
| Name |
Dinstar DAG1000-8O FXO VoIP Gateway |
| Key Features |
T.38/pass-through fax, Caller ID (FSK/DTMF), Polarity reversal, Cloud-based management, Auto provisioning |
| Type |
Analog FXO VoIP Gateway |
Performance
| Storage Conditions |
Temperature: -20 to 80 °C |
Audio
| Audio Codecs |
G.711 A/μ, G.723.1, G.729 A/B, G.726 |
| Voice Quality |
G.168 echo cancellation (128 ms), adaptive jitter buffer, VAD, CNG |
Connectivity
| Connectivity |
8 x FXO (RJ11), Ethernet, SIP |
| Ethernet |
1 x WAN + 3 x LAN, 10/100 Mbps RJ45 |
| Input Voltage |
100-240 V AC, 50/60 Hz |
| Ports |
8 x FXO (RJ11) |
| Protocols |
SIP 2.0 (UDP/TCP), RFC3261, SDP, RTP (RFC2833), STUN, IPv4, PPPoE, DHCP, OpenVPN, TR069/TR181, SNMP |
Power
| Power Source |
External adapter, DC 12 V |
Physical
| Dimensions |
242 x 152 x 40 mm |
| Operating Humidity |
10% to 90% RH (non-condensing) |
| Operating Temperature |
0°C to 45°C |
| Weight |
1 kg |
Compliance
| Security Features |
SIP TLS, SRTP |
Frequently Asked Questions
Where can I buy the Dinstar DAG1000-8O FXO VoIP Gateway in the UAE?
Procure.ae is an authorized UAE supplier of the Dinstar DAG1000-8O FXO VoIP Gateway, with delivery across Dubai, Abu Dhabi, Sharjah and the GCC, free demos, and procurement-ready quotations.
What is the Dinstar voip & telephony used for?
The Dinstar DAG1000-8O is an 8-port FXO VoIP gateway designed for businesses that need higher analog trunk density while integrating legacy telephony infrastructure with SIP-based IP networks.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Is this certified for Microsoft Teams and Zoom?
It works with major video platforms; ask us for the exact certifications on this model.
