DinstarPABX & VoIPSKU DAG1000-2S2O

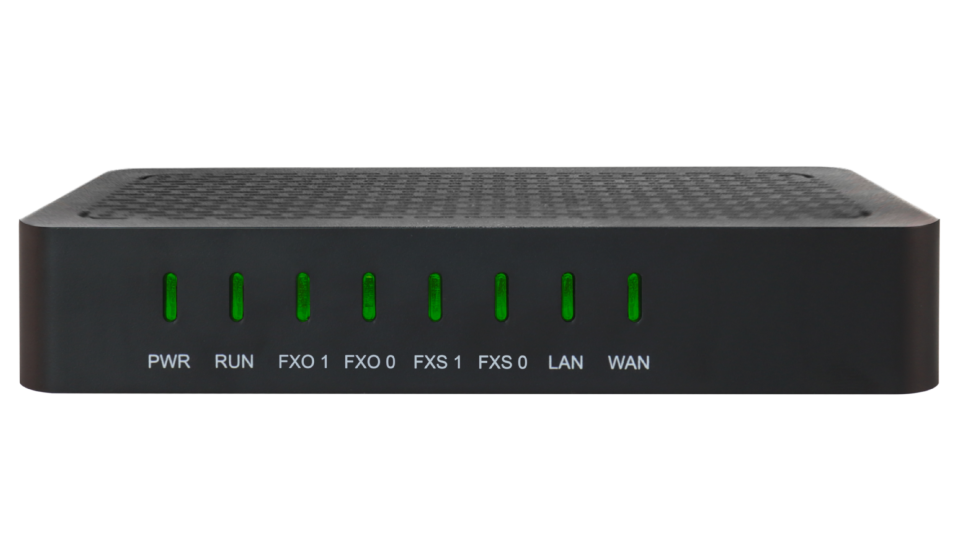

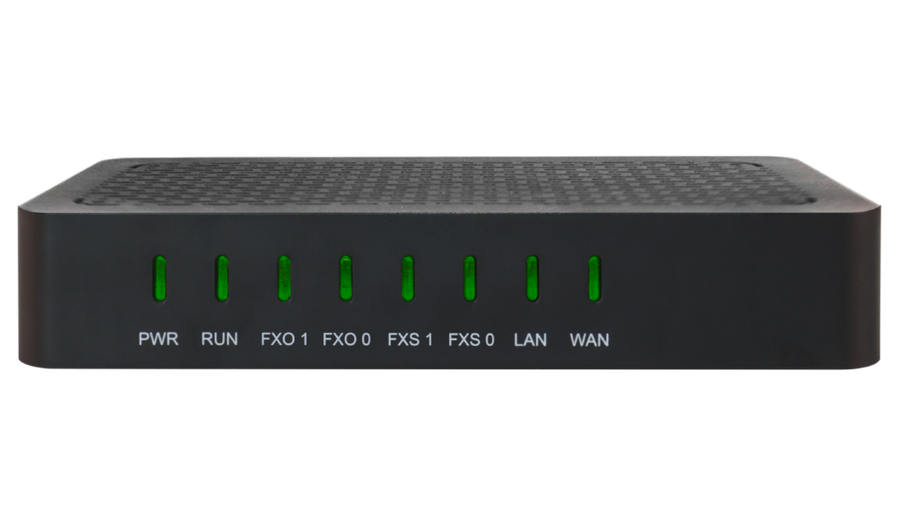

Dinstar DAG1000-2S2O Hybrid VoIP Gateway
The Dinstar DAG1000-2S2O Hybrid VoIP Gateway is a voip & telephony available in the UAE from Procure.ae.
The Dinstar DAG1000-2S2O is a multi-purpose hybrid analog VoIP gateway that combines 2 FXS ports and 2 FXO ports in a single platform. It is designed for businesses that need to connect analog phones, fax machines, and PSTN lines to an IP-based voice network without replacing all existing telephony infrastructure at once.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Type
Hybrid Analog VoIP Gateway
Weight
0.6 kg
- 2 FXS + 2 FXO ports, 1 WAN, 1 LAN
- Power failover and IP/SIP failover
- SIP, IMS, and SIP v2.0 over UDP/TCP/TLS
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
2 FXS + 2 FXO ports, 1 WAN, 1 LAN
02
Power failover and IP/SIP failover
03
SIP, IMS, and SIP v2.0 over UDP/TCP/TLS
04
T.38 / T.30 fax and pass-through support
05
Flexible routing and dial plan
06
3-way conference, call transfer, call forwarding, voicemail, MWI, music on hold
07
QoS, VLAN tagging, TLS/SRTP, SNMP/TR-069
08
Interoperable with leading softswitches, IP-PBXs, and SIP servers
Specifications
18 specificationsGeneral
CompatibilityIMS/NGN and SIP-based IP telephony systems
Key FeaturesPower and network failure lifeline, Call detection, Reverse polarity detection
TypeHybrid Analog VoIP Gateway
Performance
Storage ConditionsTemperature: -20 to 80 °C
Audio
Audio CodecsG.711 A/μ, G.723.1, G.729 A/B, G.726, AMR
Voice QualityG.168 echo cancellation (128 ms)
Connectivity
Connectivity2 x FXS + 2 FXO (RJ11), Ethernet, SIP
Ethernet1 x WAN + 1 x LAN, 10/100 Mbps RJ45
Input Voltage100-240 V AC
Ports2 x FXS + 2 x FXO (RJ11)
ProtocolsSIP 2.0 (UDP/TCP), RFC3261
Power
Power Consumption10 W
Power Source12 V DC, 2 A
Physical
Dimensions242 x 152 x 40 mm
Operating Humidity10% to 90% RH (non-condensing)
Operating Temperature0°C to 45°C
Weight0.6 kg
Compliance
CertificationsCE, FCC
Questions
Can’t find your answer? Ask on WhatsApp
What is the Dinstar voip & telephony used for?
The Dinstar DAG1000-2S2O is a multi-purpose hybrid analog VoIP gateway that combines 2 FXS ports and 2 FXO ports in a single platform.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Is this certified for Microsoft Teams and Zoom?
It works with major video platforms; ask us for the exact certifications on this model.
What is this — a webcam, video bar, or full room system?
