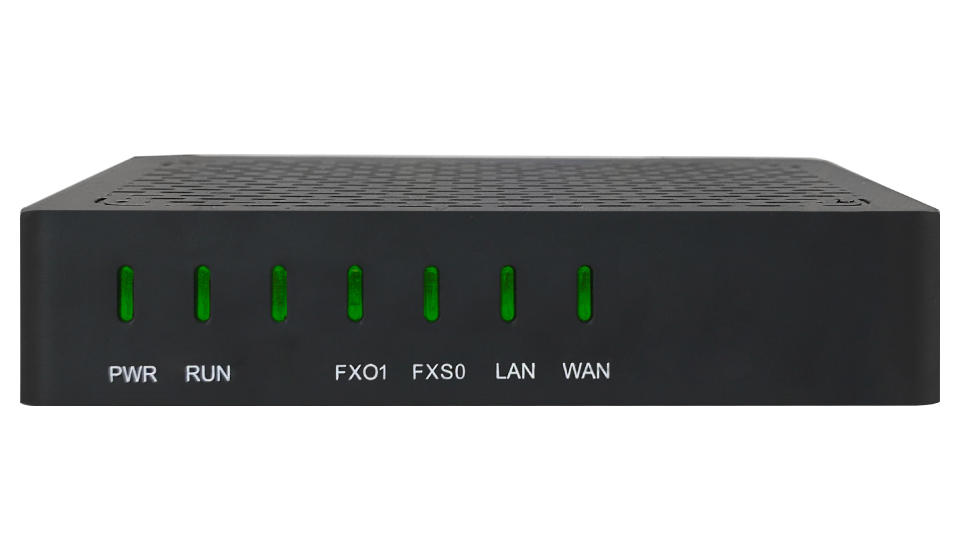

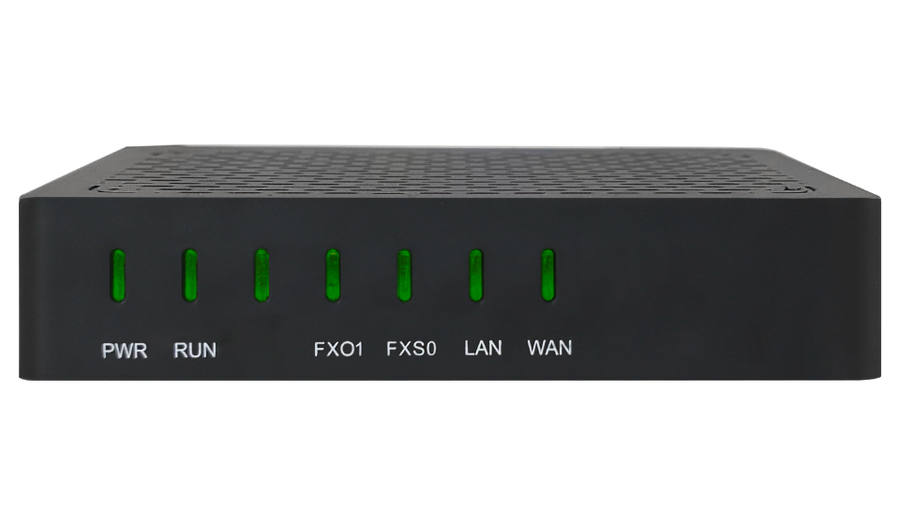

Dinstar DAG1000-1S1O Hybrid VoIP Gateway
The Dinstar DAG1000-1S1O Hybrid VoIP Gateway is a voip & telephony available in the UAE from Procure.ae.
The Dinstar DAG1000-1S1O is a compact hybrid analog VoIP gateway built to bridge legacy telephony and modern IP voice networks in one device. It combines 1 FXS port and 1 FXO port, allowing you to connect analog phones, fax machines, and PSTN lines while keeping migration to VoIP simple and low cost.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Type
Hybrid Analog VoIP Gateway
Weight
0.2 kg
- 1 FXS + 1 FXO port, 1 WAN, 1 LAN
- Power failover and IP/SIP failover
- SIP, IMS, and SIP v2.0 over UDP/TCP/TLS
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
1 FXS + 1 FXO port, 1 WAN, 1 LAN
02
Power failover and IP/SIP failover
03
SIP, IMS, and SIP v2.0 over UDP/TCP/TLS
04
T.38 / T.30 fax and pass-through support
05
Flexible routing and dial plan
06
3-way conference, call transfer, call forwarding, voicemail, MWI, music on hold
07
QoS, VLAN tagging, TLS/SRTP, SNMP/TR-069
08
Interoperable with leading softswitches, IP-PBXs, and SIP servers
Specifications
18 specificationsGeneral
Key FeaturesPower and network failure lifeline, Call detection, Reverse polarity detection
TypeHybrid Analog VoIP Gateway
Performance
Storage ConditionsTemperature: -20 to 80 °C
Audio
Audio CodecsG.711 A/μ, G.723.1, G.729 A/B, G.726, AMR
Voice QualityG.168 echo cancellation (128 ms)
Connectivity
Connectivity1 x FXS + 1 FXO (RJ11), Ethernet, SIP
Ethernet1 x WAN + 1 x LAN, 10/100 Mbps RJ45
Input Voltage100-240 V AC
Ports1 x FXS + 1 x FXO (RJ11)
ProtocolsSIP 2.0 (UDP/TCP), RFC3261, RTP/RTCP, STUN, SNMP v1/v2/v3, TR069/TR181
Power
Power Consumption10 W
Power Source12 V DC, 2 A
Physical
Dimensions242 x 152 x 40 mm
Operating Humidity10% to 90% RH (non-condensing)
Operating Temperature0°C to 45°C
Weight0.2 kg
Compliance
CertificationsCE, FCC
Security FeaturesSIP TLS, SRTP
Questions
Can’t find your answer? Ask on WhatsApp
What is the Dinstar voip & telephony used for?
The Dinstar DAG1000-1S1O is a compact hybrid analog VoIP gateway built to bridge legacy telephony and modern IP voice networks in one device.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Is this certified for Microsoft Teams and Zoom?
It works with major video platforms; ask us for the exact certifications on this model.
