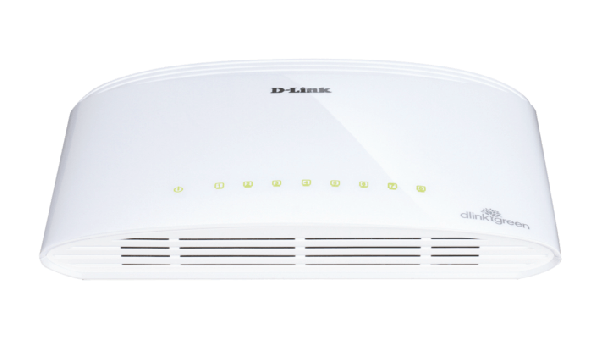

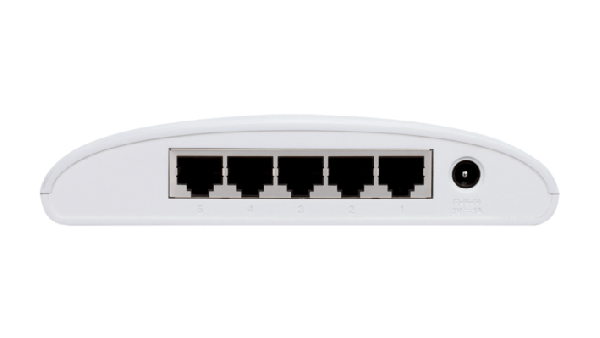

D-Link DGS-1005D 5-Port Gigabit Unmanaged Desktop Switch

Key Features

• ƒƒBuilt-in D-Link Green Technology
• ƒƒInexpensive Gigabit solution for Home/SOHO
• ƒƒFive 10/100/1000 Mbps Gigabit ports
• ƒƒ10 Gbps switching fabric
• ƒƒAuto MDI/MDIX crossover for all ports
• ƒƒSecure store-and-forward switching scheme
• ƒƒFull/half-duplex for Ethernet/Fast Ethernet speeds
• ƒƒIEEE 802.3x Flow Control
• ƒƒSupports 9,000 Byte Jumbo Frames
• ƒƒSupports IEEE 802.1p QoS (4 Queues, Strict Mode)
• ƒƒSupports Cable Diagnostics Function
• ƒƒRoHS compliant
• ƒƒPlug-and-play installation

Standards

• ƒƒIEEE 802.3 10BASE-T Ethernet (twistedpair copper)
• ƒƒIEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
• ƒƒIEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
• ƒƒANSI/IEEE 802.3 NWay auto-negotiation
• ƒƒIEEE 802.3x Flow Control
• ƒƒIEEE 802.1p QoS
• ƒƒIEEE 802.3az Energy-Efficient Ethernet (EEE)

Protocol

• ƒƒCSMA/CD

Data Transfer Rates

• ƒƒEthernet:
  • ƒƒ10 Mbps (half duplex)
  • ƒƒ20 Mbps (full duplex)
• ƒƒFast Ethernet:
  • ƒƒ100 Mbps (half duplex)
  • ƒƒ200 Mbps (full duplex)
• ƒƒGigabit Ethernet:
  • ƒƒ2000 Mbps (full duplex)

Topology

• ƒƒStar

Network Cables

• ƒƒ10BASE-T:
  • ƒƒUTP CAT 3, 4, 5/5e (100 m max.)
  • ƒƒEIA/TIA-586 100-ohm STP (100 m max.)
• ƒƒ100BASE-TX, 1000BASE-T:
  • ƒƒUTP CAT 5/5e (100 m max.)
  • ƒƒEIA/TIA-568 100-ohm STP (100 m max.)

Media Interface Exchange

• ƒƒAuto MDI/MDIX adjustment for all ports

LED Indicators

• ƒƒPer port: Link/Activity/Speed
• ƒƒPer device: Power

Transmission Method

• ƒƒStore-and-forward

MAC Address Table

• ƒƒ8K entries per device

MAC Address Learning

• ƒƒAutomatic update

Packet Filtering/Forwarding Rates

• ƒƒEthernet: 14,880 pps per port
• ƒƒFast Ethernet: 148,800 pps per port
• ƒƒGigabit Ethernet: 1,488,000 pps per port

RAM Buffer

• ƒƒ128 KBytes per device

DC Input

• ƒƒExternal 5 V/1 A Power Adapter

Power Consumption

• ƒƒPower On (Standby):
  • ƒƒDC input: 0.86 watts
  • ƒƒAC input: 1.7 watts
• ƒƒMaximum:
  • ƒƒDC input: 2.67 watts
  • ƒƒAC input: 4.3 watts

Heat Dissipation

• ƒƒPower On (Standby): 5.8 BTU/h
• ƒƒMaximum: 14.67 BTU/h

MTBF

• ƒƒ748,420 hours

Operating Temperature

• ƒƒ0 to 40 ˚C (32 to 104 ˚F)

Storage Temperature

• ƒƒ-10 to 70 ˚C (14 to 158 ˚F)

Operating Humidity

• ƒƒ10% to 90% RH non-condensing

Storage Humidity

• ƒƒ5% to 90% RH non-condensing

Device Dimensions (W x D x H)

• ƒƒ144.2 x 100.2 x 32.6 mm (5.7 x 4.0 x 1.3 inches)

Certifications

• ƒƒFCC Class B
• ƒƒICES-003 Class B
• ƒƒCE Class B
• ƒƒC-Tick Class B
• ƒƒVCCI Class B
• ƒƒcUL
• ƒƒCB
