VSYS VTLX16-69FW Heavy-Duty Mobile TV Cart for 55"–100" Displays, 120 kg
- Model: VTLX16-69FW
- SKU: VTLX16-69FW
Actual Stock & Price Can Be Confirmed After Placing the Order.
The VSYS VTLX16-69FW is a heavy-duty mobile TV cart for 55"–100" displays weighing up to 120 kg, with a dedicated conferencing camera shelf, available in the UAE from Procure.ae. Large-format displays are often specified for rooms where drilling the wall is not an option:... See More
The VSYS VTLX16-69FW is a heavy-duty mobile TV cart for 55"–100" displays weighing up to 120 kg, with a dedicated conferencing camera shelf, available in the UAE from Procure.ae.
Large-format displays are often specified for rooms where drilling the wall is not an option: leased offices, glazed partitions, structural glass and fit-out-restricted premises. The VTLX16-69FW removes that constraint by transferring the full 120 kg of display load onto a welded steel column and a wide castered base rather than onto the building. One cart can then rotate between several meeting spaces instead of committing a screen permanently to a single wall.
The display bracket locates at one of four fixed heights - 1150 mm, 1275 mm, 1400 mm or 1525 mm - so the screen centre can be set for seated boardroom sightlines or standing training use. The bracket covers VESA patterns from 200x200 mm through 900x600 mm. A separate height-adjustable shelf carries a conferencing camera of up to 5 kg above the panel, and an equipment shelf takes 10 kg of source hardware. Everything bolts together; no wall or floor fixings are used.
It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features
- Rated for displays up to 120 kg, which covers 98" commercial LCD panels without derating the frame.
- Four preset column heights of 1150, 1275, 1400 and 1525 mm let a single cart serve boardrooms, classrooms and standing huddle areas.
- VESA support from 200x200 mm to 900x600 mm spans effectively the whole 55"–100" commercial display range.

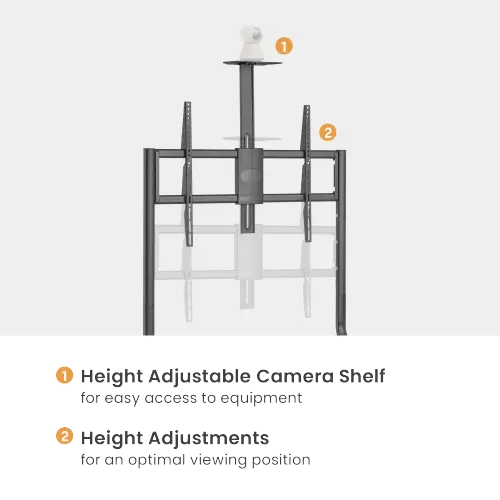

- Height-adjustable camera shelf rated to 5 kg places a conferencing bar on the display centre line instead of off to one side.

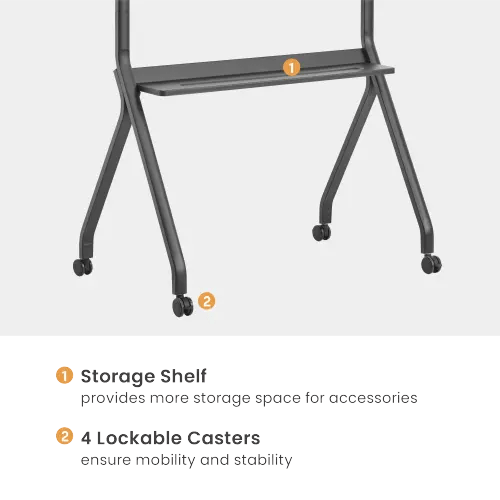

- Equipment shelf rated to 10 kg holds a media player, codec or switcher that travels with the screen.
- Heavy-duty casters lock at each corner, so the cart rolls between rooms and then parks solidly for use.

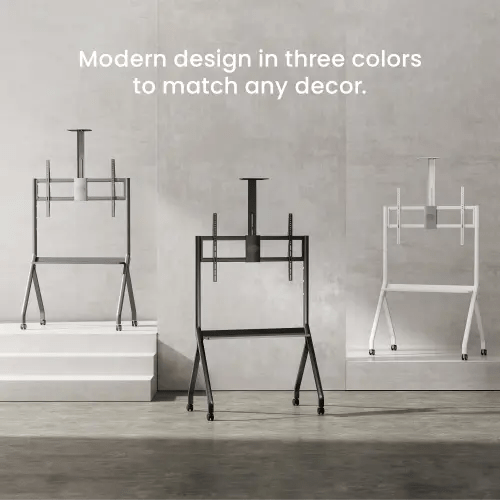

- Powder-coated steel frame offered in fine texture black, matte white or matte grey to suit the room scheme.
- No wall or floor fixing is required, which keeps the cart viable in leased premises and glass-walled meeting rooms.
- Cable clips route leads down the column and off the floor, away from foot traffic.
Technical Specifications
| Display size range | 55" to 100" |
| Display weight capacity | Up to 120 kg |
| Equipment shelf capacity | 10 kg |
| Camera shelf capacity | 5 kg |
| VESA compatibility | 200x200 mm to 900x600 mm |
| Height positions | 1150 mm, 1275 mm, 1400 mm, 1525 mm (four presets) |
| Movement | Four-position height adjustment, fixed display angle |
| Material | Steel and plastic, powder-coated |
| Finishes | Fine texture black, matte white, matte grey |
| Mobility | Four heavy-duty locking casters |
| Cable management | Cable clips along the column |
| In the box | Steel frame, TV bracket, height-adjustable camera shelf, caster base, mounting hardware, assembly guide |
Ideal for: boardrooms and executive meeting rooms, corporate training suites, university lecture rooms and classrooms, hotel conference and banqueting spaces, showrooms and exhibition stands, and government briefing rooms across Dubai, Abu Dhabi, Sharjah and the wider GCC.
| Name | VSYS VTLX16-69FW Heavy-Duty Mobile TV Cart for 55"–100" Displays, 120 kg |
| Height Adjustment Type | Manual preset positions at 1150mm, 1275mm, 1400mm and 1525mm |
| Mounting Type | Free-standing mobile cart on locking casters |
| Screen Size Support | 55 inch to 100 inch |
| Product Type | Mobile TV cart with camera shelf |
| Screen Size Range | 55 inch to 100 inch |
| Load Capacity | 120 kg display, 10 kg equipment shelf, 5 kg camera shelf |
| VESA Compatibility | 200x200mm to 900x600mm |
| Movement | Four-position height adjustment, fixed display angle |
| Height Range | 1150mm to 1525mm |
| Material and Finish | Steel and plastic with powder-coated finish |
| Available Finishes | Fine texture black, matte white, matte grey |
| Mounting Interface | VESA bracket, 200x200mm to 900x600mm |
| Cable Management | Cable clips along the column |
| Shelves | Equipment shelf 10 kg and height-adjustable camera shelf 5 kg |
| Mobility | Four heavy-duty locking casters |
| In the Box | Steel frame, TV bracket, height-adjustable camera shelf, caster base, mounting hardware, assembly guide |
| MPN | VTLX16-69FW |
| Model | VTLX16-69FW |
No datasheet available.
Frequently Asked Questions
Where can I buy the VSYS VTLX16-69FW in the UAE?
Procure.ae supplies the VSYS VTLX16-69FW across the UAE, with delivery to Dubai, Abu Dhabi, Sharjah and the wider GCC and procurement-ready quotations for project quantities.
What size and weight of display does the VTLX16-69FW take?
It is rated for screens from 55" to 100" weighing up to 120 kg, with mounting holes covering VESA patterns from 200x200 mm to 900x600 mm. Check the panel weight and VESA pattern on your display's specification sheet before ordering.
Can the camera shelf hold a video conferencing bar?
Yes. The shelf is height-adjustable and rated to 5 kg, which suits most all-in-one conferencing bars and PTZ cameras. Mounting it above the panel keeps the camera on the display centre line for a natural eye-line in meetings.
Does the cart have to be fixed to the wall or floor?
No. The cart is free-standing on a weighted castered base, so no drilling is needed. That makes it suitable for leased offices, glass-partitioned rooms and any space where wall fixings are not permitted.
What finishes are available, and can you quote several units?
The frame is powder-coated in fine texture black, matte white or matte grey. Procure.ae quotes multi-unit and phased rollouts for corporate, education and government projects; send the quantity and preferred finish with your enquiry.
