ClevertouchInteractive Flat PanelsSKU Pro Series 3 Lite 86"

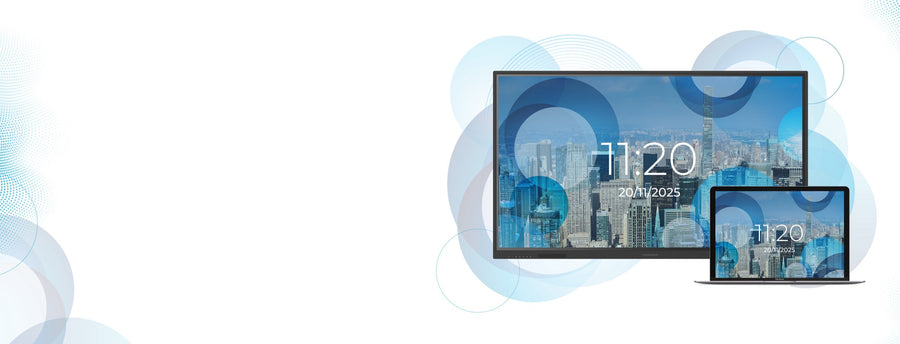

Clevertouch Pro Series 3 Lite 86-inch 4K Interactive Flat Panel
The Clevertouch Pro Series 3 Lite 86-inch is a 4K UHD (3840 x 2160) interactive flat panel with an IPS panel, 40-point infrared touch and 2 × 20 W speakers. It suits large meeting rooms, classrooms and training spaces that need a big touch canvas. Procure.ae supplies it in the UAE.
The panel has a 16:9 aspect ratio, 3840 x 2160 resolution and a 60 Hz refresh rate, with an IPS direct LED backlight. Typical brightness is 350 nits, with a 300 nits minimum, and the contrast ratio is 1,200:1 with a 8 ms response time and a 178° viewing angle. Infrared touch supports 40 touch points at ±1.5 mm accuracy and uses a passive infrared pen. Colour depth is 10-bit, giving 1.07 billion colours, and the NTSC colour gamut is 72%. The manufacturer states an operation time of 7 days × 16 hours.
Procure.ae supplies the Pro Series 3 Lite 86 across the UAE, with delivery and installation. The panel accepts an OPS module, with maximum power of 437 W when one is inserted, and it is compatible with Windows, Android, Linux, Mac OS X and Chrome. The VESA mount is 800 x 600 mm and the net weight is 50.36 kg. Compared with the 75-inch, it has a lower contrast ratio, 1,200:1 against 5,500:1, and draws more power, 203 W typical against 167 W.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits (typical), 300 nits (minimum)
Touch Technology
Infrared
- 4K UHD Display
- 40-Point Infrared Touch
- Colour Depth
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD Display
3840 x 2160 resolution at 60 Hz on a 16:9 IPS panel.
02
40-Point Infrared Touch
40 touch points with ±1.5 mm touch accuracy.
03
Colour Depth
10-bit colour with 1.07 billion colours and 72% NTSC gamut.
04
Direct LED Backlight
350 nits typical brightness and 1,200:1 contrast ratio.
05
Speakers
2 × 20 W speakers with 2.0 channel audio.
06
OPS Slot
supports an OPS module, with 437 W maximum power when inserted.
07
Multi-Input Connectivity
three HDMI In ports, USB-C IN with 65 W charging, and RJ45 in and out.
08
RS232 Control
RS232 serial port at 9600 baud for room control systems.
Specifications
34 specificationsGeneral
CompatibilityWindows 10, Windows 8, Windows 7, Windows XP, Android, Linux, Mac OS X, Chrome
Key Features4K UHD (3840 x 2160), 40-point infrared touch, 1.07 billion colours (10-bit), 60 Hz refresh rate, 2 × 20 W speakers, OPS slot, RS232 control, RJ45 network
ModelPro Series 3 Lite 86"
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
BacklightDirect LED
Brightness350 nits (typical), 300 nits (minimum)
Color Depth10-bit (1.07 billion colours)
Color Gamut72% NTSC
Contrast Ratio1,200:1
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Touch Accuracy±1.5 mm
Touch Points40-point touch
Touch TechnologyInfrared
Viewing Angle178°
Performance
Storage Conditions-20 to 60 °C, 10% to 90% RH
Audio
Channels2.0
Speaker Output2 × 20 W
Connectivity
Ethernet10/100/1000 Mbps (RJ45 in and out)
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotYes (maximum 437 W with OPS inserted)
PortsHDMI In × 3, USB 3.2 × 4, USB 2.0 × 1, USB-C IN × 1 (65 W charging), TOUCH 2.0 × 2, Mic In × 1, Audio Out 3.5 mm × 1, RS232 × 1, RJ45 In × 1, RJ45 Out × 1
Serial PortRS232, 9600 baud
Power
Power Consumption203 W (typical), 437 W (maximum)
Physical
Dimensions1957 x 1159.9 x 97.8 mm
Duty Cycle7 days × 16 hours
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
VESA Mount800 x 600 mm
Weight50.36 kg
Downloads
Manufacturer documents for the Clevertouch Pro Series 3 Lite 86-inch 4K Interactive Flat Panel — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the Clevertouch Pro Series 3 Lite 86 support 4K content?
Yes. The IPS panel has a 3840 x 2160 (4K UHD) resolution at 60 Hz, and the HDMI In ports support up to 4K at 60 Hz. All three HDMI In ports support CEC, and one of them also supports ARC.
Can the Pro Series 3 Lite 86 be wall mounted?
Yes. It has an 800 x 600 mm VESA mount and a net weight of 50.36 kg, so the wall bracket must be rated for that load. Procure.ae can advise on mounting and arrange installation across the UAE.
Do I need a computer to run the Pro Series 3 Lite 86?
The manufacturer describes a connected laptop or PC as running the screen, which gives full control over software, apps and workflows. The specifications list compatibility with Windows, Android, Linux, Mac OS X and Chrome, so check the connected computer before installation.
What touch technology does it use?
It uses infrared touch recognition with 40 touch points and ±1.5 mm accuracy. Writing and annotation use the passive infrared pen, and touch input uses one front and one rear TOUCH 2.0 port.
How does it differ from the 75-inch model?
The 86-inch uses an IPS panel with 8 ms response time and 1,200:1 contrast, while the 75-inch uses VA with 6.5 ms and 5,500:1. Both share 4K resolution, 40-point infrared touch and 2 × 20 W speakers, and the 86-inch draws 203 W typical against 167 W.
Can I buy the Clevertouch Pro Series 3 Lite 86 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
