ClevertouchInteractive Flat PanelsSKU Pro Series 3 Lite 75"

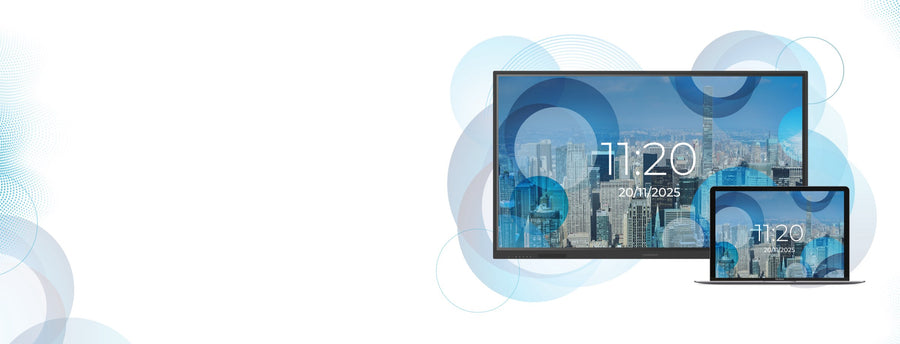

Clevertouch Pro Series 3 Lite 75-inch 4K Interactive Flat Panel
The Clevertouch Pro Series 3 Lite 75-inch is a 4K UHD (3840 x 2160) interactive flat panel with 40-point infrared touch, 1.07 billion colours and 2 × 20 W speakers. It suits classrooms, meeting rooms and training spaces where a laptop or PC runs the screen. Procure.ae supplies it in the UAE.
The panel has a 16:9 aspect ratio, 3840 x 2160 resolution and a 60 Hz refresh rate, with a VA direct LED backlight. Typical brightness is 350 nits, with a 300 nits minimum, and the contrast ratio is 5,500:1 with a 6.5 ms response time and a 178° viewing angle. Infrared touch supports 40 touch points at ±1.5 mm accuracy and uses a passive infrared pen. Colour depth is 10-bit, giving 1.07 billion colours, and the NTSC colour gamut is 72%. The manufacturer states an operation time of 7 days × 16 hours.
Procure.ae supplies the Pro Series 3 Lite 75 for schools, offices and government buildings across the UAE, with delivery and installation. The panel accepts an OPS module, with maximum power of 396 W when one is inserted, and it is compatible with Windows, Android, Linux, Mac OS X and Chrome. For room control, it has RS232 at 9600 baud, and its RJ45 in and out ports run at 10/100/1000 Mbps. The VESA mount is 800 x 400 mm and the net weight is 41.66 kg.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits (typical), 300 nits (minimum)
Touch Technology
Infrared
- 4K UHD Display
- 40-Point Infrared Touch
- Colour Depth
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD Display
3840 x 2160 resolution at 60 Hz on a 16:9 VA panel.
02
40-Point Infrared Touch
40 touch points with ±1.5 mm touch accuracy.
03
Colour Depth
10-bit colour with 1.07 billion colours and 72% NTSC gamut.
04
Direct LED Backlight
350 nits typical brightness and 5,500:1 contrast ratio.
05
Speakers
2 × 20 W speakers with 2.0 channel audio.
06
OPS Slot
supports an OPS module, with 396 W maximum power when inserted.
07
Multi-Input Connectivity
three HDMI In ports, USB-C IN with 65 W charging, and RJ45 in and out.
08
RS232 Control
RS232 serial port at 9600 baud for room control systems.
Specifications
34 specificationsGeneral
CompatibilityWindows 10, Windows 8, Windows 7, Windows XP, Android, Linux, Mac OS X, Chrome
Key Features4K UHD (3840 x 2160), 40-point infrared touch, 1.07 billion colours (10-bit), 60 Hz refresh rate, 2 × 20 W speakers, OPS slot, RS232 control, RJ45 network
ModelPro Series 3 Lite 75"
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
BacklightDirect LED
Brightness350 nits (typical), 300 nits (minimum)
Color Depth10-bit (1.07 billion colours)
Color Gamut72% NTSC
Contrast Ratio5,500:1
Panel TechnologyVA
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size75 inch
Touch Accuracy±1.5 mm
Touch Points40-point touch
Touch TechnologyInfrared
Viewing Angle178°
Performance
Storage Conditions-20 to 60 °C, 10% to 90% RH
Audio
Channels2.0
Speaker Output2 × 20 W
Connectivity
Ethernet10/100/1000 Mbps (RJ45 in and out)
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotYes (maximum 396 W with OPS inserted)
PortsHDMI In × 3, USB 3.2 × 4, USB 2.0 × 1, USB-C IN × 1 (65 W charging), TOUCH 2.0 × 2, Mic In × 1, Audio Out 3.5 mm × 1, RS232 × 1, RJ45 In × 1, RJ45 Out × 1
Serial PortRS232, 9600 baud
Power
Power Consumption167 W (typical), 396 W (maximum)
Physical
Dimensions1712 x 1022 x 99 mm
Duty Cycle7 days × 16 hours
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
VESA Mount800 x 400 mm
Weight41.66 kg
Downloads
Manufacturer documents for the Clevertouch Pro Series 3 Lite 75-inch 4K Interactive Flat Panel — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the Clevertouch Pro Series 3 Lite 75 support 4K content?
Yes. The panel has a 3840 x 2160 (4K UHD) resolution at 60 Hz, and the HDMI In ports support up to 4K at 60 Hz. All three HDMI In ports support CEC, and one of them also supports ARC.
Can the Pro Series 3 Lite 75 be wall mounted?
Yes. It has an 800 x 400 mm VESA mount and a net weight of 41.66 kg, so the wall bracket must be rated for that load. Procure.ae can advise on mounting and arrange installation across the UAE.
Do I need a computer to run the Pro Series 3 Lite 75?
The manufacturer describes a connected laptop or PC as running the screen, which gives full control over software, apps and workflows. The specifications list compatibility with Windows, Android, Linux, Mac OS X and Chrome, so check the connected computer before installation.
What touch technology does it use?
It uses infrared touch recognition with 40 touch points and ±1.5 mm accuracy. Writing and annotation use the passive infrared pen, and touch input uses one front and one rear TOUCH 2.0 port.
Does it integrate with room control systems?
Yes. It has an RS232 serial port at 9600 baud and RJ45 network ports rated 10/100/1000 Mbps for connecting to control and network systems. Procure.ae can advise on integration for your room.
Can I buy the Clevertouch Pro Series 3 Lite 75 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
