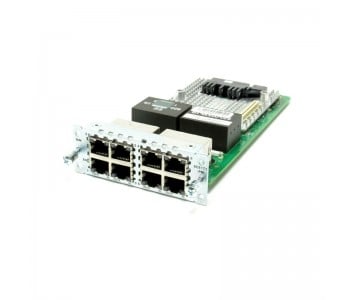

Cisco NIM-8CE1T1-PRI 8-Port Module For NIM Interface ISR Router

PRODUCT OVERVIEW

The Cisco® Channelized T1/E1 and ISDN PRI High-Speed WAN Module NM-8CE1T1-PRI combine multiple T1/E1 WAN connectivity-ChannelizedT1/E1 and ISDN Primary Rate Interface (PRI), in the same card. Applications include fractional or full T1/E1 WAN connectivity, ISDN PRI for primary WAN link or WAN backup, and dial access aggregation.

Flexible WAN connectivity options, together with integrated routing, security, voice, and wireless capabilities, the Cisco Integrated Services Routers can meet every need of enterprise-class branch offices today and in the future.
Three versions are available, 1- and 2-port cards in a single-wide high-speed WAN interface card (HWIC), and a 8-port cards in a single-wide network module. The different versions help enable customers to deploy different port densities according to the needs of individual offices.

The modules can be used in T1 or E1 networks, selectable by software configuration. The integrated channel service unit/data service unit (CSU/DSU) function allows customers to consolidate customer premises equipment (CPE). The modules support balanced and unbalanced E1 connectivity and conform to the G.703 and G.704 standards for unframed and framed E1 modes. The Channelized T1/E1 and ISDN PRI modules work with the digital modem module in the Cisco 2800, 2900, 3800, and 3900 Series Integrated Services Routers to provide V.90- and V.92-
compliant digital dial access aggregation.
