ViewSonicDigital SignageSKU CDE9830-W1

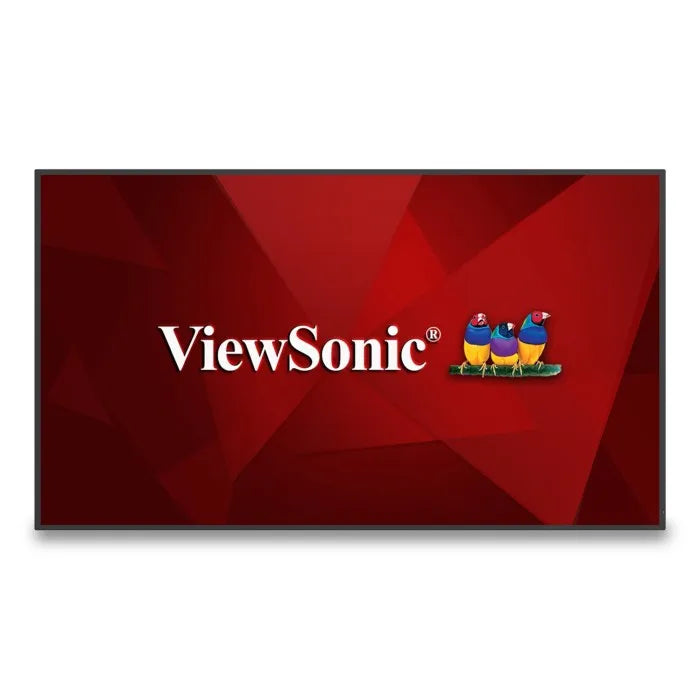

Viewsonic CDE9830-W1 - 98" Signage Display – CDE9830-W1
The Viewsonic CDE9830-W1 - 98" Signage Display – CDE9830-W1 is a digital signage available in the UAE from Procure.ae.
The Viewsonic CDE9830-W1 is a premium 98-inch signage display designed to deliver exceptional visual performance and seamless digital signage capabilities for commercial environments. With its expansive 4K UHD resolution, this large-format display ensures content is presented with stunning clarity and vibrant colors, making it ideal for conference rooms, corporate lobbies, and educational institutions.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
98 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Weight
69.4 kg
- 98-inch 4K UHD Display
- High Brightness
- Seamless Wireless Casting
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
98-inch 4K UHD Display
Delivers breathtaking image quality and expansive viewing area for impactful presentations.
02
High Brightness
Ensures vivid visuals and clear readability in any lighting condition, including brightly lit spaces.
03
Seamless Wireless Casting
Supports direct wireless screen sharing from laptops, smartphones, and tablets for easy collaboration.
04
Multiple Connectivity Options
Features HDMI, USB, LAN, and VGA ports for versatile device integration.
05
Built-in Speakers
Integrated high-quality audio system for a complete multimedia experience.
06
24/7 Operation
Engineered for continuous use, perfect for demanding commercial and public environments.
07
Remote Device Management
Enables easy control, monitoring, and content updates from any location.
08
Durable Commercial Design
Robust construction ensures long-lasting performance in high-traffic areas.
Specifications
40 specificationsGeneral
Key FeaturesAll-in-one solution includes ViewBoard display and Wi-Fi adapter, Powerful ViewSonic Embedded Signage Platform (VESP), Integrated RJ45 and USB Wi-Fi, ViewBoard Cast content sharing software, myViewBoard Display app for remote screen sharing
What's in the BoxCDE9830 Wireless Presentation Display, Wi-Fi adapter, Remote control with batteries, Quick Start Guide, Power cable, HDMI Cable, USB-C cable, Wall Mount, Screws and RS232 cable
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size25 mm (0.98 in)
Brightness500 nits
Color Depth10-bit (1.07 billion colours)
Contrast Ratio1,200:1 (typ.), 5,000:1 (DCR)
OrientationLandscape & Portrait
Panel TechnologyADS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size98 inch
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemAndroid 11
ProcessorAmlogic T982
RAM4 GB
Storage32 GB
Audio
Audio OutSPDIF out × 1
Speaker Output2 × 10 W
Connectivity
BluetoothBuilt-in
EthernetRJ45 × 1
HDMI InputsHDMI In × 3
HDMI OutputsHDMI Out × 1
Input Voltage100–240 V AC
Serial PortRS-232 × 1
USB PortsUSB 3.0 × 1, USB 2.0 × 1
USB-C PortsUSB-C × 1
Wi-FiBuilt-in
Power
Power Consumption190 W (typical)
Standby Power≤ 0.5 W
Physical
Dimensions2212.9 x 1268.4 x 79 mm
Duty Cycle24/7
Operating Humidity10% to 90% RH
Operating Temperature0°C to 40°C
Shipping Dimensions2360 x 1425 x 280 mm
Surface ProtectionAnti-glare, 3H hardness, 25% haze
VESA Mount800 x 600 mm
Weight69.4 kg
Compliance
Warranty3 years (parts, labor and backlight)
Downloads
Manufacturer documents for the Viewsonic CDE9830-W1 - 98" Signage Display – CDE9830-W1 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the ViewSonic digital signage used for?
The Viewsonic CDE9830-W1 is a premium 98-inch signage display designed to deliver exceptional visual performance and seamless digital signage capabilities for commercial environments.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
What is this display used for?
It's a commercial digital signage display — ideal for menus, advertising, wayfinding, and information screens in retail, offices, and public spaces.
Can it run continuously for long hours?
Yes — commercial signage panels like this are built for extended daily operation; ask us for the exact operating-hours rating on this model.
How is the on-screen content managed?
