ViewSonicDigital SignageSKU CDE7530-W1

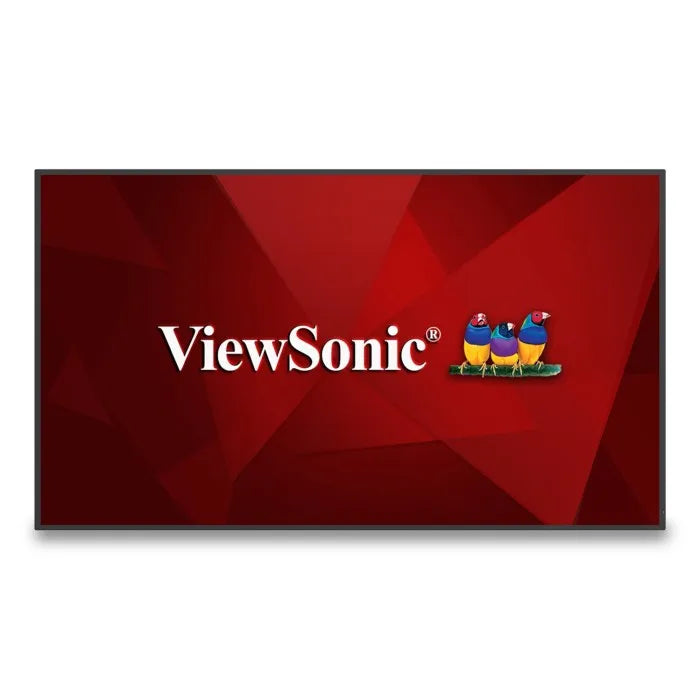

Viewsonic CDE7530-W1 - 75" Signage Display – CDE7530-W1
The Viewsonic CDE7530-W1 - 75" Signage Display – CDE7530-W1 is a digital signage available in the UAE from Procure.ae.
The Viewsonic CDE7530-W1 is a cutting-edge 75-inch signage display designed to deliver impressive 4K UHD visuals and seamless digital signage solutions for businesses, schools, and public spaces. With its expansive screen, the CDE7530-W1 transforms any environment into an eye-catching multimedia hub, supporting vibrant dynamic content and engaging presentations. This commercial display offers built-in wireless connectivity, ensuring easy content sharing and streamlined network management.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Weight
34.65 kg
- 75-Inch 4K UHD Display
- 24/7 Operation
- Wireless Content Sharing
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
75-Inch 4K UHD Display
Delivers stunning clarity and vibrant colors for impactful presentations and signage.
02
24/7 Operation
Engineered for continuous use, ensuring reliable performance in demanding environments.
03
Wireless Content Sharing
Easily share media and presentations from any device for hassle-free collaboration.
04
Integrated Speakers
Built-in audio delivers clear sound, eliminating the need for external speakers.
05
Remote Management
Control and manage multiple displays remotely with advanced network tools.
06
Ultra-Slim Profile
Modern, space-saving design fits seamlessly into any professional setting.
07
Multi-Platform Compatibility
Supports a variety of operating systems and media formats for maximum versatility.
08
Easy Installation
Flexible mounting options simplify setup in conference rooms, lobbies, or classrooms.
Specifications
40 specificationsGeneral
Key FeaturesAll-in-one solution includes ViewBoard display and Wi-Fi adapter, Powerful ViewSonic Embedded Signage Platform (VESP), Integrated RJ45 and USB Wi-Fi, ViewBoard Cast content sharing software, myViewBoard Display app for remote screen sharing
What's in the BoxWireless Presentation Display, Wi-Fi adapter, Remote control with batteries, Quick Start Guide, Power cable, HDMI Cable, USB-C cable, Wall Mount, Screws, RS232 cable
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size14.7 mm
Brightness500 nits
Color Depth10-bit (1.07 billion colours)
Contrast Ratio1,200:1 (typ.), 5,000:1 (DCR)
OrientationLandscape & Portrait
Panel TechnologyADS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemAndroid 11
ProcessorAmlogic T982
RAM4 GB
Storage32 GB
Audio
Audio OutSPDIF out × 1, HDMI ARC audio out × 1
Speaker Output2 × 10 W
Connectivity
BluetoothBuilt-in
EthernetRJ45 × 1
HDMI InputsHDMI In × 3
HDMI OutputsHDMI Out × 1
Input Voltage100–240 V AC
Serial PortRS-232 × 1
USB PortsUSB 3.0 × 1, USB 2.0 × 1
USB-C PortsUSB-C × 1
Wi-FiBuilt-in
Power
Power Consumption126 W (typical)
Standby Power≤ 0.5 W
Physical
Dimensions1685.6 x 963.7 x 81.6 mm
Duty Cycle24/7
Operating Humidity10% to 90% RH
Operating Temperature0°C to 40°C
Shipping Dimensions1863 x 1090 x 225 mm
Surface ProtectionAnti-glare, 3H hardness, 25% haze
VESA Mount800 x 600 mm
Weight34.65 kg
Compliance
Warranty3 years (parts, labor and backlight)
Downloads
Manufacturer documents for the Viewsonic CDE7530-W1 - 75" Signage Display – CDE7530-W1 — datasheets, manuals, drawings and certificates.
