SHARP 80" Class 4K UHD Commercial TFT LCD Monitor PN-H801
- SKU: PN-H801
Actual Stock & Price Can Be Confirmed After Placing the Order.
OVERVIEW PN-H801 The 80-inch PN-H801 commands attention. This mighty 4K display features an LED backlight with an expanded colour gamut that supports a wide range of colours. Whatever the indoor venue, this dynamic display works tirelessly to reach your target audience, conveying your message... See More
OVERVIEW
PN-H801
The 80-inch PN-H801 commands attention. This mighty 4K display features an LED backlight with an expanded colour gamut that supports a wide range of colours. Whatever the indoor venue, this dynamic display works tirelessly to reach your target audience, conveying your message with larger-than-life realism and incredibly precise expression of colour and detail.
Stunning 4K Image Quality

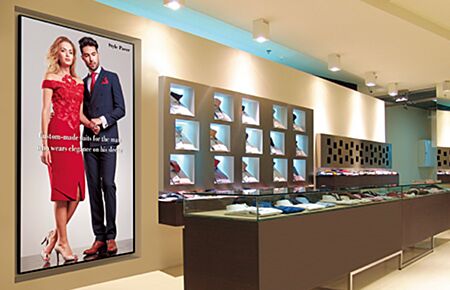

The PN-H801 is a communication platform with a huge presence. Sized for eye-grabbing impact, this 80-inch-class 4K Ultra HD monitor boasts an impressive level of image quality that allows it to showcase all manner of content, from detailed text to beautifully textured graphics. With four times the resolution of full HD, the PN-H801 delivers all the detail, depth, and clarity that the content creator intended. Excelling in any indoor venue—for example, in a retail setting, meeting room, or control centre—this is one monitor that supports precise communications with any audience.
4K Ultra HD Reveals the Finest Details
Despite the massive scale of the PN-H801on-screen content is rendered in superbly detailed ultra-high definition. With movies and still images displayed at up to 4K Ultra HD, you get to see subtle textures and fine details not visible at full HD resolution. The high pixel count means there is no need to worry about jaggies, even on such a large screen.
USB Media Player
The PN-H801 can be set up to play slideshows of promotional or informational content without the need for a PC. A built-in USB media player allows playback of 4K Ultra HD photos*¹, full HD videos, and music stored on a connected USB memory device*². For added security, the PN-H801 comes with a USB flash drive cover to prevent theft of the data storage device. Still images can also be saved to the display’s internal memory and played from there, without using USB media. The media player’s auto play function enables images to be played automatically.
24/7 Operation
Designed for around-the-clock use and rugged operating conditions, the PN-H801 is a reliable and commanding presence in demanding 24-hour professional applications. Even after long hours of continuous operation*, this monitor delivers a sharp, clear picture.
SPECIFICATIONS
| Display | Size | 80-inch-class (204.4 cm diagonal) TFT LCD |
| Max. Resolution | 3,840 x 2,160 pixels | |
| Installation | Landscape / Portrait | |
| Max. Brightness*¹*² | 440 cd/m2 | |
| Pixel Pitch (H x V) | 0.464 x 0.464 mm | |
| Contrast Ratio | 4,000 : 1 | |
| Viewing Angle (H/V) | 176°/176° (CR≥10) | |
| Backlight | LED, full-array | |
| Response Time | 6 ms (grey to grey, avg.) | |
| Active Screen Area | 1,781.76 x 1002.24 mm (70 1/8″ x 39 7/16″) | |

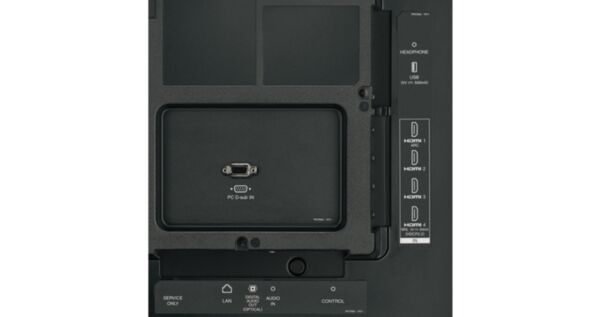

| Connectivity | Input Terminals*³ | HDMI x 4: (HDCP1.4 compatible: HDMI 1 – HDMI 3), (HDCP2.2 compatible: HDMI 4), (ARC compatible: HDMI 1), (MHL compatible: HDMI 4),
Mini D-sub 15-pin x 1, RS-232C x 1*⁴*⁵, USB x 1 (photo, video, music)*⁶, 3.5 mm-diameter mini stereo jack x 1 |
| Output Terminals*³ | Digital audio output (optical) x 1, 3.5 mm-diameter mini stereo jack x 1 | |
| General | Speaker Output | 10 W + 10 W |
| Power | Power Supply | 100V – 240V AC, 50/60 Hz |
| Power Consumption | 490 W | |
| Operation Condition | Operating Temperature | 0°C to 40°C |
| Operating Humidity | 20% to 80% RH (no condensation) | |
| Dimension (W x D x H) (approx.) (Display only) | 1,816 x 114 x 1,045 mm
(71 1/2″ x 4 1/2″ x 41 1/8″) |
|
| Weight (approx.) | 54.0 kg (119.05 lbs) | |
