SHARP 24/7 Professional LCD FULL HD 40" PN-M401
- SKU: PN-M401
Actual Stock & Price Can Be Confirmed After Placing the Order.
OVERVIEW PN-M401 The reliable, standalone PN-M401 is powered by a built-in SoC (System on a Chip) controller to deliver out-of-the box 40-inch digital signage solutions even without external devices such as PCs. The PN-M401 is durable enough to display the content with continuous 24/7... See More
OVERVIEW
PN-M401

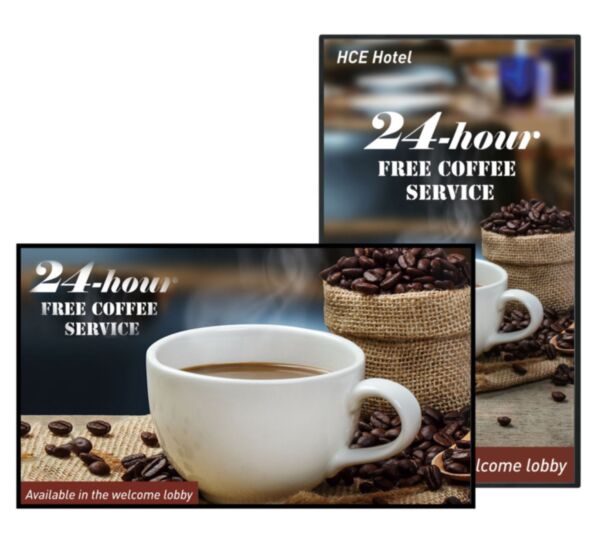

The reliable, standalone PN-M401 is powered by a built-in SoC (System on a Chip) controller to deliver out-of-the box 40-inch digital signage solutions even without external devices such as PCs. The PN-M401 is durable enough to display the content with continuous 24/7 operation as well as offering the flexibility in settings to support a wide range of signage requirements. This model offers versatile signage solution including built-in media player, HTML5 browser, and original content distribution software. SHARP e-Signage S software provides total support: content creation, scheduling, distribution, and management, with easy handling. The PN-M401 offers solutions for a wide range of digital signage applications and usage styles.
Built-in SoC (System on a Chip)
The PN-M401 has a powerful integrated SoC controller driven by the Arm® Cortex®-A17 quad core processor (max. 1.8 GHz) with 2 GB memory and 8 GB storage. It integrates Android™ OS (4.4) and comes pre-installed with several types of signage support software. This means theM401 is ready to display signage right out of the box, even without a PC.
Expandability
The PN-M401 features excellent image quality and is designed for flexibility in a variety of settings. It comes with an Intel® Mini OPS-compatible expansion slot that gives you the added choice of expandability: an HDBaseT™ receiver board that supports various types of media and control signals or a wireless board for easy wireless connection with multiple devices.
Flexibility

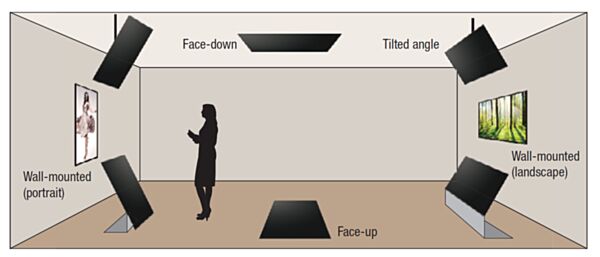

Whether in a landscape or portrait orientation, the PN-M401 can be installed face-up, face-down, or tilted forward or backward at an angle of up to 90 degrees. Designed for easy hanging installation, it can be suspended from four corners of the rear housing with wires. Such flexibility gives you more freedom to meet today’s demanding signage needs.
24/7 Operation
Built solid and durable, the PN-M401 is ideal for use in 24-hour stores and other demanding professional applications that require around-the-clock operation, seven days a week.
SPECIFICATIONS
| Display | Size | 40-inch-class (39 1/2-inch [100.33 cm] diagonal) TFT LCD |
| Max. Resolution | 1,920 x 1,080 pixels | |
| Installation | Landscape / Portrait / Face-up / Face-down | |
| Brightness*1 | 450 cd/m2 | |
| Pixel Pitch (H x V) | 0.45735 x 0.4494 mm | |
| Contrast Ratio | 5,000 : 1 | |
| Viewing Angle (H/V) | 178°/178° (CR ≥ 10) | |
| Backlight | LED, Edge lit | |
| Response Time | 9.5 ms (grey to grey, avg.) | |
| Active Screen Area | 878.1 x 485.4 mm (34 9/16″ x 19 1/8″) | |
| Connectivity | Input Terminal | DisplayPort x 1, Mini D-sub 15-pin x 1, HDMI x 2, RS-232C x 1, 3.5 mm-diameter mini stereo jack x 1 |
| Output Terminal | DisplayPort x 1, RS-232C x 1, 3.5 mm-diameter mini stereo jack x 1 | |
| Power | Power Supply | 100 V – 240 V AC, 50/60 Hz |
| Power Consumption | 92W | |
| Operation Condition | Operating Temperature | 0°C to 40°C |
| Operating Humidity | 20% to 80% RH (no condensation) | |
| Dimension (W x D x H) (approx.) | 902 x 66 x 513 mm (35 1/2″ x 2 5/8″ x 20 3/16″) | |
| Expansion Slot | Supports HDBaseT Receiver Board (Optional) | |
| Weight (approx.) | 15 kg (34 lbs) | |
No datasheet available.
