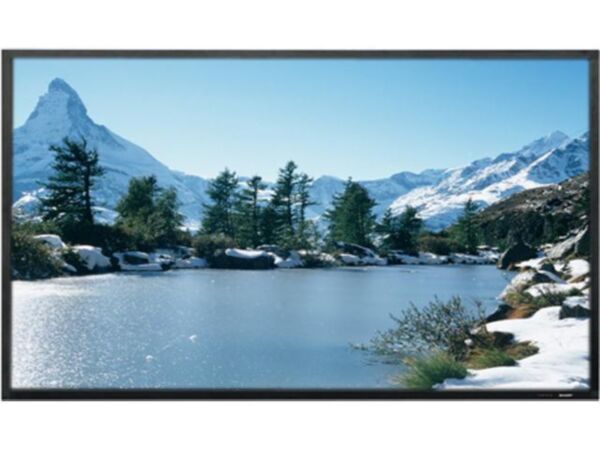

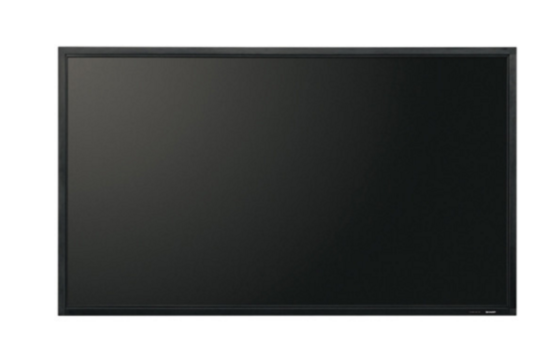

SHARP 24/7 Operation Class Full HD Commercial LCD Monitor 80" Signage PN-E803
- SKU: PN-E803
Actual Stock & Price Can Be Confirmed After Placing the Order.
OVERVIEW PN-E803 Sharp’s sleek PN-E803 monitors offer a sophisticated way to convey your message. They combine full-HD image quality and improved energy efficiency with professional-use durability and round-the-clock dependability. Superb Image Quality PN-E803 LCD panel incorporates Sharp’s UV2A technology, which prevents light leakage and... See More
OVERVIEW
PN-E803
Sharp’s sleek PN-E803 monitors offer a sophisticated way to convey your message. They combine full-HD image quality and improved energy efficiency with professional-use durability and round-the-clock dependability.
Superb Image Quality
PN-E803 LCD panel incorporates Sharp’s UV2A technology, which prevents light leakage and ensures highly efficient use of light from the backlight.
Thin, Lightweight Design
Streamlined for a pleasing appearance and minimal protruding parts, this professional LCD monitor boast exceptionally thin profiles. At its thickest point, the PN-E803 measure just 39.4 mm (1 9/16″).
24/7 Operation
Built solid, the PN-E803 monitor is ideal for use in 24-hour operations and in other demanding professional applications that require around-the-clock operation seven days a week.
SPECIFICATIONS
| Display | Size | 80-inch widescreen (203.2 cm diagonal) UV2LCD |
| Max. Resolution | 1,920 x 1,080 pixels | |

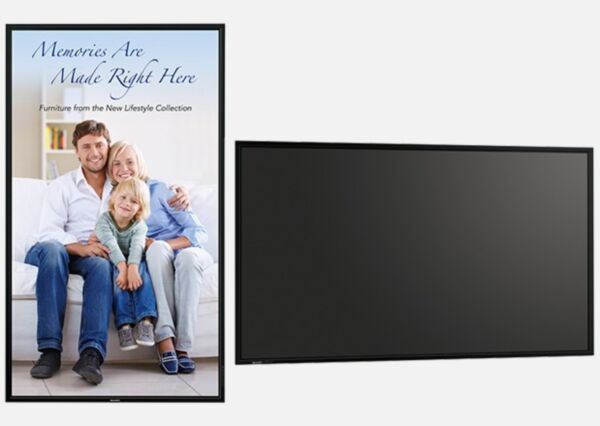

| Installation | Landscape / Portrait | |
| Brightness*¹ | 470 cd/m2 | |
| Pixel Pitch (H x V) | 0.923 x 0.923 mm | |
| Contrast Ratio | 5,000 : 1 | |
| Viewing Angle (H/V) | 176°/176° (CR ≥ 10) | |
| Backlight | LED, Full-array | |
| Response Time | 6 ms (grey to grey, avg.) | |
| Active Screen Area | 1,771.2 x 996.3 mm (69 3/4″ x 39 1/4″) | |
| Connectivity | Input Terminal*² | DisplayPort x 1, DVI-I x 1, Mini D-sub 15-pin x 1, HDMI x 23, 3.5 mm-diameter mini stereo jack x 2, RS-232C x 1 |
| Output Terminal*² | DisplayPort x 1 (supports video signals only), DVI-D x 1, 3.5 mm-diameter mini stereo jack x 1, RS-232C x 1 | |
| General | Speaker Output | 10 W + 10 W |
| Power | Power Supply | 100V – 240V AC, 50/60 Hz |
| Power Consumption | 280 W | |
| Operation Condition | Operating Temperature | 0°C to 40°C |
| Operating Humidity | 20% to 80% RH (no condensation) | |
| Dimension (W x D x H) (approx.; display only) | 1,850 x 96 x 1,072 mm (72 13/16″ x 3 3/4″ x 42 3/16″) |
|
| Weight (approx.) | 57 kg (125.7 lbs) | |
