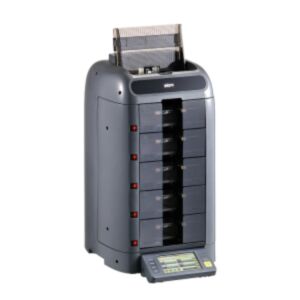

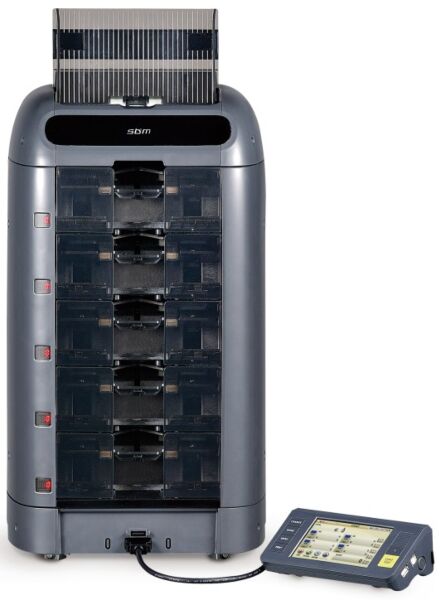

SB-5000 5-Pocket Sorter

DESCRIPTION

SB Series are the most intelligent and reliable Banknote Counting Machines which use Image Processing Technology to recognize banknotes and to discriminate between different denominations. SB-5000, one of the advanced SB Series, is the world’s smallest fitness sorter having 5 pockets. SB-5000 has various and useful functions and keeps up with growing customers’ demand from all over the world. With modern design, 5” TFT Color LCD and user-friendly interface, SB-5000 provides every operator with more comfortable and efficient working environment. 5 pockets allow operator to perform daily cash processing job and sort banknotes by quality, denomination and counterfeit without any interruption.

FEATURE

1) Fitness Sorting: Tape, Dog-ear, Soil, Tear, Hole, Graffiti, Stamp etc
2) Multiple Currencies Capability: Can be configured with up to 10 currencies
3) Various Operation Modes: Mixed / Single / Face / Orient / Count / (Issue / SRL / P-OCR)
4) Various Count Modes: Mixed / Single / Count / Face / Orient / Fitness
(Option: Issue / Serial No. Recognition & Comparison)
5) New Type of Stacker: Lift Type
6) Enhanced Sensors: CIS(Option: 2 CIS) / Magnetic/ UV / IR
Mechanical Roller Tape Detector
7) User Friendly: Resistive Touch Screen + Hard Key, Detachable 5"TFT Color LCD, Multi Language support

SPECIFICATION

1) Dimension: 317(W) X 335(D) X 555(H) mm
2) Weight (Net): Approx.27 Kg
3) Nos of Pockets: 5
4) Hopper Capacity: 700 notes
5) Stacker Capacity: 200 notes
6) Reject Capacity: 200 notes
7) Counting Speed: 700/ 1000 npm
8) Interface: 3 x RS-232C / USB A&B / (LAN)
